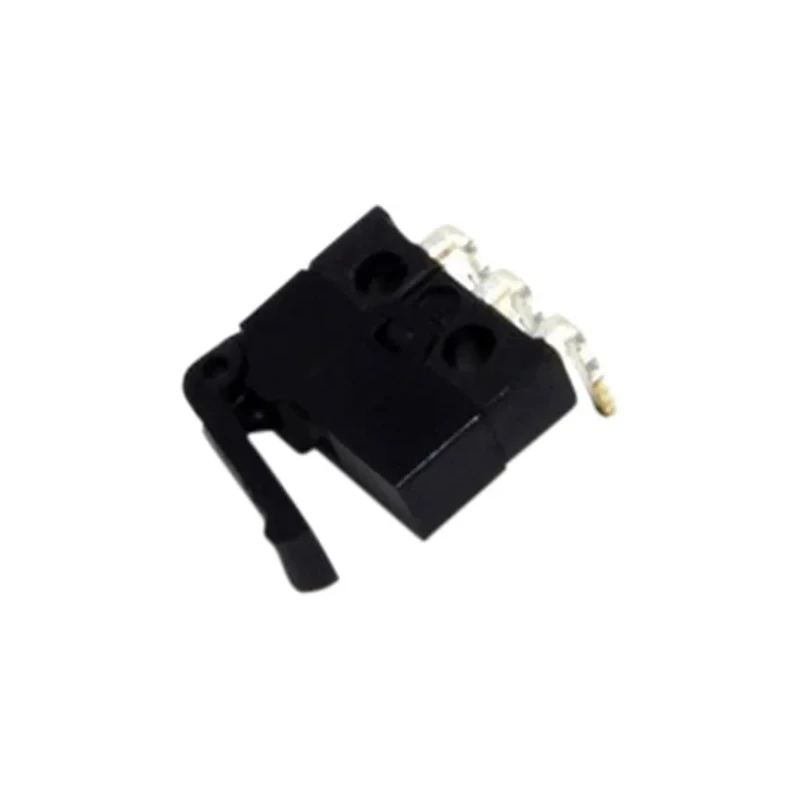

KNITTER-SWITCH Snap Micro Switch with PC Terminal, 500mA Contact Current, 30V AC, SPCO Configuration, DM-SSM 01 C L2
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | KNITTER-SWITCH |
| Model | DM-SSM 01 C L2 |
| Housing Material | Polybutylene Terephthalate |
| Series | DM-SSM |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPCO |
| Actuator Type | Snap |
| Minimum Operating Temperature | -20°C |
| Terminal type | PC Terminal |
| Standards/Approvals | RoHS |
| Switch Contact Current | 500mA |
| Operating Force | 50g |
| Mechanical Life | 300000Operations |
| Contact AC Voltage | 30V ac |
| Microswitch Type | Ultra Miniature |
| Footprint/pin spacing | 2.54mm between pins and 5.08mm between rows |
Key Features
- Features an ultra miniature snap actuator for precise switching.
- Utilizes a SPCO contact configuration for on-mom switching functionality.
- Equipped with silver plated contacts and terminals for improved conductivity.
- PC terminal type allows for secure PCB mounting with footprint spacing of 2.54mm between pins and 5.08mm between rows.
- Rated for 300,000 mechanical operations ensuring long-term durability.
- Operates reliably within a temperature range of -20°C to 70°C.
- Constructed with Polybutylene Terephthalate housing material for robust insulation and durability.
- Operates with a low actuation force of 50 grams for sensitive applications.
Product Description
KNITTER-SWITCH DM-SSM 01 C L2 Snap Micro Switch is a precision ultra miniature switch designed for a wide range of electronics and electrical applications. It features a snap actuator type that ensures reliable and fast switching actions under a contact current rating of 500mA and contact AC voltage of 30V AC. The SPCO contact configuration provides single-pole, changeover functionality suited for on-mom control operations.
The switch housing is made of durable Polybutylene Terephthalate material providing excellent insulation and mechanical strength. The device is engineered to withstand a mechanical life of 300,000 operations, ensuring longevity and dependable performance in demanding industrial, automation, and electronic circuit applications.
Silver plated terminals and contacts enhance electrical conductivity and corrosion resistance, while the PC terminal type enables easy and secure mounting on printed circuit boards. The pin spacing is precisely 2.54 mm between individual pins and 5.08 mm between rows, standard for compact PCB footprints.
Operating over a temperature range of -20°C to 70°C with an actuation force of 50 grams, this micro switch is suitable for use in environmental or commercial electrical equipment that require sensitive and reliable switch actuation. It adheres to RoHS compliance, ensuring it meets environmental directives for hazardous substances.
Ultra miniature snap actuator for precise and reliable switching. SPCO contact configuration suited for on-mom switching applications. Silver plated terminals and contacts enhance performance and durability. PC terminal type with standardized PCB footprint ensures easy installation.
300,000 mechanical life operations supports long-term use. Wide operating temperature range from -20°C to 70°C. Polybutylene Terephthalate housing for robust insulation. Low operating force of 50 grams for sensitive actuation.
RoHS compliant for environmental safety.
This Micro Switch is ideal for industrial automation, electronic devices, control panels, and other applications needing dependable snap action switches. Explore the full KNITTER-SWITCH catalog for complementary accessories and alternative switch configurations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating of this micro switch is 500mA.
This model can operate at a maximum temperature of 70°C.
It utilizes an SPCO (Single-Pole Changeover) contact configuration.
The actuation force required is 50 grams, making it suitable for sensitive applications.
The mechanical life rating is 300,000 operations, ensuring long-term use.
The housing is made of Polybutylene Terephthalate, providing good insulation and mechanical strength.
The footprint spacing is 2.54mm between pins and 5.08mm between rows.
Yes, this micro switch is RoHS compliant, adhering to environmental directives for hazardous substances.
The minimum operating temperature for this switch is -20°C.
This micro switch is suitable for industrial automation, electronic devices, and control panels requiring reliable snap action.
It features a snap actuator type for precise and reliable switching actions.
It is designed with a PC terminal type that allows for secure mounting on printed circuit boards.
