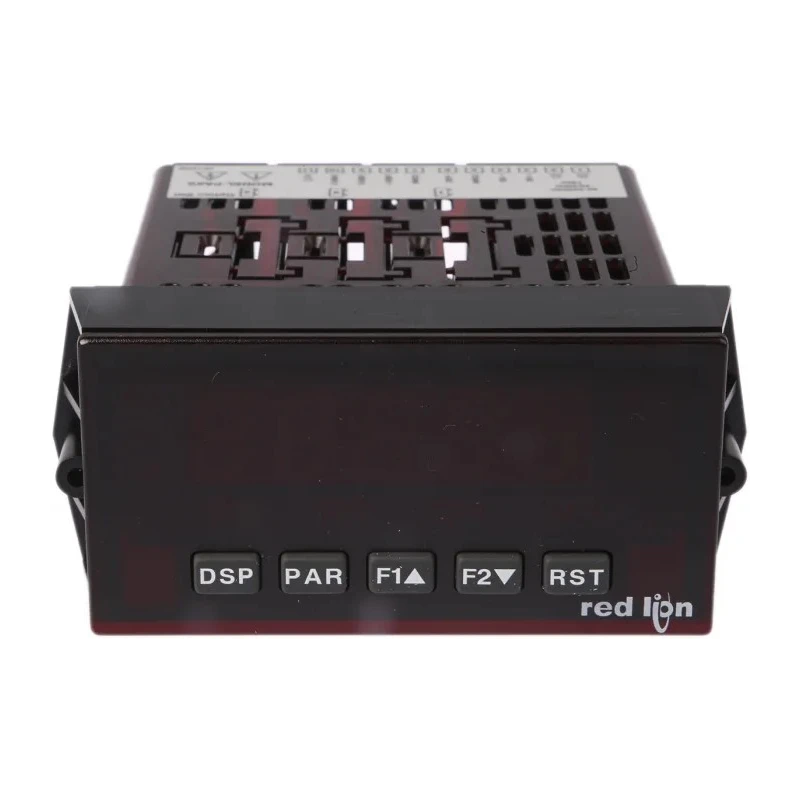

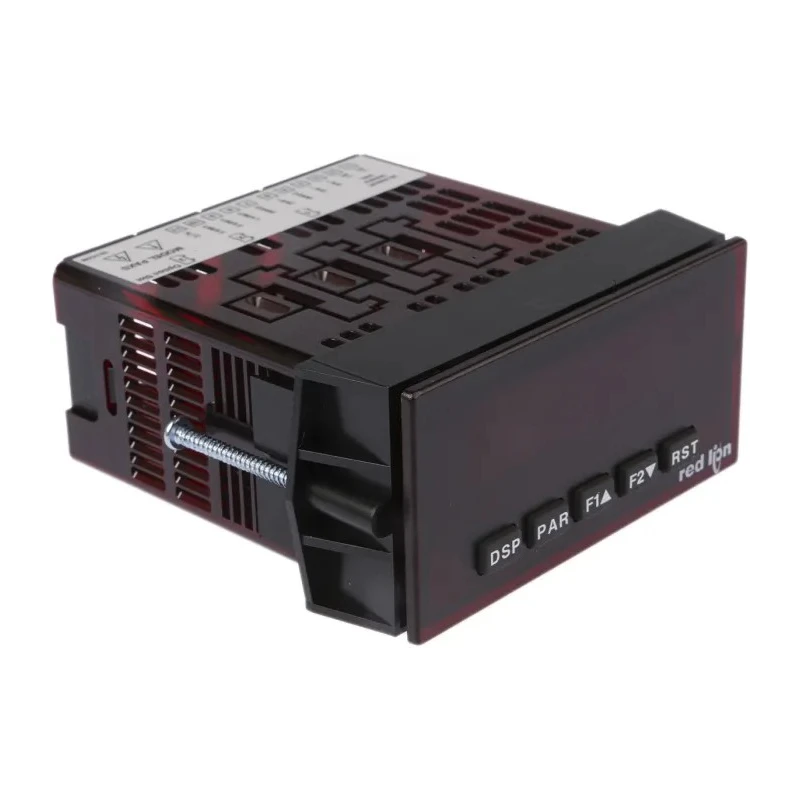

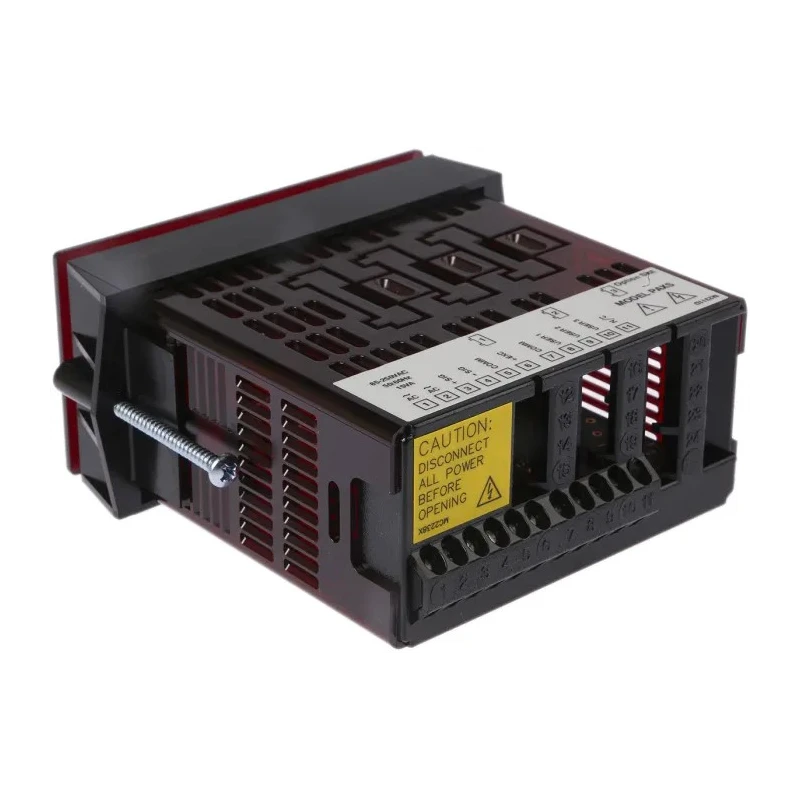

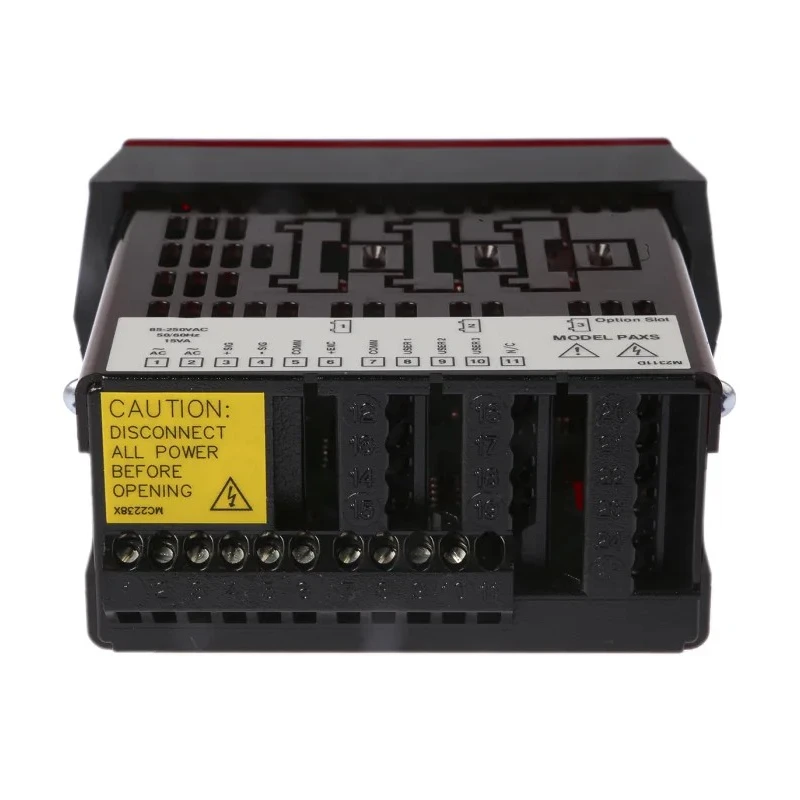

Red Lion Digital Panel Multifunction Meter for Strain, Voltage, Temperature, Current, LED Display, 45 mm x 92 mm PAXS0000
Specifications
| Country of Origin | United States |
|---|---|
| Display Type | LED |
| Brand | Red Lion |
| Model | PAXS0000 |
| Depth | 49.53mm |
| Series | PAX |
| Maximum Operating Temperature | 50°C |
| Meter Type | Electronic |
| Number Of Digits | 5 |
| Minimum Operating Temperature | 0°C |
| Digit height | 14.22mm |
| Standards/Approvals | CE, RoHS |
| Properties Measured | Strain, Voltage, Temperature, Current |
| Cutout Height | 45mm |
| Cutout Width | 92mm |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Minimum Measurement | -19999 |
Key Features
- Features a 5-digit, 14.2 mm red sunlight readable LED display for clear readings.
- Supports measurements of strain gauge, voltage, temperature, and current inputs.
- Operating temperature range from -10°C to 50°C ensures reliability in diverse environments.
- Includes programmable function keys and user inputs for versatile control.
- Equipped with MAX and MIN reading memory and a programmable capture time to prevent false readings.
- Optional plug-in output cards offer alarms, communications, and retransmitted analogue outputs.
- NEMA 4X and IP65 rated sealed front bezel protects against dust and water ingress.
- Designed for industrial applications including process control, automation, and HVAC monitoring.
Product Description
Red Lion PAXS0000 is a digital panel multifunction meter designed for precise measurement of strain, voltage, temperature, and current in industrial applications. Featuring a 45 mm by 92 mm cutout size and a 5-digit, 14.22 mm high LED display, it delivers sunlight-readable, adjustable intensity display suited for bright light environments.
This electronic meter supports a broad operating temperature from -10°C up to 50°C, making it reliable for varied industrial and commercial settings. Its advanced features include a MAX and MIN reading memory with a programmable capture time, allowing avoidance of inaccurate readings during start-up or unusual process events.
Red Lion PAXS0000 offers flexible configuration through optional plug-in output cards that enable alarm outputs, communication buses, and retransmitted analogue signals suitable for integration with existing control systems. The unit's front bezel is sealed to meet NEMA 4X and IP65 standards, ensuring durability and resistance to dust and water.
The meter is ideal for applications in industrial automation, process control, manufacturing, HVAC, and laboratory environments where high reliability and accuracy are required. It includes user-programmable keys, a 9-digit totalizer with batching capabilities, and optional custom unit overlays with backlight for tailored use cases.
5-digit, 14.2 mm height red LED sunlight readable display. Measures strain gauge, voltage, temperature, and current inputs. Operating temperature from -10°C to 50°C. NEMA 4X, IP65 rated sealed front bezel. Programmable function keys and user inputs.
MAX/MIN reading memory with capture time. Optional plug-in output cards for alarms and communications. Includes Crimson® programming software.
Manufactured in the United States, the PAXS0000 series complies with CE and RoHS standards, is cULus recognized, and meets ANSI/ESD and BS EN certifications for electrostatic discharge protection and product safety. It is a trusted solution for reliable analog input panel metering in any industrial or commercial application.
Explore more products in the Multi-Function Panel Meter category at EnvMart for advanced industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PAXS0000 measures strain, voltage, temperature, and current with a minimum measurement of -19999.
This model operates within a temperature range from 0°C to 50°C.
It features a 5-digit display with a digit height of 14.22 mm.
The cutout dimensions required for installation are 45 mm in height and 92 mm in width.
It complies with CE, RoHS standards, and is recognized under cULus, ANSI/ESD S20.20, and BS EN 61340-5-1 for safety and electrostatic discharge protection.
It includes MAX and MIN reading memory with a programmable capture time to help avoid false readings during unusual process events.
Yes, it includes programmable function keys and user inputs for versatile control.
The PAXS0000 uses an LED display that is sunlight-readable and has adjustable intensity for bright light environments.
The front bezel is rated NEMA 4X and IP65, providing protection against dust and water ingress.
Optional plug-in output cards are available for alarms, communications, and retransmitted analogue outputs.
It is manufactured in the United States.
It is suitable for industrial automation, process control, manufacturing, HVAC, and laboratory environments.
