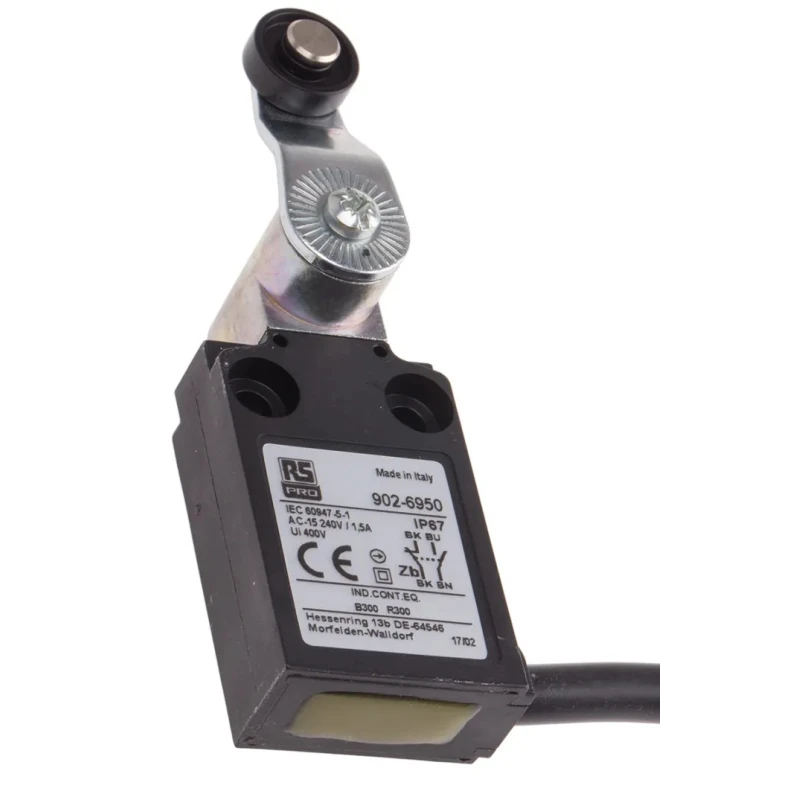

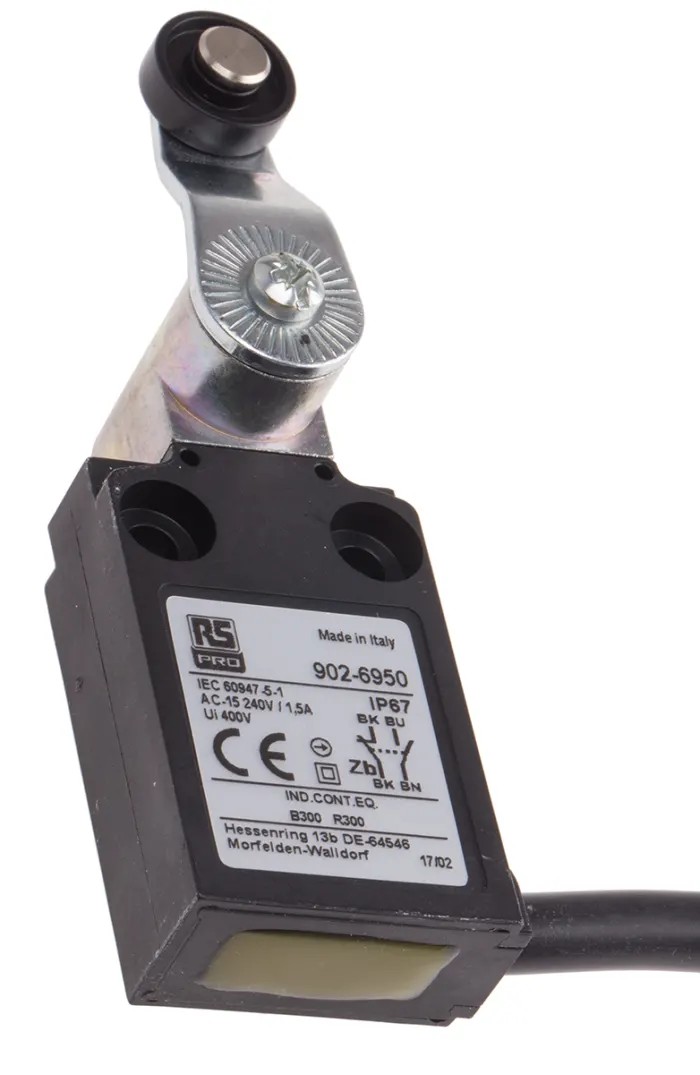

RS PRO Roller Lever Limit Switch, 1 NO/1 NC Contact, IP67, Thermoplastic Housing, 240V AC, 5A, Model IP67
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | RS PRO |
| Length | 31.5mm |
| Model | IP67 |
| Depth | 16mm |
| IP Rating | IP67 |
| Width | 92mm |
| Housing Material | Thermoplastic |
| Maximum Operating Temperature | 70°C |
| Mounting Orientation | Vertical |
| Contact Configuration | 1 NO/1 NC |
| Actuator Type | Roller Lever |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -25°C |
| Switching Current | 5A |
| Terminal type | Cable |
| Standards/Approvals | EN, IMQ, RoHS, RU, UL, CE, CSA, IEC |
| Operating Force | 0.08N |
| Mechanical Life | 10000000Operations |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 240V ac |
Key Features
- Features a roller lever actuator for precise mechanical operation.
- Cable connection type with snap-action contacts for rapid switching.
- Rated for switching currents up to 5A at 240V AC and 250V DC.
- Double-insulated thermoplastic housing ensures chemical and impact resistance.
- IP67 protection making it dust tight and suitable for water exposure up to 1 meter.
- Operates reliably in temperatures ranging from -25°C to 70°C.
- Mechanical life rated for 10 million operations for durability.
- Vertical mounting orientation and operating force of 0.08N for sensitive actuation.
Product Description
RS PRO IP67 Roller Lever Limit Switch offers an industrial-grade solution for automated systems requiring precise detection and control. This limit switch features a durable roller lever actuator that provides snap action with 1 NO and 1 NC contact configuration, ideal for counting or detecting passing objects without obstructing their movement.
The housing is constructed from double-insulated thermoplastic that resists chemical exposure and mechanical impacts, ensuring long-lasting service in tough environments. Rated IP67, this switch is both dust tight and waterproof up to one meter, suitable for harsh industrial conditions.
Compact dimensions of 31.5 mm length, 92 mm width, and 16 mm depth enable flexible installation in space-constrained assemblies. It supports a maximum switching current of 5 A and maximum voltages of 240 V AC and 250 V DC, making it versatile for various control circuits.
Designed for vertical mounting, the switch features a minimal operating force of 0.08 N, ensuring reliable activation with minimal mechanical effort. Its mechanical lifecycle of 10 million operations guarantees high reliability and longevity, suitable for continuous industrial use.
Applications span assembly lines, quality control systems, and automated machinery where fast, accurate actuation and environmental protection are mandatory.
Standards compliance includes CE, UL, CSA, IEC, and RoHS, ensuring safety and environmental conformity. The switch is supplied with a pre-wired polyvinyl chloride (PVC) cable for quick installation.
Roller lever actuator for precise actuation. Thermoplastic double-insulated housing for durability. IP67 rated for dust and water resistance. Switching current up to 5A and voltage ratings of 240V AC / 250V DC. Operating temperature range from -25°C to +70°C.
Mechanical life of 10 million operations ensuring long-term reliability. Vertical mounting and low actuation force of 0.08N for sensitive environments. Compliance with EN, IMQ, RoHS, RU, UL, CE, CSA, IEC standards. 1 NO and 1 NC snap-action contact configuration for versatile control.
Choose RS PRO limit switches for robust performance in industrial automation, manufacturing assembly, quality control, and other electro-mechanical applications. Explore the entire category of Limit Switches at EnvMart for varied actuator types and configurations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this model is 5A.
It is rated for a maximum voltage of 240V AC and 250V DC.
This unit has an IP67 rating, making it dust tight and waterproof up to one meter.
The operating temperature range is from -25°C to +70°C.
It features a roller lever actuator for precise mechanical operation.
The mechanical life is rated for 10 million operations.
This model is designed for vertical mounting orientation.
It has a contact configuration of 1 NO (Normally Open) and 1 NC (Normally Closed).
The housing is made from double-insulated thermoplastic, providing chemical and impact resistance.
The minimum operating force for actuation is 0.08N.
It complies with several standards including EN, IMQ, RoHS, RU, UL, CE, CSA, and IEC.
This unit uses a cable terminal type for connection.
