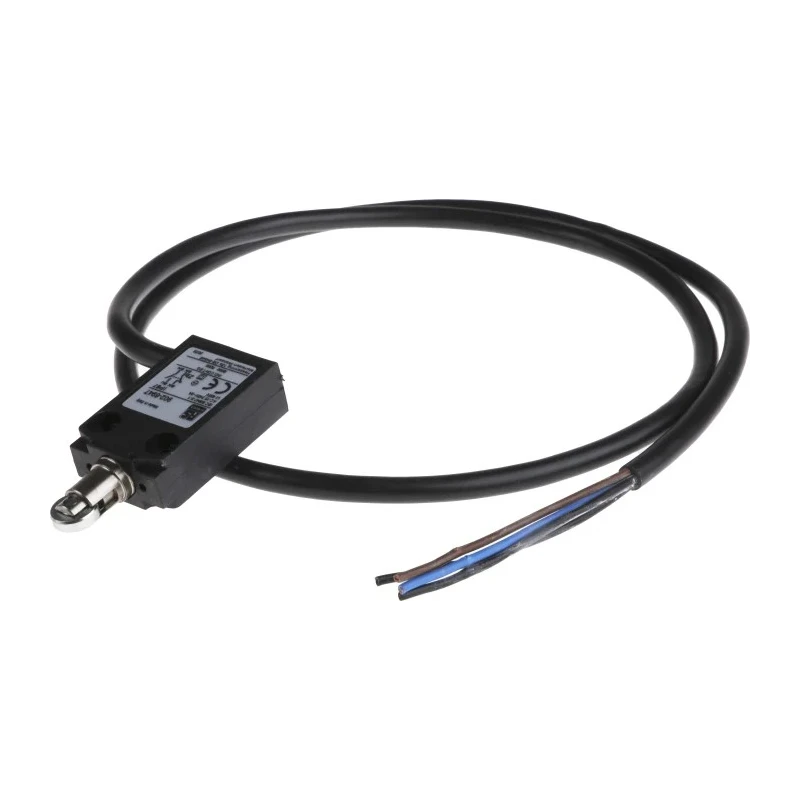

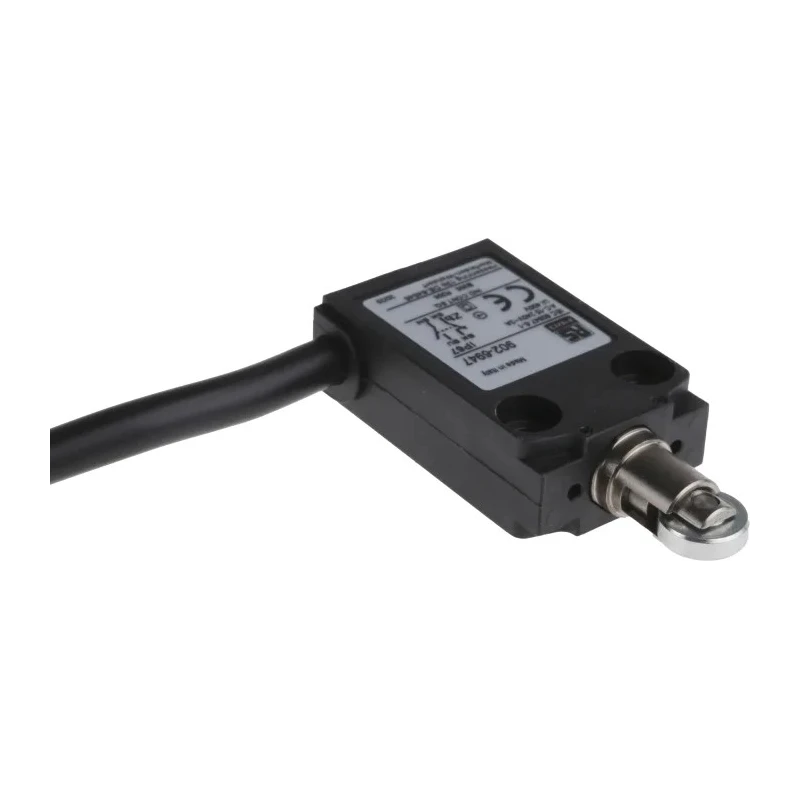

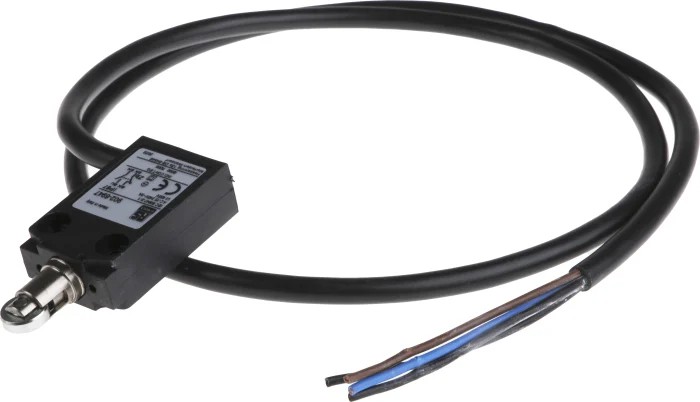

RS PRO Roller Plunger Limit Switch 1 NO/1 NC Thermoplastic Housing IP67 Rated 240V AC 5A IP67
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | RS PRO |
| Length | 31.5mm |
| Model | IP67 |
| Depth | 16mm |
| IP Rating | IP67 |
| Width | 70mm |
| Housing Material | Thermoplastic |
| Maximum Operating Temperature | 70°C |
| Mounting Orientation | Vertical |
| Contact Configuration | 1 NO/1 NC |
| Actuator Type | Roller Plunger |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -25°C |
| Switching Current | 5A |
| Terminal type | Cable |
| Standards/Approvals | CE, CSA, EN, IEC, IMQ, RoHS, RU, UL |
| Operating Force | 10N |
| Mechanical Life | 10000000Operations |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 240V ac |
| Conduit Entry | M20 |
| Crouzet 83731 Series Plunger Limit Switch, 1 NO/1 NC, IP66, 250V ac, 5ABrand | Crouzet |
Key Features
- Features a roller plunger actuator type for smooth mechanical operation.
- Thermoplastic housing offers excellent impact and chemical resistance.
- Rated IP67 for protection against dust and immersion in water up to 1 meter.
- Switch configuration includes one normally open and one normally closed contact.
- Supports switching voltages of 240V AC and 250V DC with a 5A switching current.
- Suitable for vertical mounting orientation in industrial environments.
- Designed for harsh environmental conditions with operating temperatures from -25°C to 70°C.
- Equipped with cable terminal connection and snap-action contact type.
Product Description
RS PRO IP67 Roller Plunger Limit Switch 1 NO/1 NC with thermoplastic housing is engineered to provide robust and reliable limit switching for industrial automation applications. The roller plunger actuator ensures swift and precise position sensing without interference with object movement on assembly lines or conveyors.
The switch has an IP67 rating, meaning it is dust tight and resistant to water immersion up to 1 meter depth, making it suitable for harsh industrial environments including manufacturing, automation systems, and heavy machinery.
The thermoplastic housing enhances durability against impacts, chemical exposure, and mechanical stresses expected in demanding operational settings. With a switching current of 5 amps and the capacity to handle up to 240 volts AC and 250 volts DC, it supports a wide range of control circuits.
Featuring both normally open (NO) and normally closed (NC) contacts with snap-action type switching, the device ensures dependable electrical transitions at an operating force of 10N. This limit switch is pre-wired with a cable terminal for easy installation and vertical mounting orientation.
Roller plunger actuator type ensures smooth switching. IP67 rated thermoplastic housing protects against dust and water ingress. Contact configuration 1 NO/1 NC with snap-action switching. Maximum switching current of 5 amps for reliable circuit control.
Operating temperature range from -25°C to +70°C. Designed for vertical mounting orientation in industrial settings. Mechanical life expectancy of 10 million operations supports long-term use. Compliant with CE, CSA, EN, IEC, IMQ, RoHS, RU, and UL standards.
This RS PRO Limit Switch is ideally suited for applications in electrical automation, conveyors, packaging machinery, and process control systems where precise and durable position sensing is critical. The IP67 protection and robust material construction make it apt for environments requiring resistance against dust and water ingress.
Explore additional switches and industrial automation components on EnvMart for comprehensive control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this limit switch is 5A.
It supports switching voltages of 240V AC and 250V DC.
This limit switch has an IP67 rating, meaning it is dust tight and can withstand immersion in water up to 1 meter.
The dimensions of this limit switch are 31.5mm in length, 70mm in width, and 16mm in depth.
The operating temperature range for this unit is from -25°C to +70°C.
It uses a roller plunger actuator type for smooth mechanical operation.
This model is designed for vertical mounting orientation.
The contact configuration includes one normally open (NO) and one normally closed (NC) contact.
The housing is made of thermoplastic, which offers excellent impact and chemical resistance.
It complies with CE, CSA, EN, IEC, IMQ, RoHS, RU, and UL standards.
The mechanical life expectancy of this limit switch is 10 million operations.

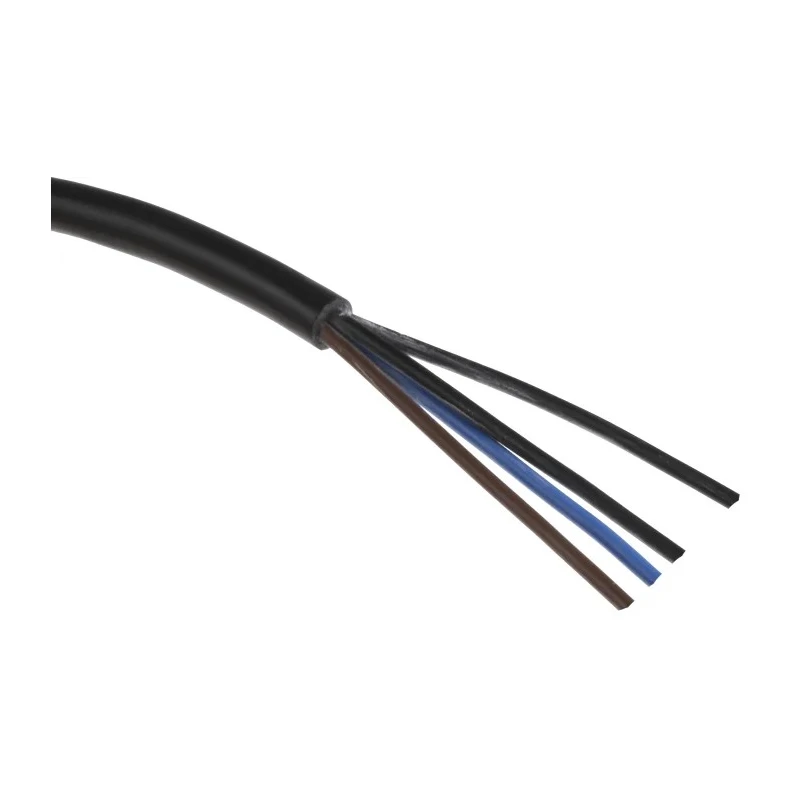

It is equipped with a cable terminal connection for easy installation.
