Pico Technology Three-Axis Accelerometer Kit Oscilloscope Adapter PP877, ±5 g Range, DC to 350 Hz, BNC Output PP877
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Pico Technology |
| Model | PP877 |
| Accessory Type | Three-Axis Accelerometer Kit |
| For Use With | Oscilloscope |
| Standards/Approvals | EN 61326-1:2006 |
| Standards/ApprovalsEN 61326-1 | 2006 |
| EN 61326-1 | 2006 |
Key Features
- Includes MEMS-based three-axis accelerometer and oscilloscope interface.
- ±5 g measurement range suitable for vibration analysis.
- Supplied with three short BNC to BNC cables compatible with PicoScope oscilloscopes.
- BNC output offers 0-2 V DC coupled signal with overvoltage protection up to 30 V.
- Sensor head shocks survivability rated at 10,000 g and wide temperature range -40 to +85 °C.
- Compact dimensions and lightweight design for ease of use and installation.
- Includes mounting magnet and CR123 A lithium primary battery for power.
- Recommended for use with high-resolution oscilloscopes such as PicoScope 4000 Series.
Product Description
Pico Technology PP877 is a three-axis accelerometer kit designed as an oscilloscope adapter for precise noise and vibration measurements.
The PP877 uses MEMS technology to provide accurate ±5 g measurable acceleration range and bandwidth from DC to 350 Hz. It outputs a DC-coupled 0-2 V signal per axis through BNC connectors compatible with PicoScope oscilloscopes equipped with three or more analog input channels, particularly suited to high-resolution 4000 series oscilloscopes.
The interface includes BNC overvoltage protection up to 30 V, with output scaling between 99 mV/g and 122 mV/g and a zero-g bias voltage ranging from 0.85 to 1.15 V for all axes. The sensor head sustains shock levels up to 10,000 g and operates across a temperature range of -40 to +85 °C.

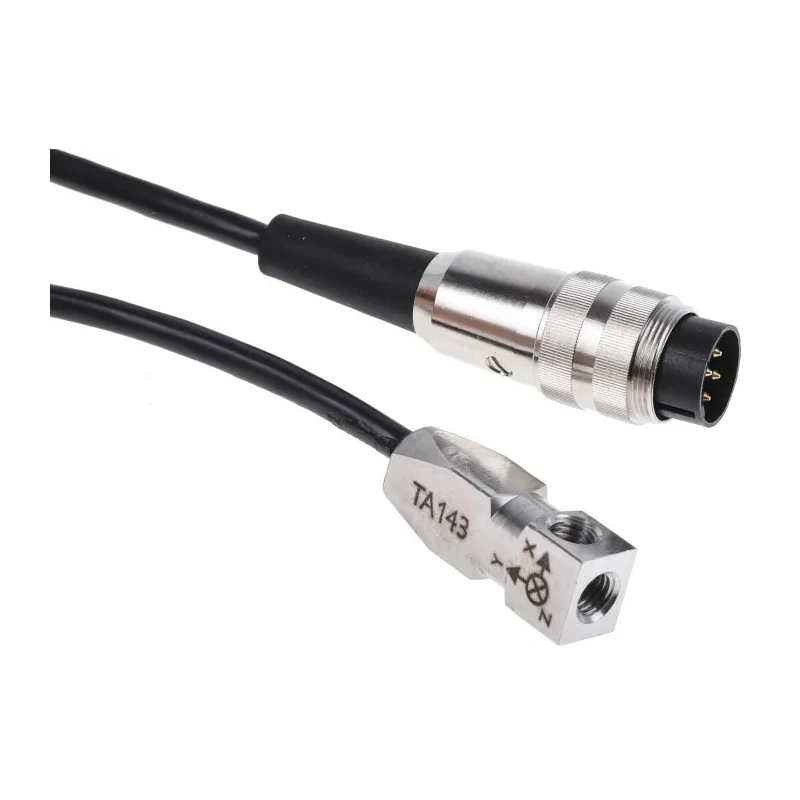

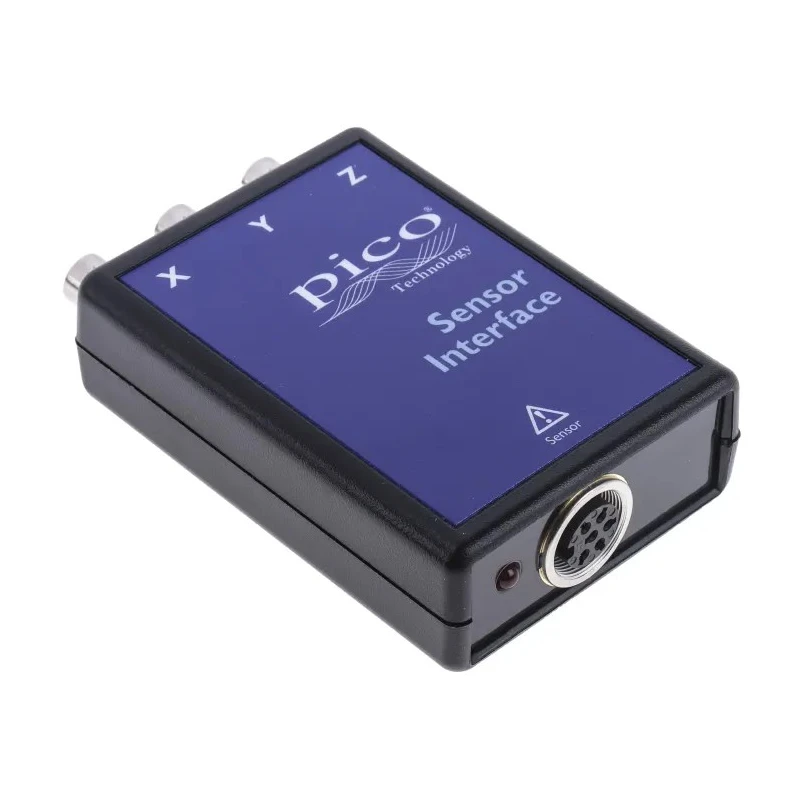

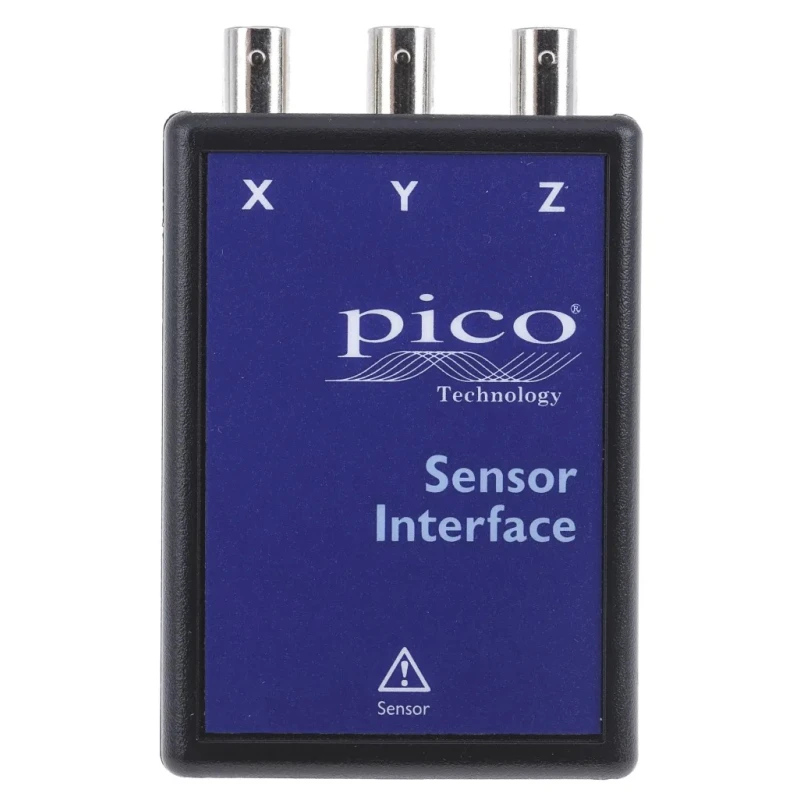

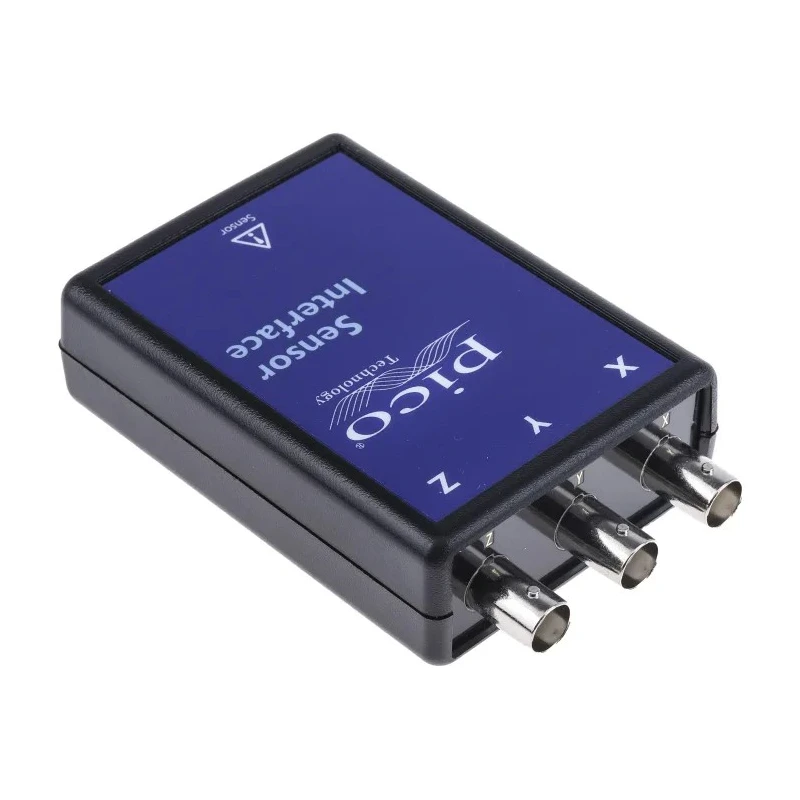

Compact and practical, the sensor interface measures 105 x 65 x 27 mm including BNC connectors, while the vibration sensor magnet has dimensions of 12 mm diameter and 18 mm length, secured with a fitted grub screw. The interface weighs 120 g and the vibration sensor 80 g for easy handling and installation.

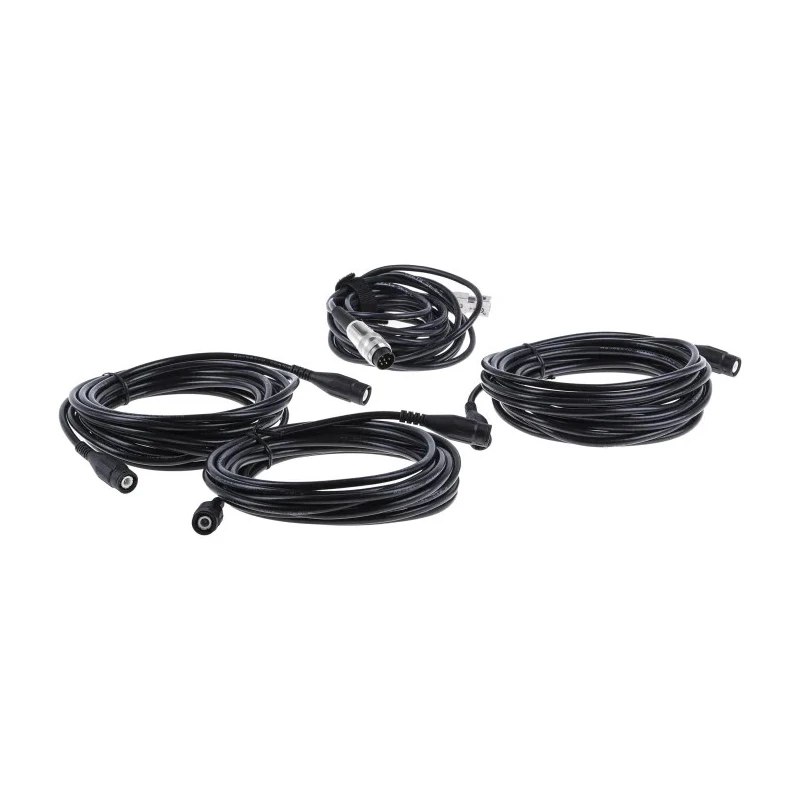

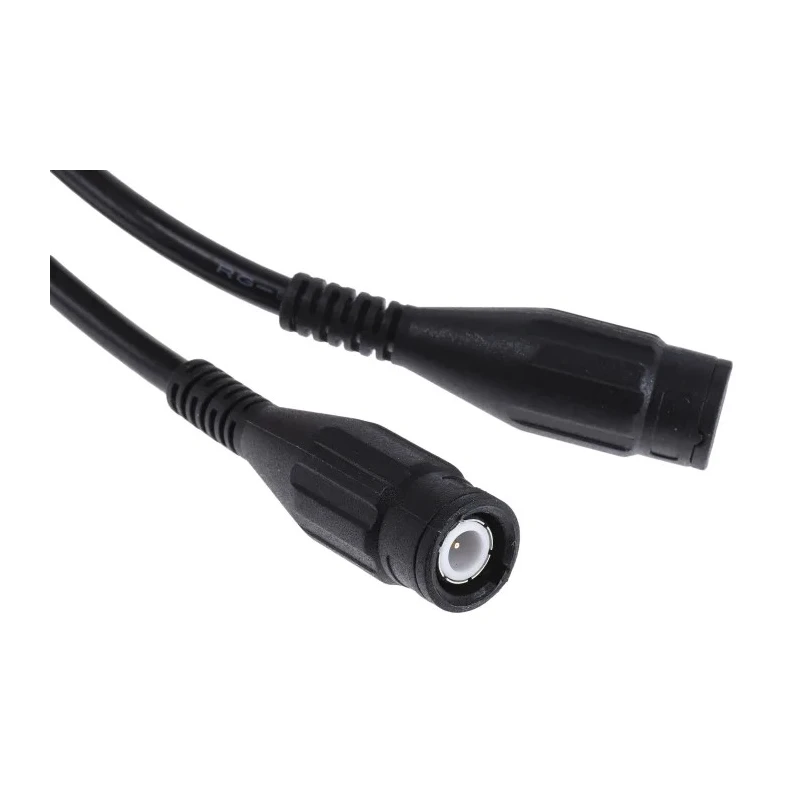

The package includes a mounting magnet, three short BNC to BNC cables for easy connection, and a CR123 A lithium primary battery for power. MEMS-based three-axis accelerometer and oscilloscope interface for vibration and noise measurement.
±5 g range and 0.35 kHz frequency bandwidth supports detailed analysis. Direct connectivity with PicoScope oscilloscopes featuring three or more analog inputs. Robust sensor head with high shock survivability and wide temperature operating range.
Compact design and supplied with mounting accessories and power supply.
This accelerometer kit is ideal for industrial, laboratory, manufacturing, and HVAC applications where precision vibration analysis with oscilloscopes is required. It provides reliable data capture for noise and vibration diagnostics and condition monitoring.
Explore more Pico Technology oscilloscope accessories and probe adapters on EnvMart for enhanced measurement capabilities.
Explore more products in our Oscilloscope Probe Accessories category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The accelerometer kit has a measurement range of ±5 g, suitable for vibration analysis.
It operates with a frequency bandwidth from DC to 350 Hz, allowing for detailed vibration analysis.
The interface measures 105 x 65 x 27 mm and weighs 120 g, making it compact and lightweight for easy handling.
It operates across a wide temperature range of -40 to +85 °C, suitable for various environments.
The kit includes a mounting magnet, three short BNC to BNC cables, and a CR123 A lithium primary battery for power.
The sensor head is rated for shock survivability up to 10,000 g, ensuring it can withstand significant impacts.
It complies with the EN 61326-1:2006 standard, ensuring it meets specific safety and performance criteria.
It is designed for use with PicoScope oscilloscopes that have three or more analog input channels, particularly the 4000 Series.
This model is powered by a CR123 A lithium primary battery, which is included in the package.
It is ideal for industrial, laboratory, manufacturing, and HVAC applications where precision vibration analysis is required.
The output scaling ranges between 99 mV/g and 122 mV/g, with a zero-g bias voltage ranging from 0.85 to 1.15 V for all axes.
