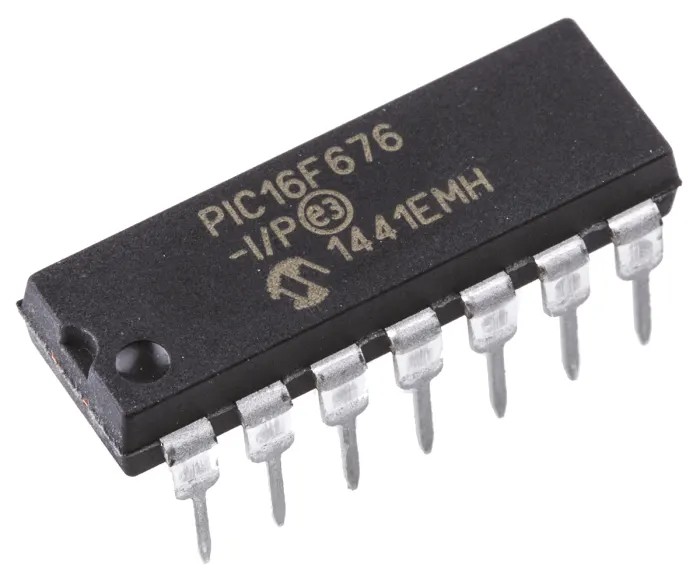

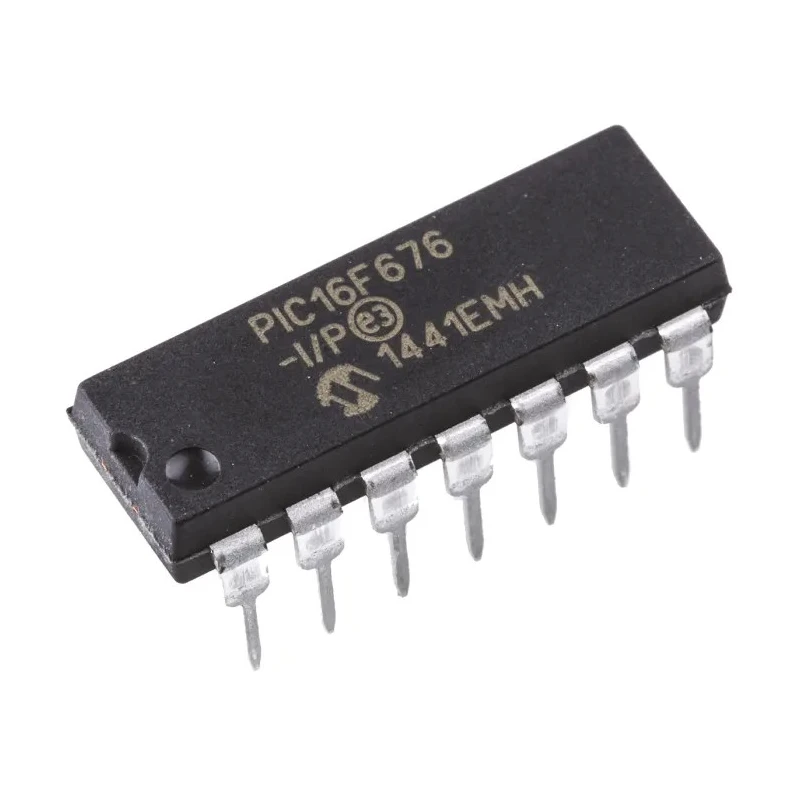

Microchip 8-Bit PIC Microcontroller 20 MHz 128B Flash 14-Pin PDIP PIC16F676-I/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.95mm |
| Length | 19.69mm |
| Model | PIC16F676-I/P |
| Width | 7.11mm |
| Mount Type | Through Hole |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 64bit |
| Interface Type | SPI |
| Pin Count | 14 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 128B |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 18 |
| Analogue Comparators | 1 |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 8 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
Key Features
- Features a 14-pin PDIP package suitable for through-hole mounting.
- Operates with a maximum supply voltage of 5.5 V and minimum of 1.8 V.
- Includes 64 bits of RAM and 18 programmable I/O pins for flexible interfacing.
- Equipped with an 8-bit data bus, SPI interface, and 8-channel 10-bit ADC.
- Contains internal peripherals such as 1 DAC (5-bit) and 1 analog comparator.
- Endures operating temperatures from -40°C to 85°C for reliable industrial use.
- Supports power-on reset, watchdog timer, brown-out detection and in-circuit serial programming.
- Measures 19.69 mm length, 7.11 mm width, and 4.95 mm height for compact design.
Product Description
Microchip PIC16F676-I/P is an 8-bit microcontroller featuring Microchip's well-known PIC architecture designed for embedded systems. Operating at a maximum clock frequency of 20 MHz, it provides efficient processing for a wide range of industrial and commercial applications.
It is housed in a 14-pin PDIP package, allowing through-hole assembly and compatibility with various PCB designs. The microcontroller offers 128 bytes of FLASH program memory and 64 bits of RAM, facilitating complex program execution and data handling.
The device supports SPI interface for serial communication and includes 18 programmable I/O pins enabling flexible hardware interfacing. The onboard peripherals include a 5-bit DAC and an analog comparator, suitable for signal conditioning and analog measurements.
Designed to operate within a supply voltage range from 1.8 V to 5.5 V, and with a maximum power dissipation of 800 mW, the PIC16F676-I/P sustains robust performance across industrial temperature ranges from -40°C to 85°C.
Additional features include power-on reset (POR), power-up timer (PWRT), oscillator start-up timer (OST), brown-out detect (BOD), watchdog timer (WDT), and in-circuit serial programming (ICSP) for flexible programming and reliable operation.
Features a 14-pin PDIP package suitable for through-hole mounting. Operates with a maximum supply voltage of 5.5 V and minimum of 1.8 V. Includes 64 bits of RAM and 18 programmable I/O pins for flexible interfacing. Equipped with an 8-bit data bus, SPI interface, and 8-channel 10-bit ADC.
Contains internal peripherals such as 1 DAC (5-bit) and 1 analog comparator. Endures operating temperatures from -40°C to 85°C for reliable industrial use. Supports power-on reset, watchdog timer, brown-out detection and in-circuit serial programming.
Measures 19.69 mm length, 7.11 mm width, and 4.95 mm height for compact design. Ideal for automotive, industrial, and embedded electronic applications.
This microcontroller is a reliable choice for applications in industrial automation, automotive electronics, consumer devices, and embedded controls, offering a compact form factor with essential integrated features.
Explore more Microchip Microcontrollers and semiconductor products suitable for diverse electronic solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 20 MHz.
It operates with a supply voltage range from 1.8 V to 5.5 V.
This microcontroller includes 18 programmable I/O pins for flexible interfacing.
It is housed in a 14-pin PDIP package suitable for through-hole mounting.
It contains 1 DAC (5-bit) and 1 analog comparator, along with 8-channel 10-bit ADC.
The dimensions are 19.69 mm in length, 7.11 mm in width, and 4.95 mm in height.
It can operate within a temperature range of -40°C to 85°C.
This model supports an SPI interface for serial communication.
The program memory size is 128 bytes of FLASH.
It includes features such as power-on reset, watchdog timer, brown-out detection, and in-circuit serial programming.
This microcontroller includes 64 bits of RAM.
The maximum power dissipation is 800 mW.
