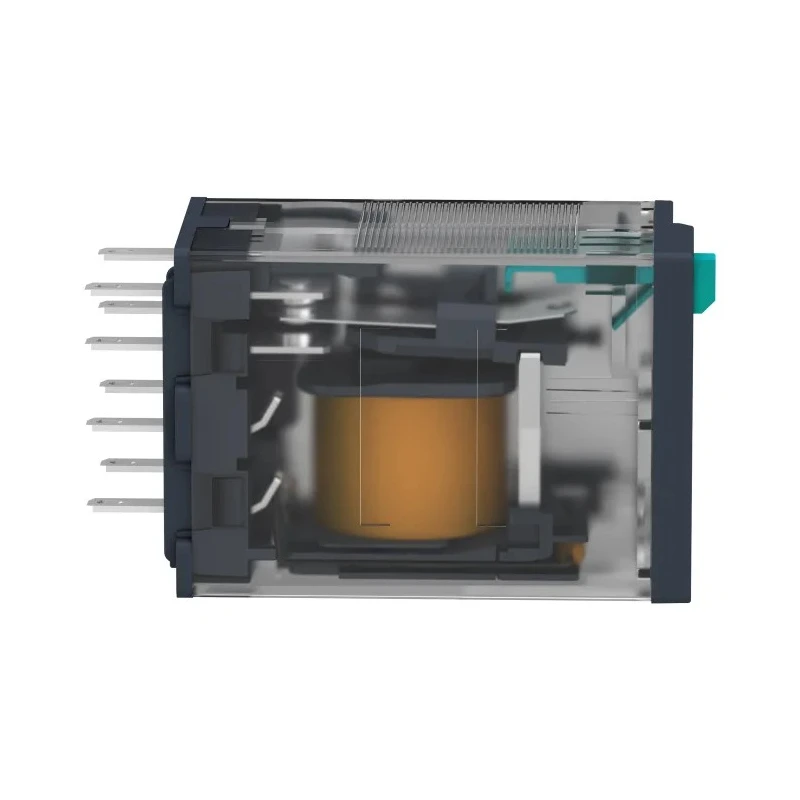

Schneider Electric Power Relay 12V DC Coil 8A Switching Current 4PDT RXM4AB2JD

Schneider Electric RXM4AB2JD is a high-quality power relay from the Harmony Electromechanical Relay RXM series, featuring a 12V DC coil and a switching current capacity of 8A with a 4PDT (4-pole double throw) contact configuration. This plug-in relay is intended for industrial machines, packaging equipment, textile machinery, HVAC systems, automation control panels, low and medium voltage switchgear, motor control units, PLC interfaces, power supplies, building equipment, medical devices, and lighting control systems.

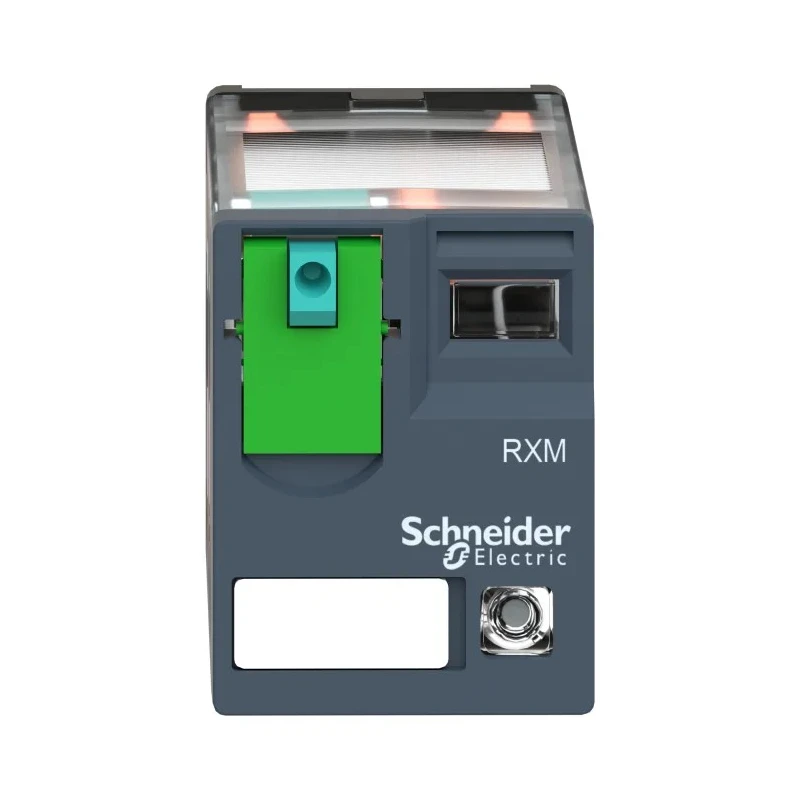

The relay is designed with user convenience in mind, featuring a one-step lockable test button activated by a blue pushbutton on the front and a mechanical contact status indicator with an orange flag. A green LED provides clear status indication even in low light conditions. The compact physical dimensions (47.7mm wide, 27mm high, and 21mm long) make it suitable for cramped control panels.

Constructed with silver alloy contacts, the RXM4AB2JD ensures reliable electrical performance with a switching AC voltage rating of 250V and DC voltage rating of 28V. The coil has a resistance of 160Ω and a power consumption of 900mW. The relay operates efficiently across a wide temperature range from -40°C to 55°C.

This model conforms to international standards including CSA and CE certifications, underscoring its reliability and safety for industrial applications. It is a green premium product made in China and is sold in lots of 10 units, with the relay itself sold separately from the RXZE base socket and accessories like vibration protection clamps and marking legends.

Schneider Electric RXM4AB2JD is ideal for automation systems requiring robust performance, easy installation, and clear status monitoring. It is widely used in manufacturing, HVAC, industrial automation, and building management systems.

Equipped with a plug-in terminal type for easy integration. Supports switching AC voltage up to 250V and DC voltage up to 28V. Features an integrated test button and mechanical indicator for contact status. Compact design with dimensions 47.7mm width, 27mm height, and 21mm length.

Constructed with silver alloy contacts ensuring reliable conductivity. Operates within temperature range of -40°C to 55°C. Coil resistance is 160Ω with coil power of 900mW. Certified to CSA and CE standards for quality and safety.

Designed for use with RXZE sockets and compatible with various industrial control systems. For more details on Schneider Electric Power Relays and other electrical automation products, explore our Electronics & Electricals category on EnvMart.
