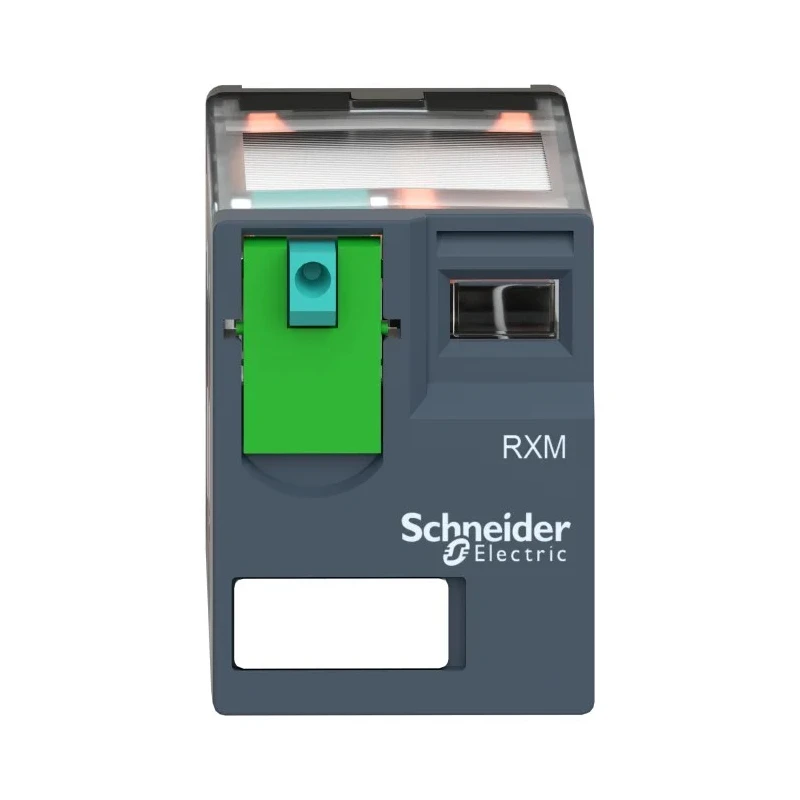

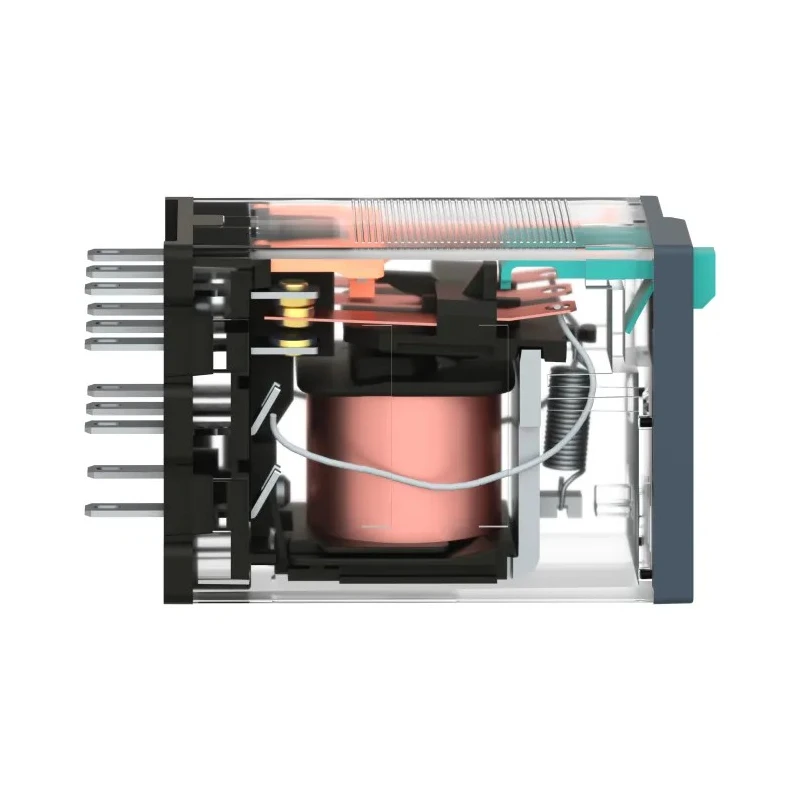

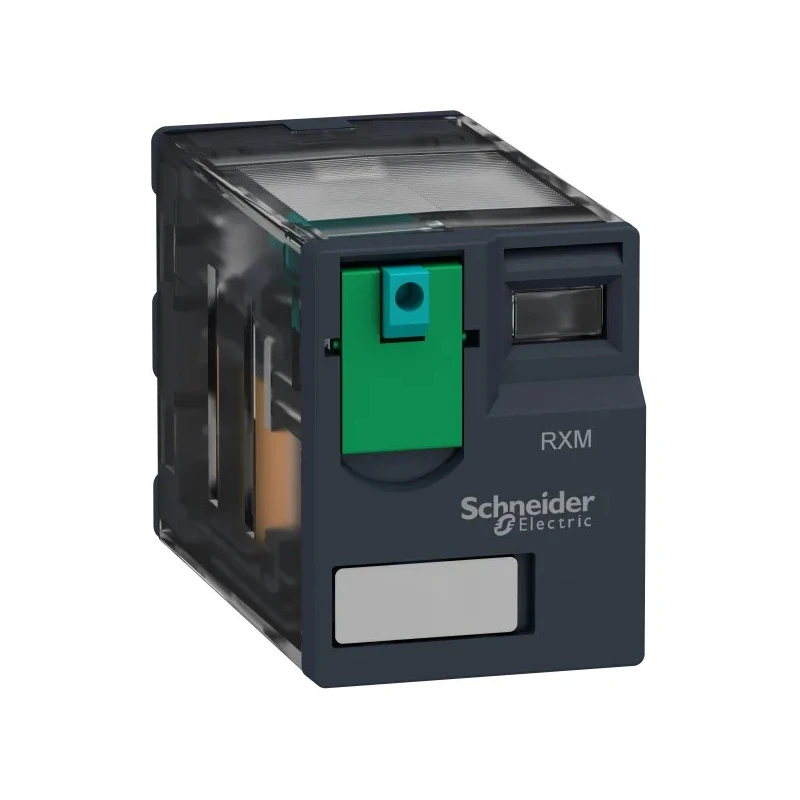

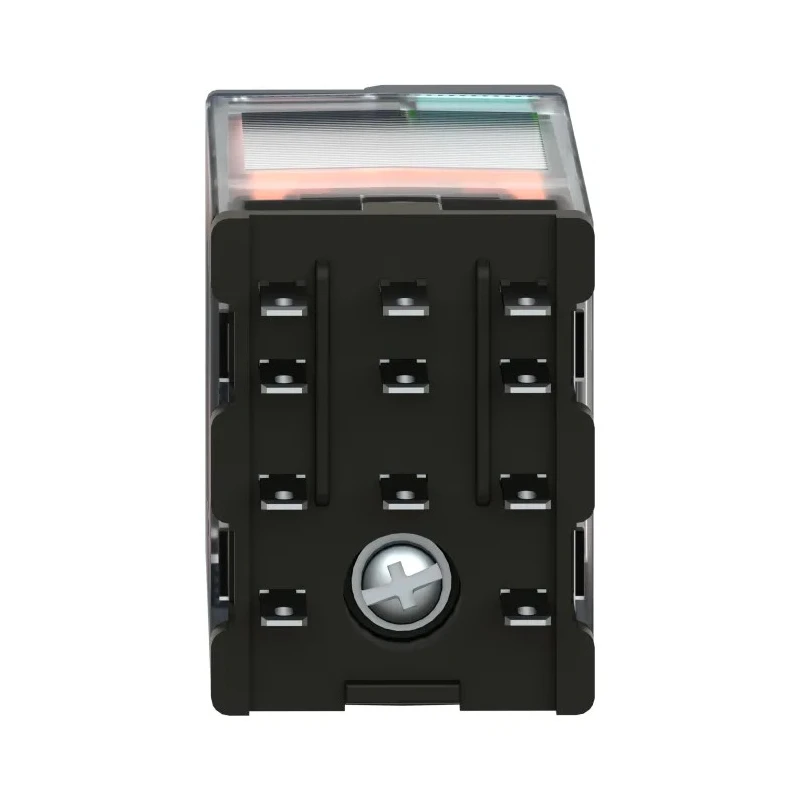

Schneider Electric Power Relay with 12V DC Coil, 10A Switching Current, 3PDT Contact Configuration RXM3AB1JD

Schneider Electric RXM3AB1JD is a Harmony RXM miniature plug-in power relay designed for industrial control systems. It operates with a 12V DC coil voltage delivering reliable switching capacity up to 10A with a 3PDT (triple pole double throw) contact configuration. The relay supports switching of AC loads up to 250V and DC loads up to 28V, making it suitable for a wide range of electrical and automation applications.

Its compact size (21mm length, 47.7mm width, 27mm height) and space-saving design allow flexible mounting options within control panels and electrical enclosures. The relay is equipped with a mechanical status indicator and a lockable test button for convenient diagnostics and maintenance.

The contacts are made of durable silver alloy, ensuring long service life and efficient conduction. With an operating temperature range from -40°C to 55°C, this Power Relay is reliable for challenging industrial environments.

Certified according to CSA and CE standards, the RXM3AB1JD meets rigorous international safety and performance requirements. It is ideal for use with RXZE sockets and compatible with additional protection modules and mounting clamps to reduce vibrations in high-demand settings.

This device is commonly employed in industrial automation, manufacturing control systems, building equipment automation, and HVAC control panels. The transparent cover enables visual inspection of contact status without disassembly, enhancing operational safety.

This miniature plug-in relay provides triple pole double throw (3PDT) contacts rated for 10A switching current. The coil operates at 12V DC with 900mW coil power and 160Ω coil resistance. Compact size supports space-efficient enclosure designs at 21mm x 47.7mm x 27mm.

The relay is engineered for operating temperatures ranging from -40°C to 55°C suitable for various industrial conditions. Silver alloy contacts ensure robust electrical performance and durability. Compliance with CSA and CE standards guarantees international safety and quality assurance.

Equipped with a mechanical indicator and lockable test button for operational diagnostics. Designed to interface with RXZE sockets and optional vibration protection clamps. Ideal for electrical automation, machine control panels, and PLC system integration.

Transparent housing allows easy visual inspection of contact status enhancing maintenance efficiency. Explore more high-quality Schneider Electric relays and electrical components in EnvMart’s extensive automation product range designed for industrial and commercial applications.
