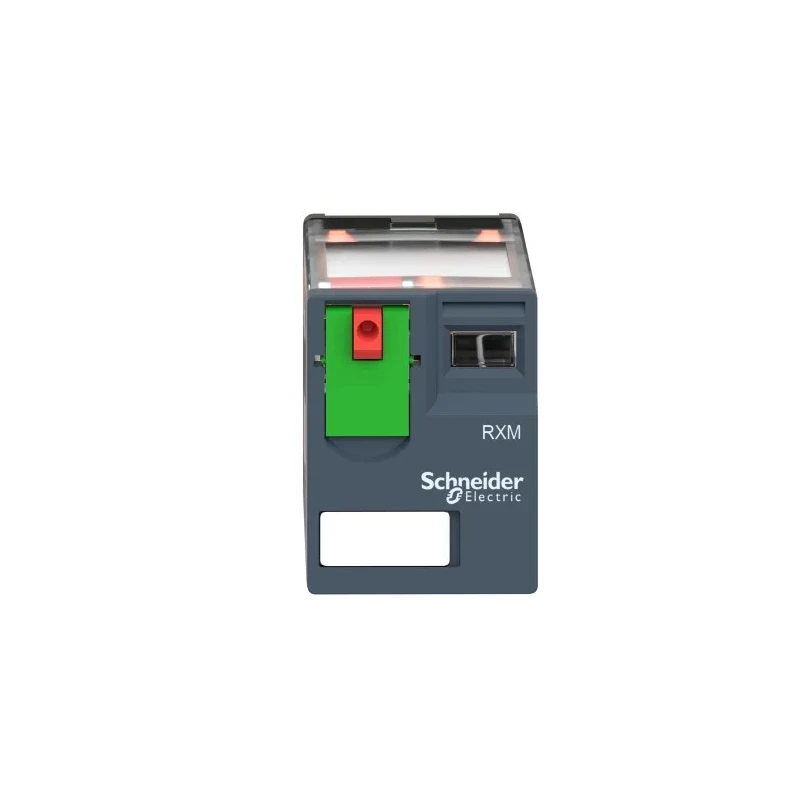

Schneider Electric Power Relay 230V AC Coil Voltage 8A Switching Current 4PDT Contact Configuration RXM4AB1P7

Schneider Electric RXM4AB1P7 Power Relay is a miniature plug-in relay designed for reliable control of electrical circuits in various industrial and automation applications. It operates at a nominal coil voltage of 230V AC and features a 4PDT (four-pole double throw) contact configuration, enhancing operational flexibility in control circuits.

This relay integrates silver alloy contacts that provide excellent conductivity and resistance to wear, supporting a maximum switching power of up to 1.5kVA at 250V AC, making it suitable for controlling medium-power devices and machinery. The coil resistance of 15kΩ and coil power consumption of 1.2W optimize energy usage during operation.

The device boasts compact dimensions (21mm length, 47.7mm width, 27mm height), allowing easy integration into control panels with limited installation space. It is rated for a switching current of 8A and supports switching voltages of up to 28V DC and 250V AC, providing versatile application across different circuit configurations.

Designed to operate in harsh environments, the relay supports a wide temperature range (-40°C to 55°C) and mechanical durability rated for 10 million operation cycles, reducing maintenance intervals and enhancing system uptime. It features a plug-in terminal type for straightforward installation and complies with international standards including CSA and CE, assuring safety and quality.

Typical applications include industrial automation systems, HVAC controls, machinery control, and lighting circuits where dependable switching and compact form factor are critical. The IP40 protection rating allows reliable performance in moderately dusty environments.

Operates with a coil voltage of 230V AC for wide compatibility. Equipped with four changeover contacts (4PDT) for flexible switching. Silver alloy contacts provide enhanced conductivity and durability. Supports a maximum switching power of 1.5kVA, suitable for industrial loads.

Compact dimensions of 21 x 47.7 x 27 mm ideal for space-constrained installations. Mechanical lifespan rated at 10,000,000 cycles, ensuring long-term reliability. Operating temperature range from -40°C to 55°C for rugged environments.

Plug-in terminal type enables easy installation and maintenance. Standards compliance includes CSA and CE approvals.
