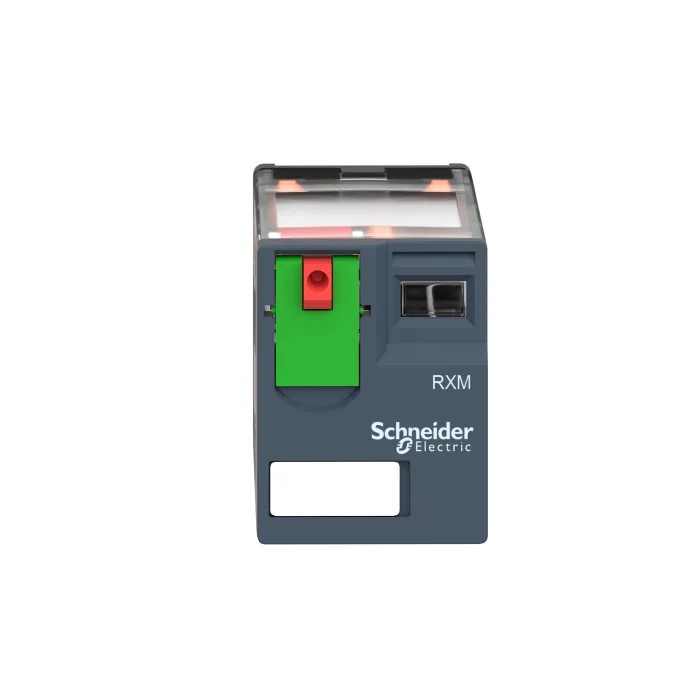

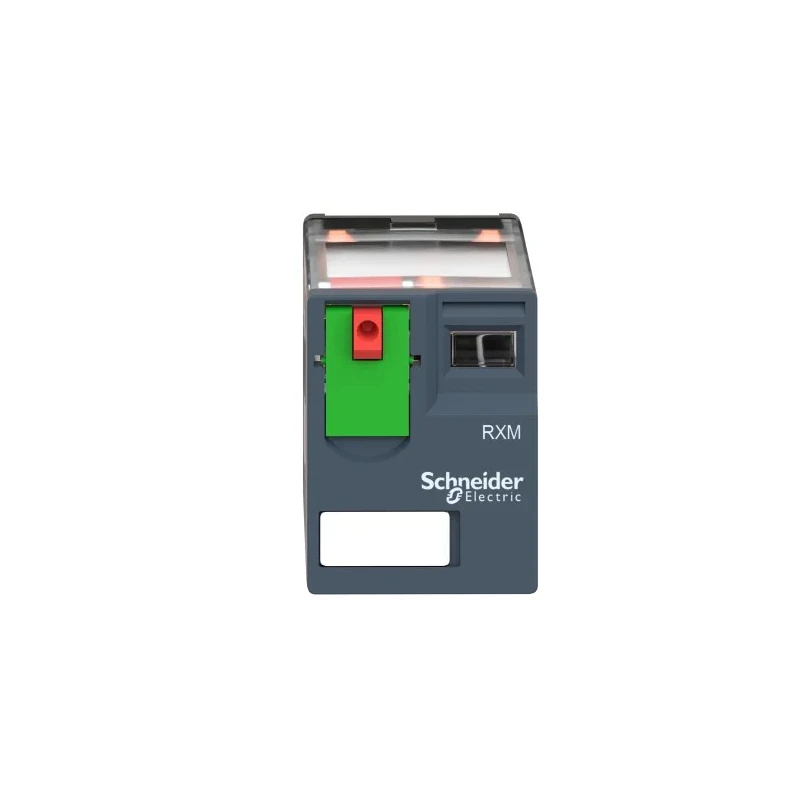

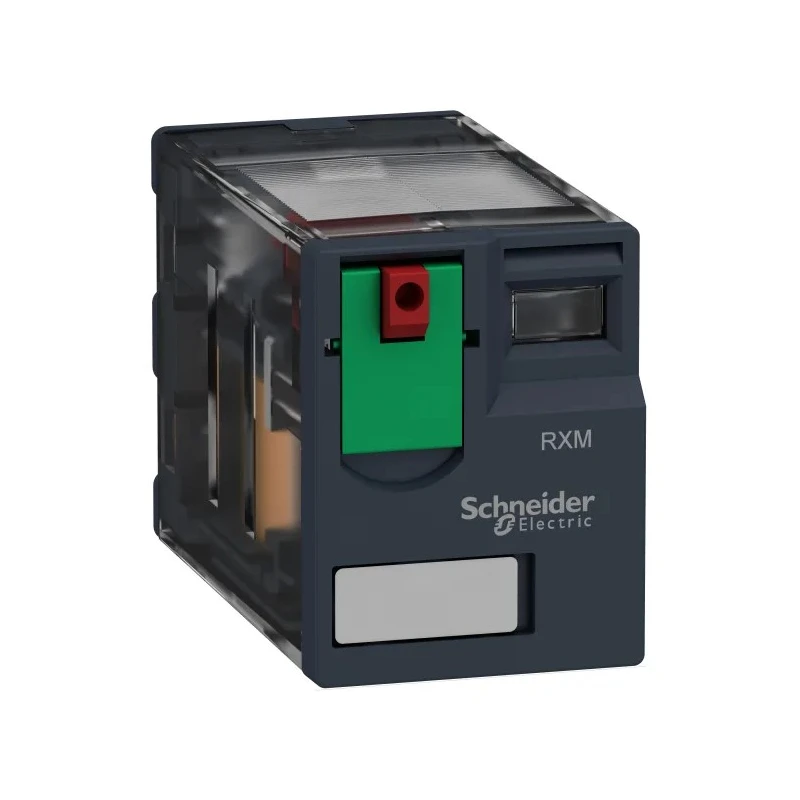

Schneider Electric Power Relay, 230V AC Coil, 12A Switching Current, DPDT, Plug-In Terminal, Silver Alloy Contacts RXM2AB1P7
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 27mm |
| Length | 21mm |
| Model | RXM2AB1P7 |
| Width | 47.7mm |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RXM |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |

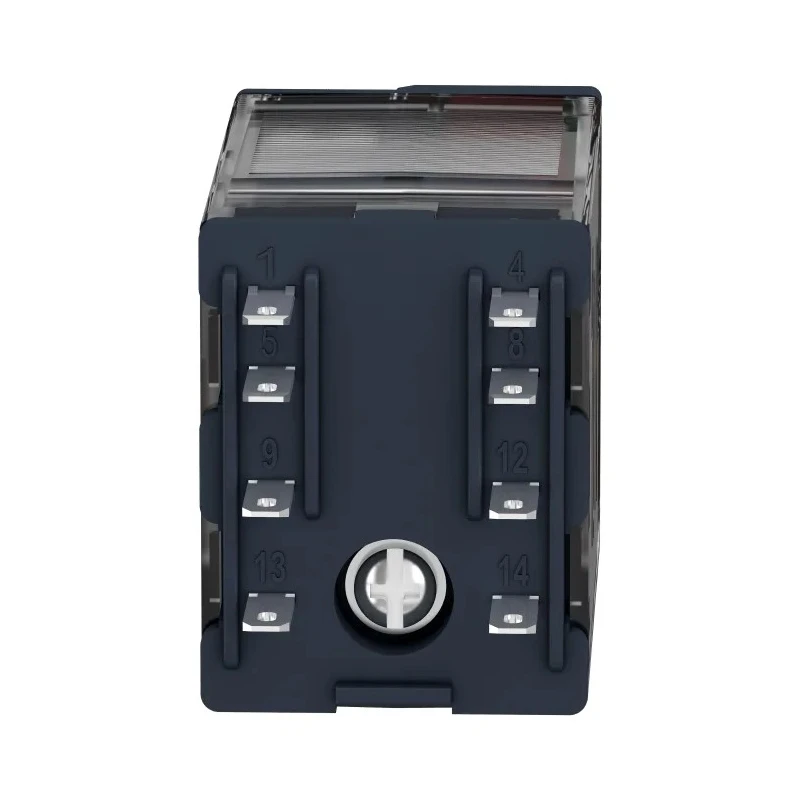

| Terminal type | Plug-In |
| Standards/Approvals | CSA, CE |
| Coil Resistance | 15kΩ |
| Coil Voltage | 230V ac |
| Switching AC Voltage | 250V ac |
| Coil Power | 1.2W |
Key Features
- Equipped with a plug-in terminal for easy installation.
- Silver alloy contacts provide excellent conductivity and corrosion resistance.
- Operates within a temperature range from -40°C to 55°C.
- Mechanical durability rated for 10 million cycles ensures long operational life.
- Compact dimensions of 47.7mm width, 27mm height, and 21mm length for space-efficient integration.
- Designed for robust performance against shock and vibration.
- Coil resistance is 15 kΩ, with coil power consumption of 1.2W.
- Standards compliance includes CSA and CE certifications.
Product Description
Schneider Electric RXM2AB1P7 power relay is a dual-pole double-throw (DPDT) unit featuring a 230V AC coil and 12A maximum switching current. It is engineered for reliable performance in industrial and commercial electrical systems, providing efficient power switching with a maximum switching power of 336W DC.
This relay is designed for demanding environments with a mechanical durability of 10 million cycles and resistance to shock and vibrations, making it suitable for applications in control panels, aerospace engineering, HVAC systems, and packaging equipment. Its compact size and plug-in terminal type allow for easy and flexible installation in control systems.
The silver alloy contacts ensure high conductivity and corrosion resistance, enhancing reliability over extended use. The operating temperature range from -40°C to +55°C enables its use in harsh environmental conditions.
Featuring coil resistance of 15 kΩ and coil power of 1.2W, the relay maintains efficient power consumption. It is standards-approved under CSA and CE, ensuring compliance with international safety and quality requirements.
The non-latching design offers an automatic reset to the original state after activation, ideal for fast and reliable switching operations requiring immediate reset without manual intervention. Mechanical contact indicators assist in easy status monitoring.
Equipped with a plug-in terminal for easy installation. Silver alloy contacts provide excellent conductivity and corrosion resistance. Wide operating temperature range from -40°C to 55°C for harsh environments. Mechanical durability rated for 10 million cycles.
Compact dimensions of 47.7mm width, 27mm height, and 21mm length. Coil resistance of 15 kΩ and coil power consumption of 1.2W. Approved by CSA and CE standards. Applications include control panels, aerospace, HVAC systems, and packaging equipment.
Non-latching relay design returns to original state automatically. Mechanical contact indicator for status monitoring.
Choose Schneider Electric RXM2AB1P7 to ensure robust, reliable switching solutions across a range of industrial applications. Explore more products in our Power Relay category for your automation and electrical control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current of this power relay is 12A.
The coil voltage for this model is 230V AC.
This relay has compact dimensions of 47.7mm in width, 27mm in height, and 21mm in length.
It uses silver alloy contacts, which provide excellent conductivity and corrosion resistance.
The operating temperature range for the RXM2AB1P7 is from -40°C to +55°C.
The coil resistance of this relay is 15 kΩ.
Yes, it is designed for demanding environments with resistance to shock and vibrations, and operates within a wide temperature range.
This relay is approved under CSA and CE standards, ensuring compliance with international safety and quality requirements.
The coil power consumption for this model is 1.2W.
It features a plug-in terminal for easy installation.
The mechanical durability of this relay is rated for 10 million cycles.
This model is suitable for applications in control panels, aerospace engineering, HVAC systems, and packaging equipment.
