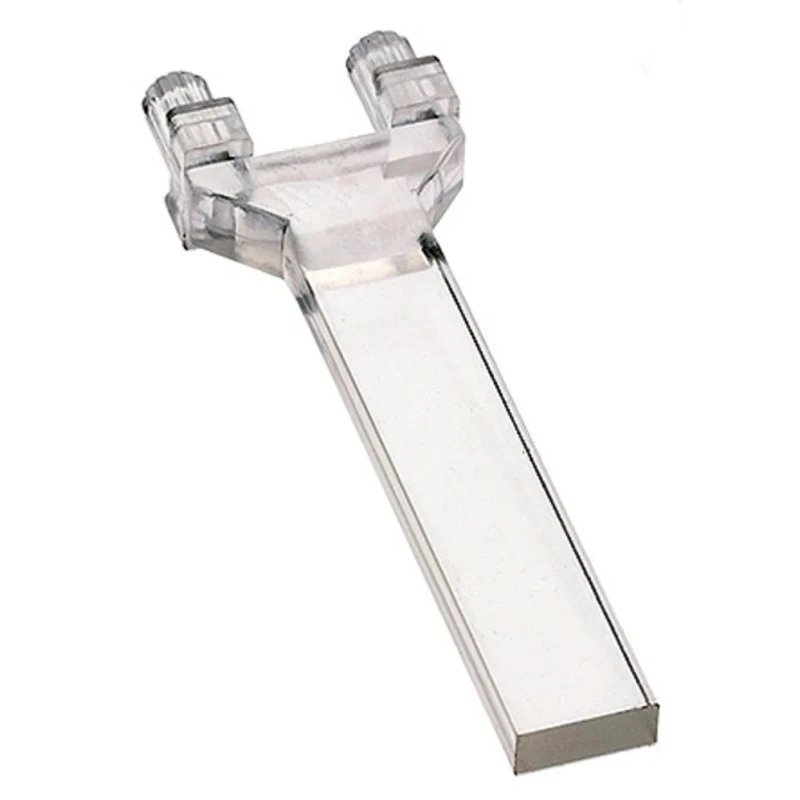

Mentor GmbH Press-In 1-Way Straight Rigid LED Light Pipe Clear 30mm Length 1274.1021

Mentor GmbH 1274.1021 Press-In 1-Way Straight Rigid LED Light Pipe Clear is a high-quality vertical light guide designed for precise light transmission in electronic display applications. With a rigid structure made of clear PC material, this light pipe offers durability and reliable optical performance. The rectangular shape and single-way configuration make it ideal for use in bargraph displays with one row, allowing distinct and controlled light output.

This light pipe features a press-in mount type that ensures easy and secure installation on printed circuit boards, commonly used with surface mount (SMD) LEDs. The 30mm length and dimensions of 5.2mm outside diameter and 2mm inside diameter provide compatibility with various LED packages while maintaining compact profile requirements.

Built to meet UL94 flame retardant standards, this component is well suited for industrial, electronics manufacturing, laboratory instrumentation, and commercial display applications. It operates reliably within a wide ambient temperature range of -40°C to +85°C, allowing stable performance in diverse environmental conditions.

The product is manufactured in Germany by Mentor GmbH, known for precision lighting components, ensuring high quality and consistency. This light pipe does not include an LED and is designed for use with compatible SMD LEDs, delivering effective light transfer from the LED to the user interface without significant luminance loss or light bleed.

Constructed from flame-retardant clear PC material for durability and optical clarity. Rectangular shape optimized for bargraph display applications. Press-in mounting facilitates fast and secure PCB assembly. Compliant with UL94 standards providing enhanced safety.

Operational ambient temperature from -40°C to +85°C for wide application range. Single row 1 x 1 configuration for focused light guidance. Compact dimensions with 30mm length and 5.2mm outside diameter. Designed for use with surface mount LEDs without included LED device.

Manufactured in Germany ensuring premium quality standards.

This vertical light guide is ideal for electronics manufacturing, industrial displays, laboratory equipment, and commercial applications where precise light indication is required. Its robust design and certified standards support use in demanding environments. Browse additional LED Light Pipe solutions on EnvMart for related products and accessories.
