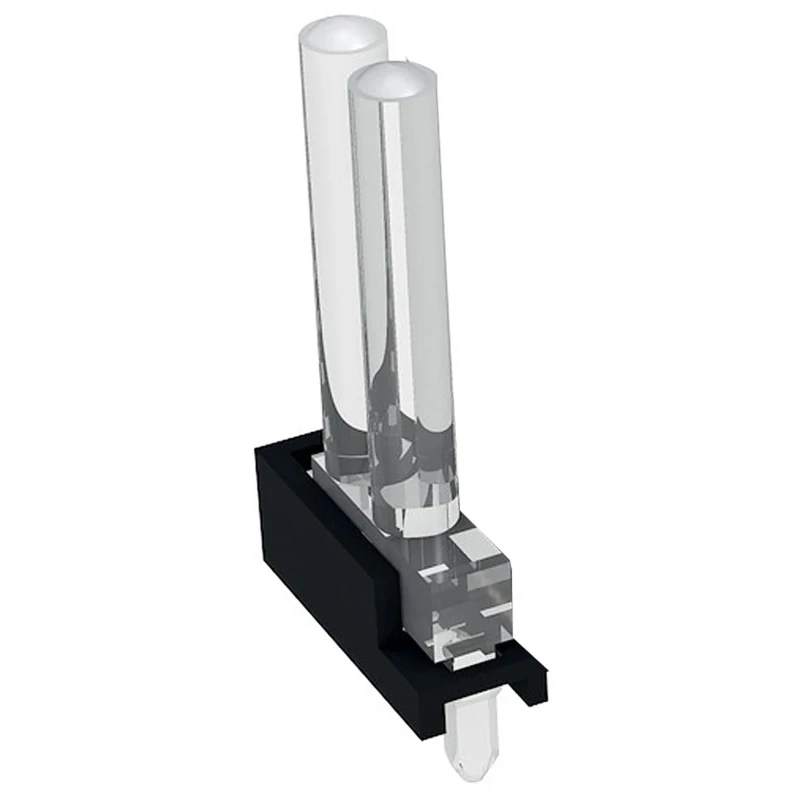

Mentor GmbH PCB 2-Way Straight Rigid LED Light Pipe Clear Lens 2 mm 15mm Length 1296.7012

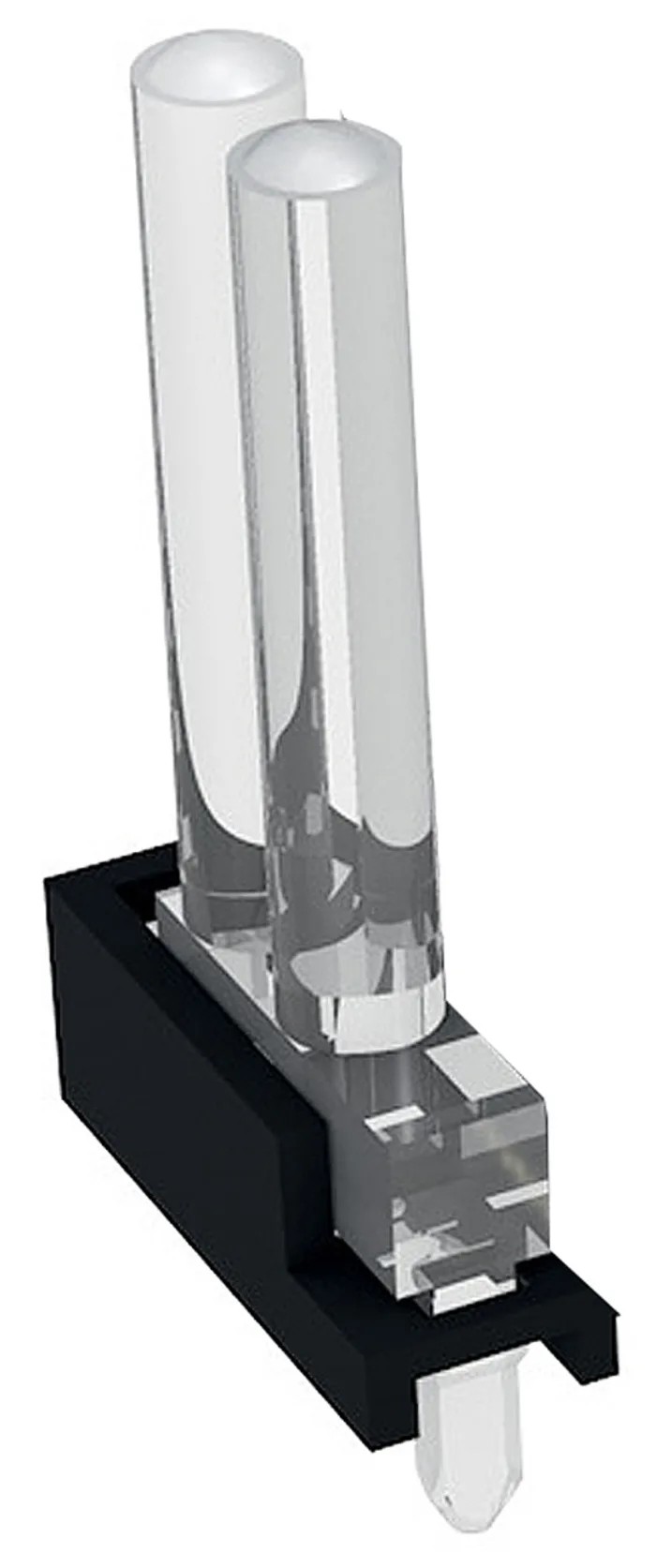

Mentor GmbH model 1296.7012 PCB 2-Way Straight Rigid LED Light Pipe features a rigid vertical light guide with a clear 2 mm dome lens designed for precise light transmission from surface mount LEDs. Measuring 15 mm in length and arranged in two rows totaling twenty light pipes, this component is engineered to fit directly onto PCBs via push-fit lugs ensuring stable attachment.

The light pipes are oriented straight and the exterior diameter is approximately 1.95 mm. Made from high-grade materials meeting UL94 standards, these vertical guides operate reliably across an ambient temperature range of -40°C to +85°C. Their design reduces luminance loss and prevents light bleed between adjacent pipes, offering sharp and clear illumination for LED applications.

Applications include electronic displays, power and connectors, LED lighting components, and optoelectronics where controlled light direction and intensity are critical. These light guides facilitate efficient optical pathways from LEDs to user interfaces in industrial, commercial, and laboratory environments.

The product is made in Germany, ensuring quality manufacturing processes and durability. The rigid construction supports robust performance in demanding settings. The two-row configuration allows flexibility in designing complex LED arrays or multiple indicator layouts on circuit boards.

Rigid vertical LED light guides with 2 mm dome lens. Two rows with a total of twenty light pipes in straight orientation. Push-fit PCB mounting for straightforward installation. UL94 compliant and operational temperature range from -40°C to +85°C.
