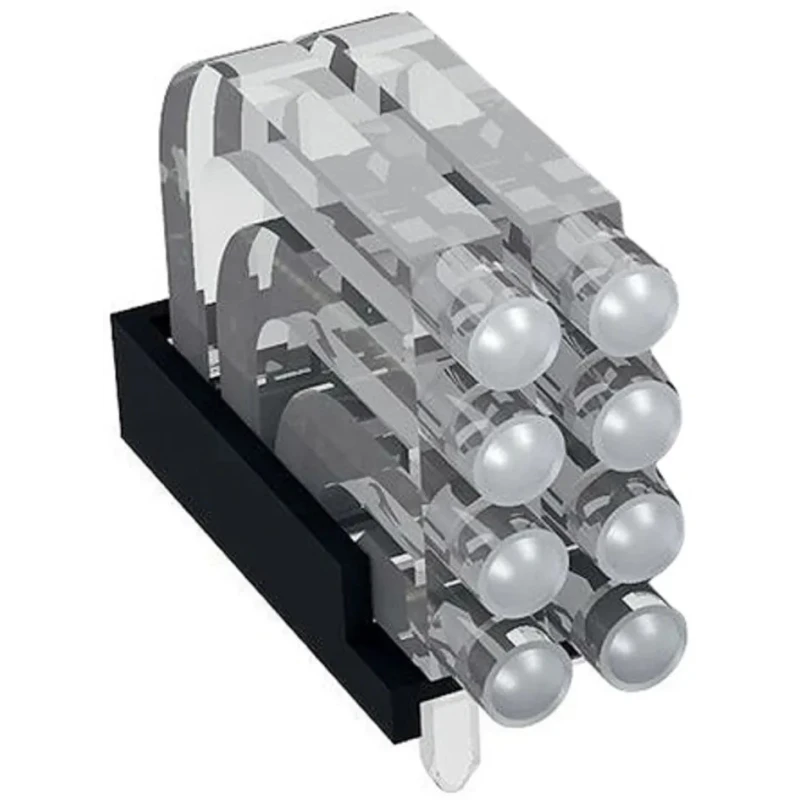

Mentor GmbH Press-In 8-Way Right Angle Rigid LED Light Pipe Clear 16.95mm Length 1296.2024
Specifications
| Country of Origin | Germany |
|---|---|
| Display | screen |
| Brand | Mentor GmbH |
| Orientation | Right Angle |
| Length | 16.95mm |
| Number Of Ways | 8 |
| Mount Type | Press-In |
| Outside diameter | 1.95mm |
| Ambient Temperature | -40°C to +85°C |
| Standards/Approvals | UL94 |
| Flexible/Rigid | Rigid |
| Light Pipe Shape | Dome |
| Number of Light Pipes | 40 |
| Configuration Rows x Columns | 4 x 2 |
| 1296.2024 Mentor GmbH Press-In 8-Way Right Angle Rigid LED Light Pipe ClearBrand | Mentor GmbH |
Key Features
- Features an 8-way configuration with 4 rows and 2 columns of light pipes.
- Measures 16.95 mm in length and has an outside diameter of 1.95 mm.
- Clear PC material with UL94 flame retardant rating.
- Right angle orientation with press-in mount type for secure PCB installation.
- Designed for ambient temperatures from -40°C to +85°C.
- Utilizes a light diffusing screen to prevent unwanted radiation when using different colors.
- Suitable for industrial electronic applications requiring precise LED light guidance.
- Manufactured in Germany ensuring high-quality standards.
Product Description
Mentor GmbH 1296.2024 Press-In 8-Way Right Angle Rigid LED Light Pipe Clear is an optical component engineered to transmit light from surface mount (SMD) LEDs on printed circuit boards to designated user interfaces with minimal luminance loss and no light bleed between adjacent elements.
This product features a rigid construction made of clear polycarbonate material with UL94 certification which ensures flame retardancy and durability. It has an overall length of 16.95 mm and an outside diameter of 1.95 mm, arranged in a horizontal light guide configuration with 4 rows and 2 columns totaling 8 light pipes shaped in a dome form.
The light pipes are mounted using a press-in method offering reliable installation on PCBs, and the right-angle orientation aids in design flexibility. A light diffusing screen is integrated to prevent radiation leakage especially when multiple colors are used in combination, enhancing visual clarity.
This component is rated for use in ambient temperature conditions ranging from -40°C to +85°C, making it suitable for robust industrial electronic applications, including instrument panels, display units, and control systems typically found in manufacturing, laboratory, and commercial electronics environments.
8-way rigid light pipe configuration for effective light guiding. Clear dome-shaped heads provide uniform light transmission. PC material certified UL94 flame retardant for safety. Press-in mount type ensures secure and easy installation on PCBs.
Operates reliably in a wide ambient temperature range. Designed to minimize light bleed and maximize luminance preservation. Manufactured in Germany for quality assurance and performance.
This product is ideal for use in LED lighting assemblies requiring precise, reliable, and high-performance light guides. It supports advanced design needs in electronics manufacturing, lighting solutions, and industrial equipment.
Explore more in the LED Light Pipe category at EnvMart for compatible components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a length of 16.95 mm and an outside diameter of 1.95 mm.
It features an 8-way configuration with 4 rows and 2 columns of light pipes.
It operates effectively in ambient temperatures ranging from -40°C to +85°C.
The light pipe is constructed from clear polycarbonate material, which is UL94 certified for flame retardancy.
It uses a press-in mount type for secure installation on printed circuit boards (PCBs).
This unit has a dome shape, designed to provide uniform light transmission.
It is certified with UL94 standards, ensuring flame retardancy and safety.
It is designed for industrial electronic applications, including instrument panels, display units, and control systems.
This model includes a total of 8 light pipes in its configuration.
It incorporates a light diffusing screen to prevent unwanted radiation and minimize light bleed when using multiple colors.
This light pipe is manufactured in Germany, ensuring high-quality standards.
The light pipe is designed with a right-angle orientation, providing flexibility in design.
