Mentor GmbH Press-In 3-Way Right Angle Rigid LED Light Pipe Clear 1.4 mm 1296.2613

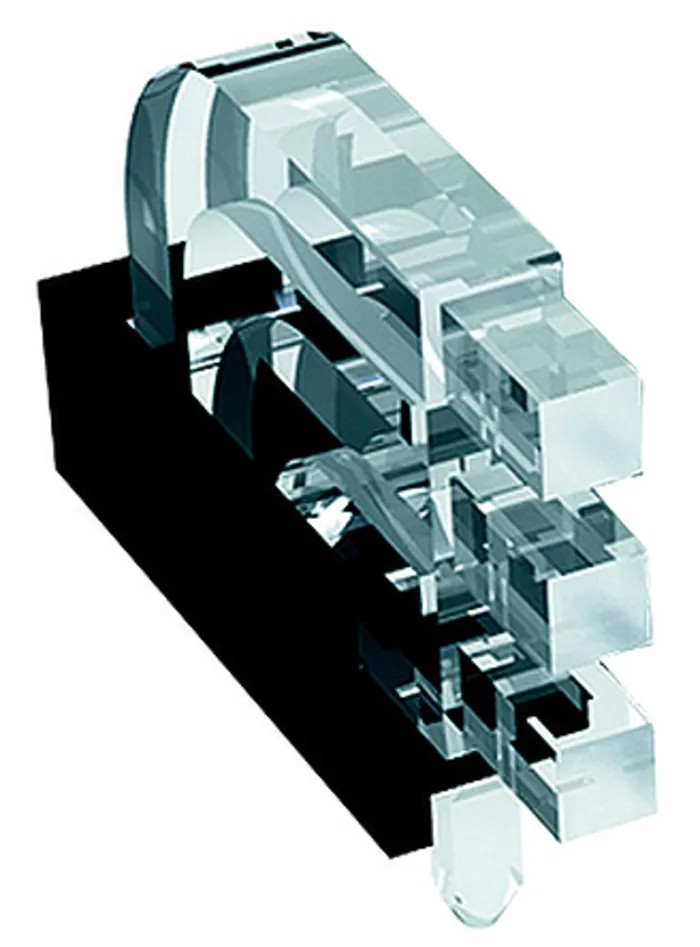

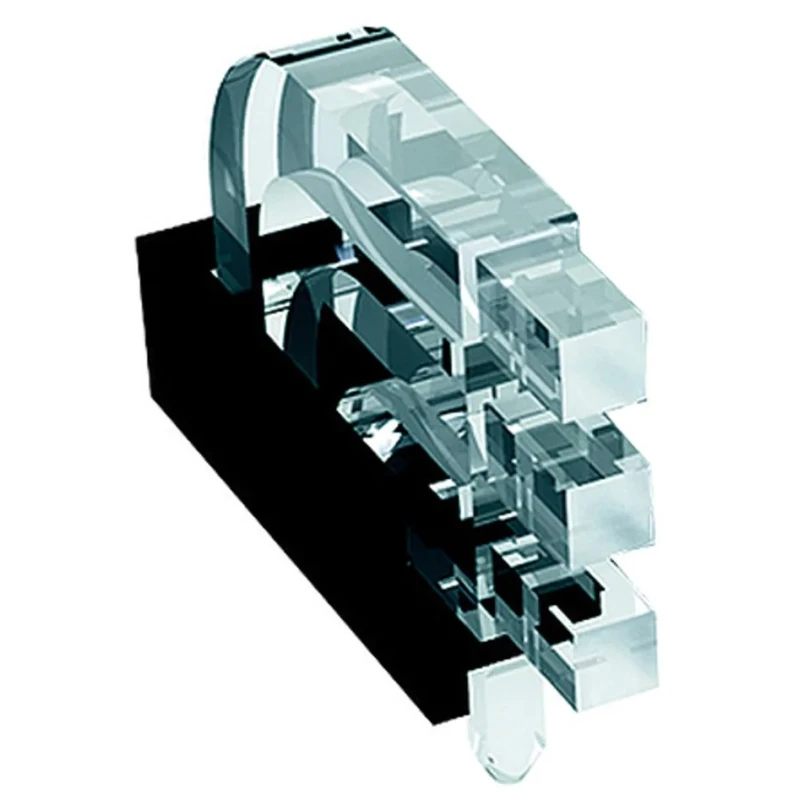

Mentor GmbH 1296.2613 Press-In 3-Way Right Angle Rigid LED Light Pipe is a precision-engineered lighting component for electronics, designed to transmit light efficiently from PCB-mounted LEDs to the user interface. Featuring a rigid polycarbonate body with a clear 1.4 mm square lens, it ensures high luminance transfer with minimal loss and no adjacent light bleed.

The assembly includes three light pipes oriented at a right angle, arranged in a three-row by one-column configuration. The press-in mount facilitates secure and straightforward installation directly on printed circuit boards using push-fit lugs. This product incorporates a light diffusing black screen made from UL94-compliant PC material to prevent unwanted radiation when used with multiple colors.

Built to withstand ambient temperatures from -40°C up to +85°C, this LED light pipe is suitable for industrial, electronic manufacturing, HVAC, and commercial lighting applications. With a compact length of 14.45 mm and an outside diameter of 2.2 mm, it offers versatile use in tight spaces while delivering superior optical performance.

The product conforms to UL94 safety standards, ensuring flame-retardant properties ideal for diverse operational environments. Manufactured in Germany, it maintains high quality and reliability standards mandatory for critical electronic lighting designs.

The product features a rigid, clear polycarbonate light pipe with a 1.4 mm square lens size. It consists of three light pipes arranged in a right-angle orientation for efficient light guiding. The press-in mount type allows easy installation on circuit boards with push-fit lugs.

Material construction includes PC clear UL94 compliant light pipe and PC black UL94 light-diffusing screen. Suitable for ambient temperatures ranging from -40°C to +85°C. The configuration is three rows by one column, with a total of 30 light pipes available in series 1296.

Designed to be used with surface mount device (SMD) LEDs for improved luminance without light bleed. Manufactured in Germany with compliance to UL94 safety standards. Ideal for electronic, industrial, and lighting applications requiring precise, multi-directional LED light transmission.

Explore more components in the LED Light Pipe category to find compatible and complementary parts for your electronic lighting solutions.
