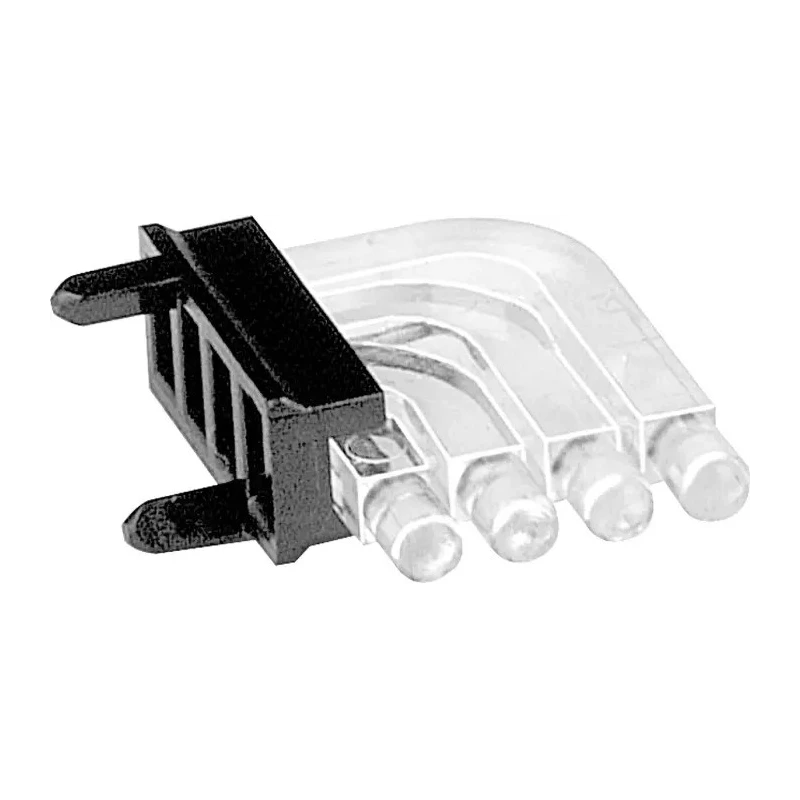

Mentor GmbH Press-In 40-Way Right Angle Rigid LED Light Pipe Clear 1296.1004
Specifications
| Country of Origin | India |
|---|---|
| Display | screen |
| Brand | Mentor GmbH |
| Orientation | Right Angle |
| Length | 15.7mm |
| Number Of Ways | 40 |
| Mount Type | Press-In |
| Outside diameter | 1.95mm |
| Ambient Temperature | -40°C to +85°C |
| Standards/Approvals | UL94 |
| Flexible/Rigid | Rigid |
| Light Pipe Shape | Dome |
| Number of Light Pipes | 4 |
| Configuration Rows x Columns | 4 x 1 |
| Dialight PCB 4-Way Right Angle Rigid LED Light Pipe Clear, 3.1 mmBrand | Dialight |
Key Features
- The rigid light pipe features a right-angle orientation for optimal LED placement.
- Comprised of four rows and 40 ways, suitable for multiple light guide applications.
- Constructed with clear PC material meeting UL94 standards for safety and durability.
- Light pipes have a dome shape with 1.95 mm outside diameter and 15.7 mm length.
- Press-in mount type for easy installation on printed circuit boards.
- No LEDs included; designed to work with surface mount LEDs.
- Operates effectively in ambient temperatures from -40°C to +85°C.
- Employs light diffusing screen technology to prevent light bleed.
Product Description
Mentor GmbH 1296.1004 Press-In 40-Way Right Angle Rigid LED Light Pipe provides reliable and precise light transmission from PCB-mounted surface mount LEDs to user interfaces. Composed of rigid polycarbonate, the light pipe ensures durability and meets UL94 flammability standard.
This product consists of 40 individual light pipes arranged in four rows by one column, each with a dome-shaped light pipe head of 1.95 mm diameter and 15.7 mm length. The right-angle design facilitates efficient LED placement close to the PCB for optimal light injection. Press-in mounts simplify installation by securely fitting onto circuit boards via push-fit lugs.
Operating range extends from -40°C to +85°C ambient temperature, making it suitable for various industrial and electronic applications requiring stable visual indicators. The clear lens color and integrated light diffusing screen minimize light bleed, enabling multiple color use cases without interference.
These light pipes are ideal for industrial electronics, instrumentation displays, telecommunications hardware, and other commercial equipment requiring precise LED indication. Their high electrostatic discharge (ESD) protection ensures safety and longevity in demanding environments.
The rigid polycarbonate body ensures robustness and UL94 safety certification. Right-angle orientation supports versatile PCB layouts and user interface designs. 40-way configuration allows comprehensive visual signaling arrays.
Press-in mount system enables easy board assembly and maintenance. Suitable for applications in industrial controls, HVAC systems, telecommunications, and laboratory equipment. Wide ambient temperature tolerance extends operational reliability in harsh conditions.
Mentor GmbH's LED light pipes deliver superior performance for demanding electronic and industrial display applications. Browse more in the LED Light Pipe category on EnvMart for related products and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The light pipe has a length of 15.7 mm and an outside diameter of 1.95 mm.
It operates effectively in ambient temperatures ranging from -40°C to +85°C.
This model features a configuration of 40 ways arranged in four rows by one column.
It utilizes a press-in mount type for easy installation on printed circuit boards.
The light pipe is constructed from rigid polycarbonate material that meets UL94 flammability standards.
The light pipe has a dome shape, which aids in effective light transmission.
No, the light pipe does not include LEDs; it is designed to work with surface mount LEDs.
It is suitable for industrial electronics, instrumentation displays, telecommunications hardware, and other commercial equipment requiring precise LED indication.
The configuration consists of 4 rows and 1 column, allowing for a comprehensive visual signaling array.
It employs light diffusing screen technology to prevent light bleed, enabling multiple color use cases without interference.
It features high electrostatic discharge (ESD) protection, ensuring safety and longevity in demanding environments.
The country of origin for this product is India.
