STMicroelectronics 32 bit ARM Cortex M0 Microcontroller, 48 MHz, 256 kB Flash, 32 kB RAM, 48-Pin LQFP STM32F030CCT6

STMicroelectronics STM32F030CCT6 is a 32 bit ARM Cortex M0 microcontroller designed for embedded applications requiring efficient processing and moderate memory resources. It operates at a maximum frequency of 48 MHz and includes 256 kB of FLASH program memory and 32 kB of SRAM with hardware parity checking to ensure data integrity.

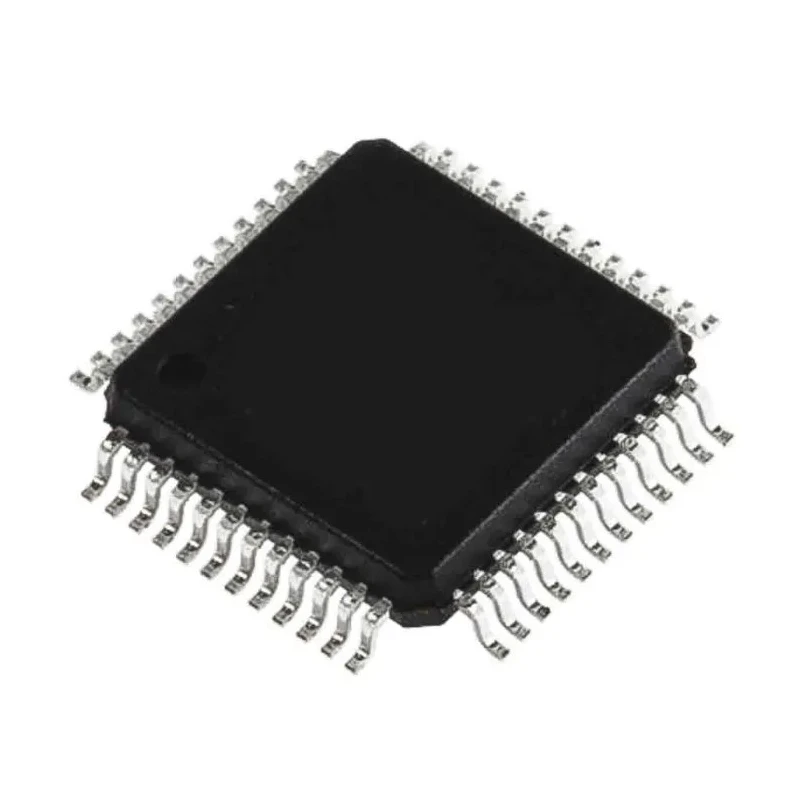

Housed in a compact 48-pin LQFP surface-mount package, this microcontroller supports supply voltages ranging from 2.4 V to 3.6 V, making it suitable for battery-powered and low-voltage applications. It features 12 channels of 12-bit ADC enabling robust analog signal conversion with a voltage conversion range of 0 to 3.6 V.

The device includes multiple timers, encompassing three standard timers and one advanced 16-bit timer capable of six-channel PWM output, facilitating precise motor control and signal generation. Communication peripherals include up to two I2C interfaces, six USART ports supporting synchronous SPI and modem control, and two high-speed SPI interfaces with programmable bit frames, allowing flexible connectivity options.

Additional functionalities include power management with low power modes such as Sleep, Stop, and Standby, a calendar RTC with alarm and periodic wakeup, a 5-channel DMA controller to offload CPU operations, and watchdog timers to improve system reliability. The microcontroller supports RISC instruction architecture ensuring efficient instruction execution.

Operating temperature ranges from -40°C to +85°C, allowing deployment in automotive and industrial environments without sacrificing performance. Its dimensions are 7.2 mm by 7.2 mm with a height of 1.45 mm, conforming to industry-standard footprints for easy PCB integration.

Utilizes Arm® 32-bit Cortex®-M0 CPU operating up to 48 MHz. Integrates 256 kB program memory with FLASH type. Equipped with 32 kB SRAM supporting hardware parity. Features 48 pins in an LQFP surface-mount package. Operates with supply voltage between 2.4 V and 3.6 V.

Includes 12 channels of 12-bit ADC for analog input conversion. Offers multiple timers including an advanced 16-bit timer for PWM outputs. Supports communication interfaces including up to two I2C, six USART, and two SPI interfaces.

Enables low power modes such as Sleep, Stop, and Standby for energy efficiency. Wide operating temperature range from -40°C to +85°C.

This microcontroller is ideal for industrial, laboratory, automotive, and consumer embedded electronics requiring efficient processing with low power consumption and versatile interfacing options.
