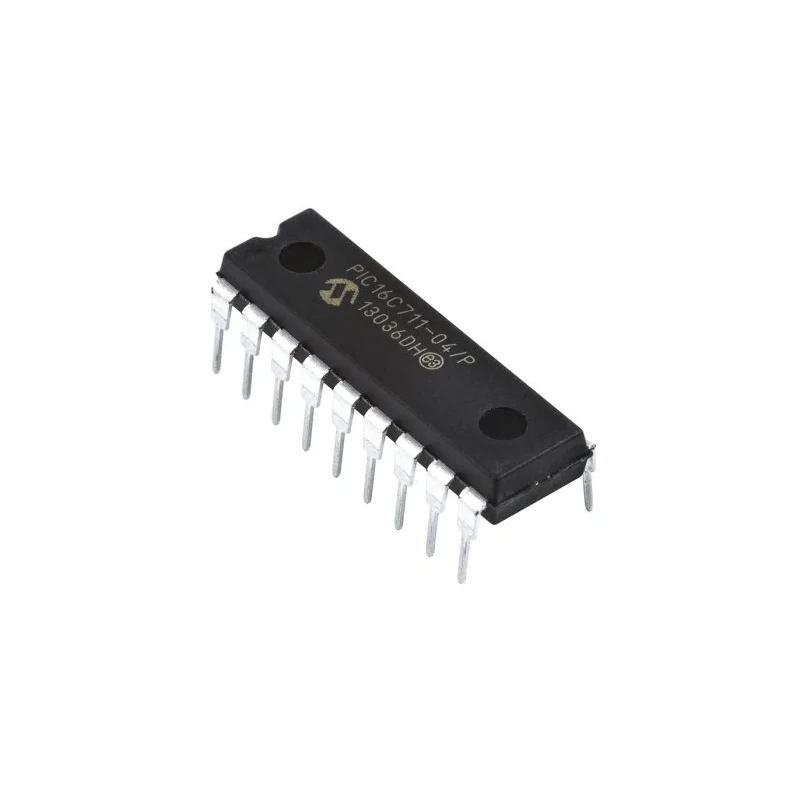

Microchip 8-Bit PIC16C711-04/P Microcontroller 4 MHz 1.75kB EPROM 18-Pin PDIP

Microchip PIC16C711-04/P is an 8-bit CMOS microcontroller belonging to the PIC16C series, designed for legacy applications requiring reliable CMOS architecture. Operating at a maximum clock frequency of 4 MHz and equipped with 1.75kB EPROM, this microcontroller supports embedded system designs with moderate program memory needs. Its 18-pin PDIP through-hole package enables easy prototyping and integration.

The device incorporates a 25 programmable input/output line capacity, supported by 68-bit RAM for data storage. Featuring RISC architecture with a 35-instruction set and eight-level hardware stack, the microcontroller achieves up to 5 MIPS performance. It also includes four channels of 8-bit ADCs, enabling analog signal conversions essential for sensor interfacing.

Additional features include SPI interface for serial communication, two analogue comparators for analog signal comparison, a watchdog timer for system reliability, power-on reset (POR), power-up timer (PWRT), oscillator start-up timer (OST), and brown-out reset (BOR) except for the PIC16C71 model. The device supports operating voltage ranges between 2 V and 5.5 V and operates effectively in temperatures from 0°C to 70°C.

The robust design and feature set make this microcontroller suitable for various industrial, laboratory, and control applications where legacy technology compatibility is required. It provides adequate performance for embedded systems in consumer electronics, automotive, and instrumentation fields adhering to ISO 9001 standards.

The microcontroller supports SPI interface for serial communication. It has 68-bit RAM and 25 programmable I/O pins. Includes 4 channels of 8-bit Analog-to-Digital Converters (ADCs). Built with RISC architecture and operates within 2V to 5.5V supply voltage range.

Provides onboard watchdog timer, power-on reset, and brown-out reset features. Compatible with through-hole mount and housed in an 18-pin PDIP package. Operates reliably between 0°C and 70°C ambient temperature. Designed with 35 instructions and an 8-level hardware stack for efficient computing.

Incorporates two analogue comparators and one 8-bit timer. Explore a wide range of Microcontrollers and semiconductor products at EnvMart for embedded system development and industrial applications.
