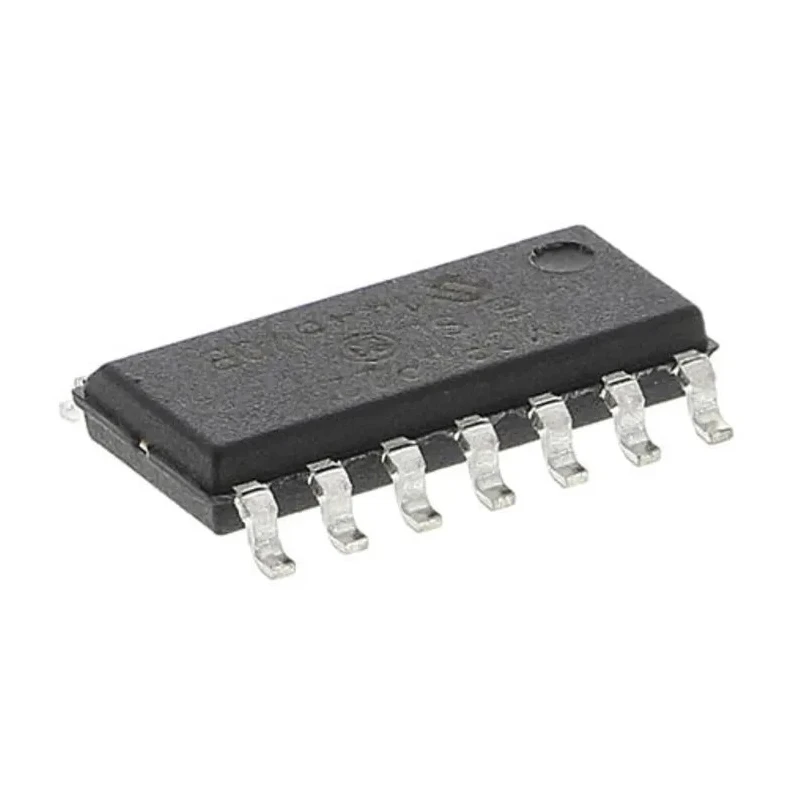

Microchip Digital to Analogue Converter 12 bit 2-Channel SPI, Microwire, 14-Pin SOIC MCP4922-E/SL

Microchip MCP4922-E/SL is a high-performance 12-bit digital to analogue converter (DAC) designed for precision signal generation and control. It features 2 independent channels that can convert digital signals into analogue voltages with high accuracy, ideal for industrial and electronic equipment requiring reliable and fast DAC performance.

This device utilizes a resistor string architecture, ensuring consistent output quality over its operational range. With a supply voltage range from 2.7 volts to 5.5 volts, it is suitable for various power environments. It supports SPI and Microwire interface protocols, facilitating easy integration with microcontrollers and digital systems.

The 14-pin SOIC surface mount package offers a compact footprint with dimensions approximately 8.6mm in length, 3.9mm in width, and 1.7mm in height, enabling efficient PCB layout and space savings. It also supports a wide operating temperature range of -40°C to 125°C, making it reliable for use in harsh industrial and automotive environments.

The DAC features a fast settling time of only 4.5 microseconds, providing quick and accurate output voltage stabilization suitable for real-time control systems. For precise voltage control, an external voltage reference is required, allowing customization based on the application's needs.

Typical applications for the MCP4922-E/SL include industrial automation, instrumentation, signal conditioning, and control systems where high resolution and dual output channels are needed. This DAC is designed to meet rigorous electronics requirements without compromising on performance.

Offers 12-bit resolution output for accurate voltage conversion. Equipped with 2 independent output channels on a single chip. Supports SPI and Microwire communication protocols for interfacing. Operates with supply voltages ranging from 2.7V to 5.5V.

Designed in a compact 14-pin SOIC surface mount package for space-saving. Wide operating temperature range from -40°C to 125°C for industrial applications. Fast settling time of 4.5 microseconds for responsive output changes.

Employs resistor string architecture ensuring stable analogue output voltage. Requires an external voltage reference for precise output control. Explore more Digital to Analogue Converters and related semiconductor components on EnvMart for industrial and laboratory applications.
