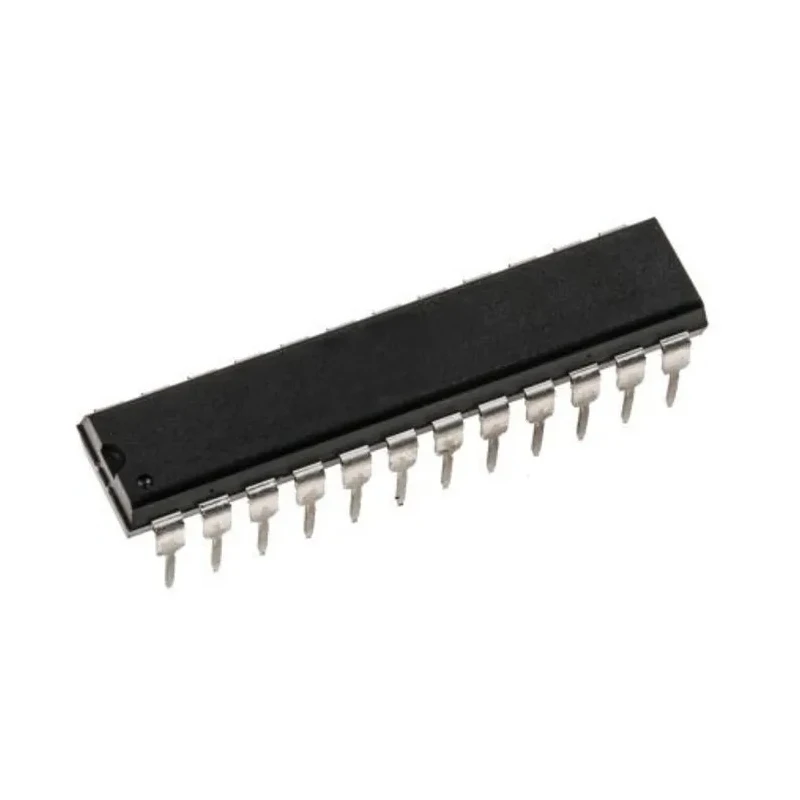

Maxim Integrated Line Transceiver CMOS Inverting 24-Pin PDIP MAX1490AEPG+
Specifications
| Country of Origin | India |
|---|---|
| Brand | Maxim Integrated |
| Height | 5.08mm |
| Length | 32.26mm |
| Model | MAX1490AEPG+ |
| Width | 15.87mm |
| Mount Type | Through Hole |
| Output type | CMOS |
| Series | MAX1490A |
| Input Type | Differential |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Polarity | Inverting |
| IC Type | Line Transceiver IC |
| Pin Count | 24 |
| Maximum Supply Voltage | 6V |
| Logic Family | CMOS/TTL |
| Logic Function | Converter, Driver, Line Driver, Receiver |
| Minimum Supply Voltage | -0.3V |
| Maximum High Level Output Current | 250μA |
| Maximum Propagation Delay Time @ CL | 100ns |
| Supply Current | 150mA |
| MAX1480E/MAX1490E | ±15kV ESD-Protected, Isolated Data Interfaces |
| MAX3157 | High CMRR, Transceiver with ±50V Isolation |
Key Features
- Supports CMOS and TTL logic families ensuring broad compatibility.
- Operates within supply voltage range of -0.3V to 6V with a supply current of 150mA.
- Features a maximum propagation delay of 100ns at capacitive load for efficient signal conversion.
- Employs an inverting logic function suitable for line conversion and driving needs.
- Designed for through hole mounting with a standard 24-pin PDIP package for easy installation.
- Operating temperature range from -40°C to 85°C supports harsh industrial environments.
- Includes integrated ESD protection offering ±15kV protection for isolated data interfaces.
- Compact dimensions of 32.26mm length, 15.87mm width, and 5.08mm height facilitate space-constrained installations.
Product Description
Maxim Integrated MAX1490AEPG+ is a CMOS Line Transceiver IC designed for inverting logic functions and differential input signaling with CMOS output. Packaged in a 24-pin PDIP, it is ideal for automated test equipment, HVAC/building control networks, and industrial-control local area networks.
The transceiver supports CMOS and TTL logic families and ensures low power consumption with a supply current of 150mA operating between -0.3V and 6V supply voltages. Its maximum propagation delay time is 100ns at capacitive loads, making it suitable for precise timing applications.
This device is engineered for through-hole mounting and features compact dimensions suitable for space-constrained applications. It operates reliably over an industrial temperature range of -40°C to 85°C, rated for maximum high-level output current of 250μA.
Key protective features include ±15kV ESD protection for isolated data interfaces, ensuring robust operation in EMI-sensitive environments. Supports CMOS/TTL logic families for versatile interface capabilities. Inverting logic function provides signal conversion and driver functionality.
Compact 24-pin PDIP package supports easy integration into through hole applications. High-level output current rating of 250μA suited for line driving tasks. Wide operating temperature range from -40°C to 85°C ensures reliability in industrial settings.
Integrated electrostatic discharge (ESD) protection enhances device durability. Designed for industrial communications such as automated test equipment and HVAC control. Compact dimensions enable use in space-limited electronics designs.
This line transceiver is a reliable choice for applications requiring isolated data transmission and robust electrical protection in challenging industrial environments. EnvMart offers this Maxim Integrated IC with full technical support and detailed product documentation for optimal system integration.
Explore more products in our Line Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage range of -0.3V to 6V.
The maximum propagation delay time is 100ns at capacitive loads.
It supports both CMOS and TTL logic families, ensuring broad compatibility for various applications.
The maximum high-level output current is rated at 250μA.
The dimensions are 32.26mm in length, 15.87mm in width, and 5.08mm in height.
It is designed for through-hole mounting, making installation straightforward.
The operating temperature range is from -40°C to 85°C, suitable for harsh industrial environments.
It includes integrated ESD protection offering ±15kV protection for isolated data interfaces.
This model employs an inverting logic function suitable for line conversion and driving needs.
The supply current is 150mA, which supports its operation while ensuring low power consumption.
It is ideal for automated test equipment, HVAC/building control networks, and industrial-control local area networks.
It comes in a standard 24-pin PDIP package, facilitating easy integration into various systems.
