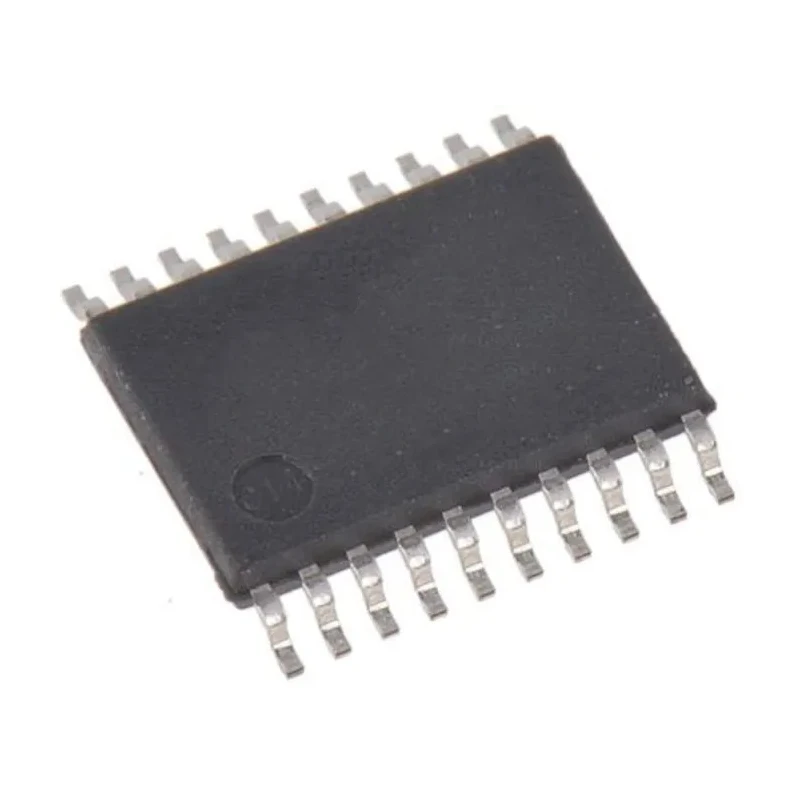

Maxim Integrated Inverting Line Transceiver CMOS/TTL, 20-Pin TSSOP MAX3225EEUP+
Specifications
| Country of Origin | India |
|---|---|
| Brand | Maxim Integrated |
| Height | 1.1mm |
| Length | 6.9mm |
| Model | MAX3225EEUP+ |
| Width | 6.55mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | MAX3225E |
| Input Type | Single Ended |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Polarity | Inverting |
| IC Type | Line Transceiver IC |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CMOS |
| Logic Function | Driver & Receiver |
| Minimum Supply Voltage | 3V |
| Maximum High Level Output Current | -1mA |
| Maximum Propagation Delay Time @ CL | 0.15μs |
| Supply Current | 1μA |
| Maximum Low Level Output Current | 1.6mA |
| MAX3228E/MAX3229E | ±15kV ESD-Protected, +2.5V to +5.5V Transceivers in UCSP™ |
| MAX3380E/MAX3381E | +2.35V to +5.5V, 1μA, 2Tx/2Rx Transceivers with ±15kV ESD-Protected I/O and Logic Pins |
| MAX3222E/MAX3232E/MAX3241E/MAX3246E | ±15kV ESD-Protected, Down to 10nA, +3.0V to +5.5V, Up to 1Mbps, Transceivers (MAX3246E Available in UCSP) |
Key Features
- CMOS logic family with driver and receiver functions.
- Single ended input and CMOS/TTL output ensuring compatibility.
- Operates with supply voltage from 3V to 5.5V.
- Compact surface mount TSSOP package with 20 pins.
- Wide temperature range from -40°C to 85°C for industrial applications.
- Maximum propagation delay time of 0.15 microseconds at CL.
- Extremely low supply current of 1 microampere.
- Designed for space-constrained and low voltage data cable applications.
Product Description
Maxim Integrated MAX3225EEUP+ is an inverting line transceiver integrated circuit featuring CMOS/TTL logic output housed in a 20-pin TSSOP surface mount package. It operates in a supply voltage range of 3V to 5.5V, making it adaptable to various low voltage electronic designs.
This driver and receiver chip supports single-ended input logic and offers rapid signal switching with a maximum propagation delay of 0.15 microseconds under capacitive load, ensuring efficient serial data communication in compact industrial, laboratory, automotive peripherals, and handheld applications.
The MAX3225EEUP+ supports operation within a broad ambient temperature range of -40°C to +85°C, making it suitable for robust environmental conditions often encountered in manufacturing, telecommunications, and computing devices.
CMOS family logic with combined driver and receiver functions. Surface mount TSSOP package designed for space-saving circuitry. Low power consumption with a supply current of just 1 microampere. 20 pins provide necessary interfaces for reliable line interfacing.
Dimensions including length 6.9 mm, width 6.55 mm, and height 1.1 mm allow compact PCB footprint. Designed for inverting signal polarity suitable for certain data protocols. Maximum output currents: -1 mA (high level) and 1.6 mA (low level).
Ideal for applications such as automotive equipment, battery-powered devices, handheld and portable electronics, cellular phones, and various computing peripherals.
The MAX3225EEUP+ series includes variants suited for space-constrained applications with ±15kV ESD protection and low supply currents optimized for power-sensitive environments. This product is widely used in interface ICs segment in the electronics and electricals industrial domain.
Explore more Maxim Integrated semiconductor products at EnvMart for your industrial and commercial electronic design needs.
Explore more products in our Line Interface ICs category.
