Microchip dsPIC33EV 5V CAN-LIN Starter Kit Motor Control Development Kit DM330018

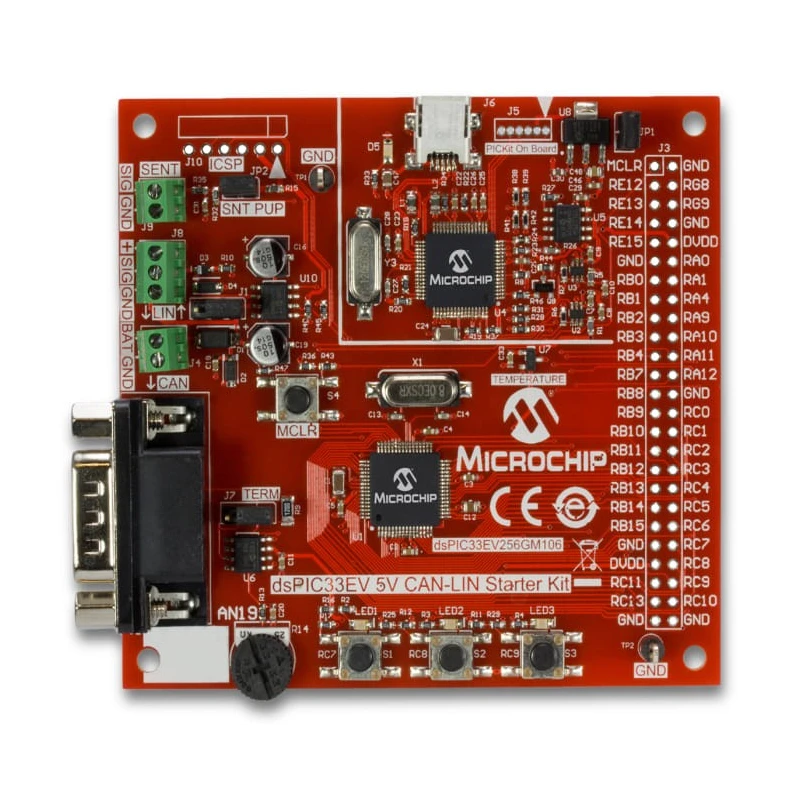

Microchip DM330018 dsPIC33EV 5V CAN-LIN Starter Kit is a comprehensive motor control development platform featuring the dsPIC33E digital signal controller designed specifically for automotive and motor control applications.

This development kit allows engineers and students to explore CAN, LIN, and SENT communication protocols through dedicated on-board data ports. It includes a built-in PICkit on-board (PKOB) USB programmer and debugger, providing seamless programming without requiring additional hardware.

Key hardware includes 1 CAN module with 32 buffers and 16 receive filters, 2 SENT modules enabling single edge nibble transmission, and 2 UARTs with support for LIN and J2606 automotive protocols. The kit also features SPI and I2C serial interfaces for expanded connectivity.

Integrated analog peripherals such as a high-speed 10/12-bit A/D converter with multiple input channels, a charge time measurement unit (CTMU), and an analog temperature sensor (MCP9701A) add precision sensing capabilities. Six PWM outputs enable complex motor control waveforms.

Connectivity is enhanced with a CAN interface (MCP2561) equipped with a DB9 male connector and a LIN interface (MCP2021A) including the required interface electronics. User interaction is facilitated by three general purpose LEDs and momentary push buttons.

The kit’s USB chargeable design and compliance with CE and FCC standards make it suitable for a range of industrial and educational scenarios. The kit features a digital signal controller (DSC) optimized for motor control and automotive communication protocols.

Supports CAN, LIN, and SENT serial data formats for versatile communication. Includes on-board PICkit programmer/debugger for easy USB programming. Equipped with multiple interfaces including SPI, I2C, UART with LIN/J2606 support.

Contains analog temperature sensor, charge time measurement unit, and 10/12-bit A/D converter for precise sensing. Offers 6 pulse-width modulation (PWM) outputs for advanced motor control. Includes CAN interface with DB9 connector and LIN interface with dedicated electronics.

Three general purpose LEDs and buttons allow user interaction and testing. Certified to CE and FCC standards ensuring compliance and reliability. Ideal for educational institutions, robotics, electronics labs, and industrial embedded development.

This motor control starter kit is widely used in embedded development for automotive, robotics, automation, and educational sectors. Its robust feature set and comprehensive protocols make it essential for professional engineers and learners alike.
