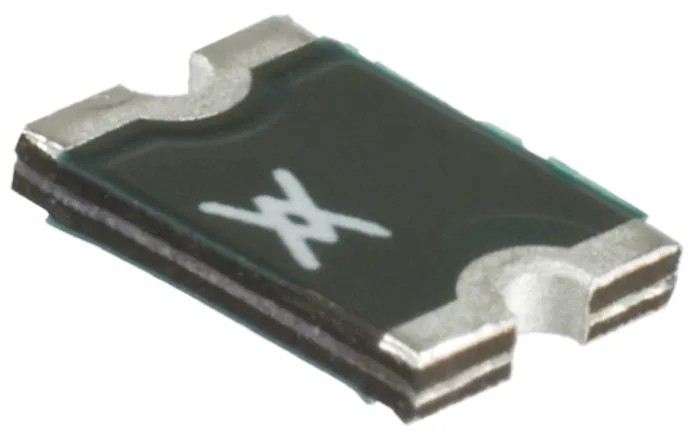

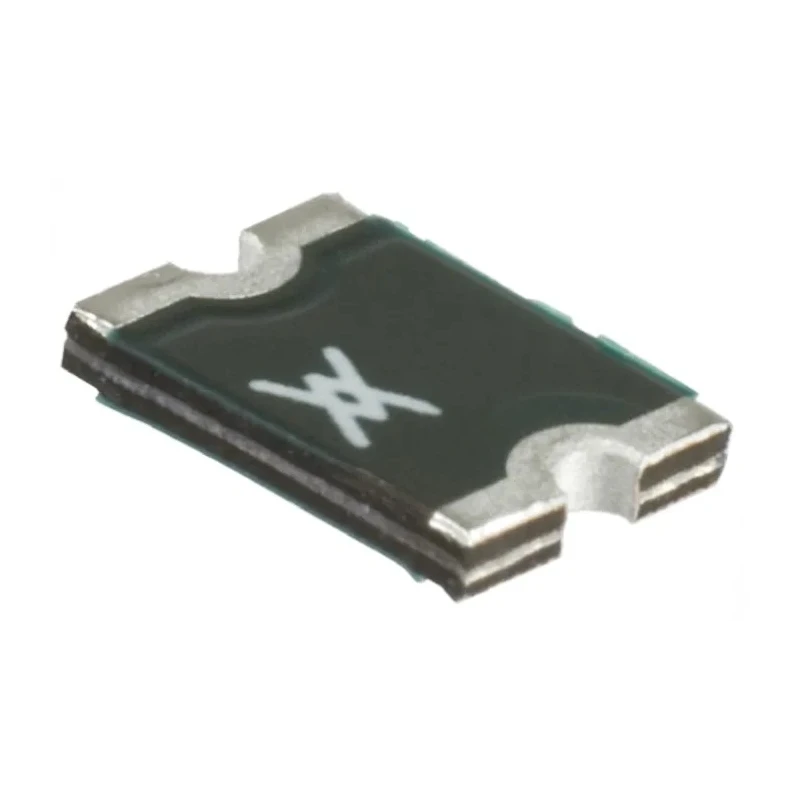

Littelfuse 0.75 A Resettable Fuse 24V DC MiniSMDC Series Surface Mount Circuit Protection MINISMDC075F/24-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 24V dc |
| Brand | Littelfuse |
| Height | 4.83mm |
| Length | 3.41mm |
| Model | MINISMDC075F/24-2 |
| Width | 1.46mm |
| Current Rating | 40A |
| Series | miniSMDC |
| Maximum Operating Temperature | 85°C |
| Package Type | Reel |
| Minimum Operating Temperature | -40°C |
| Package Size | 1812 |
| Trip Current | 1.5A |
| Power Dissipation | 0.8W |
| Terminal Material | Tin |
| Standards/Approvals | CSA, TUV, UL, RoHS |
| Time to Trip | 0.3s |
| Hold Current | 0.75A |
| Minimum Resistance | 0.09Ω |
| Maximum Resistance | 290mΩ |
Key Features
- PolySwitch Mini SMDC series provides effective circuit protection for electronic devices.
- Rated for a trip current of 1.5A with a fast 0.3 second time to trip.
- Compact surface-mount design with dimensions 3.41mm length, 4.83mm height, and 1.46mm width.
- Halogen free and RoHS compliant for environmentally responsible usage.
- Suitable for computer, automotive, telecommunications, and consumer electronics applications.
- Features automatic reset after fault removal, allowing maintenance-free operation.
- Terminal material is tin ensuring reliable soldering and connectivity.
- Operates within a wide temperature range from -40°C to 85°C.
Product Description
Littelfuse MINISMDC075F/24-2 Resettable Fuse belongs to the PolySwitch Mini SMDC series featuring surface-mount technology optimized for efficient circuit protection in various industries including consumer electronics, automotive, computer hardware, and telecommunications. Designed for 24V DC operation with a hold current of 0.75 A, this fuse safeguards against overcurrent conditions.
The device trips quickly within 0.3 seconds at 1.5 A trip current to prevent circuit damage. Its compact footprint with precise dimensions of 3.41mm length, 4.83mm height, and 1.46mm width allows for dense PCB layouts. The tin-plated terminals assure robust electrical connections.
Environmental compliance is assured as the fuse is halogen free and RoHS certified, supporting modern manufacturing standards. It operates reliably over an extensive temperature range from -40°C up to 85°C, making it suitable for harsh environments.
Its automatic reset function enables thousands of cycles without replacement, reducing maintenance costs and downtime. The power dissipation of 0.8W ensures efficient thermal management during operation.
Typical applications include security systems, power supplies, transformers, power switching devices, automotive equipment, medical instrumentation, control systems, computer peripherals, audio visual devices, and telecommunication equipment.
PolySwitch Mini SMDC series offers effective circuit protection solutions. Fast 0.3 second trip time enhances safety during electrical overloads. Small footprint fits compact consumer and industrial equipment. Environmental safety with RoHS compliance and halogen-free materials.
Automatic reset capability allows maintenance-free protection over many cycles. Wide operating temperature range from -40°C to 85°C. Reliable tin terminals provide excellent soldering and connection durability. Power dissipation rating of 0.8W for optimal energy handling.
Suitable in diverse industries including automotive, electronics, telecommunication, and computing. Explore more Littelfuse Resettable Fuses and circuit protection products on EnvMart for your industrial, commercial, and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The hold current rating of this model is 0.75 A.
It has a trip current of 1.5 A, which allows it to trip quickly to prevent circuit damage.
This unit has dimensions of 3.41 mm in length, 4.83 mm in height, and 1.46 mm in width.
The maximum operating temperature for this resettable fuse is 85°C.
The time to trip for this model is 0.3 seconds at the specified trip current.
It is rated for 24V DC operation, making it suitable for various electronic applications.
The terminals of this fuse are made from tin, ensuring reliable soldering and connectivity.
Yes, it is halogen-free and RoHS compliant, supporting environmentally responsible usage.
The power dissipation rating is 0.8 W, which helps in efficient thermal management during operation.
This model is suitable for applications in automotive, telecommunications, computer hardware, and consumer electronics.
The minimum operating temperature for this resettable fuse is -40°C.
This fuse meets CSA, TUV, UL standards, and is RoHS compliant.
