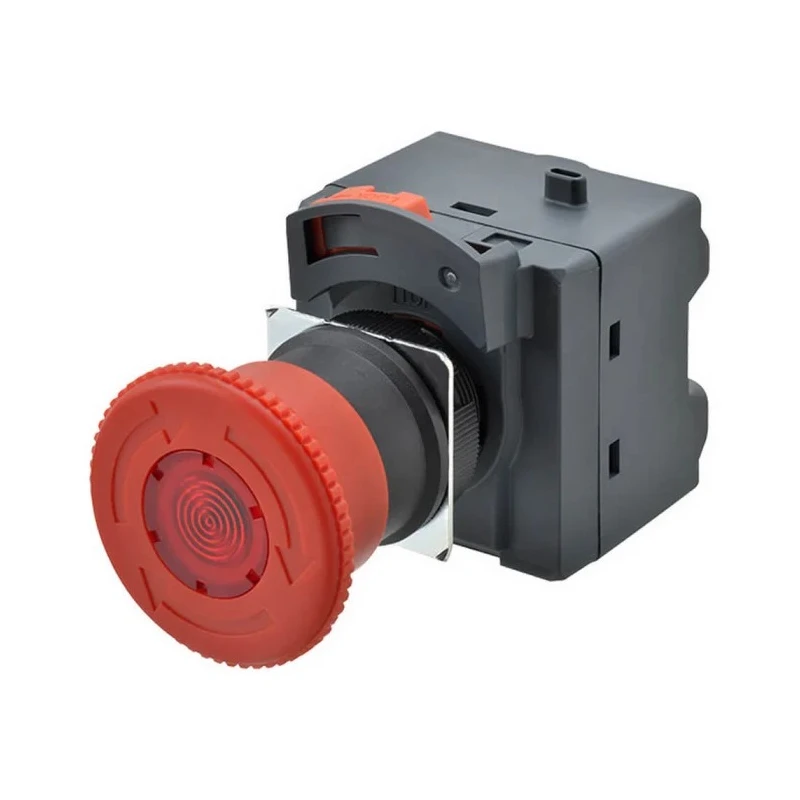

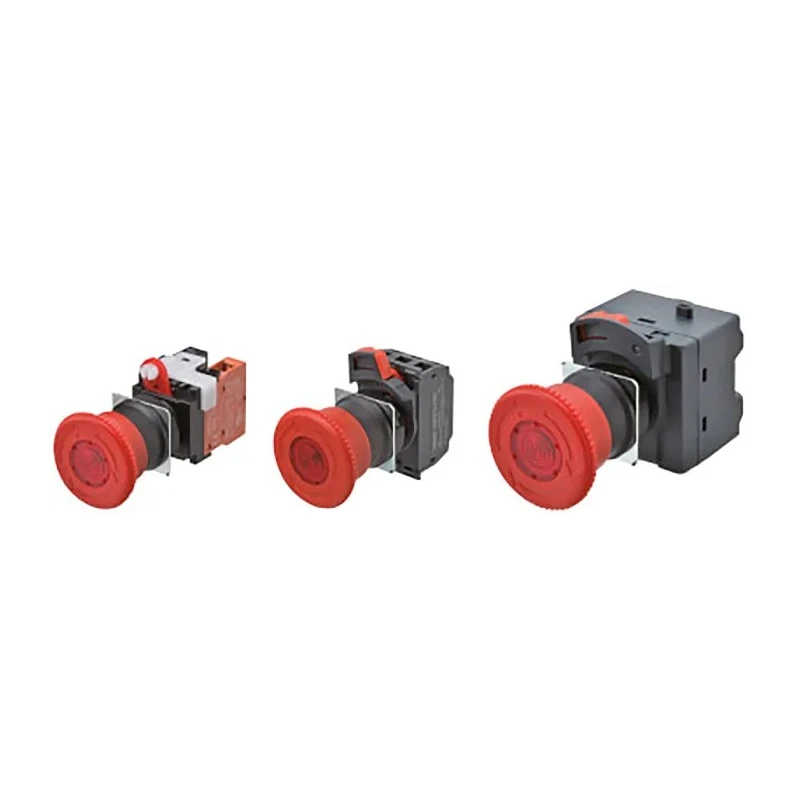

Omron Turn to Reset Illuminated Emergency Stop Push Button Panel Mount 22mm Cutout 2 NC Contacts IP65 A22NE-PD

Omron A22NE-PD Series Turn to Reset Illuminated Emergency Stop Push Button is a panel mount push button designed for industrial safety applications. With a 22mm cutout diameter, this emergency stop button features a highly visible illuminated red mushroom head for immediate identification and includes a turn-to-reset mechanism to prevent accidental restarts after actuation.

The device includes two normally closed (2 NC) safety contacts delivering positive safety switching for stop circuits. It is rated to handle up to 250V AC and DC voltages with a contact current of 5A, supporting moderate load interruptions in demanding industrial environments.

The IP65-rated enclosure protects against dust ingress and water jets, making this push button suitable for harsh conditions in manufacturing, automation, and control systems. The push-in plus terminals allow fast and secure wiring for reliable connections in control panels and machinery.

The 40mm mushroom head and 87mm depth provide ergonomic and easy activation, essential for emergency shutdowns on automated assembly lines, machine tools, and conveyor systems. Compliance with safety standards such as CCC, CE, cULus, and TUV ensure adherence to global safety requirements.

Applications include emergency shutdown in automated systems, control panels for machine tools and presses, conveyor safety, and robotics workcells where illuminated status indication is required. The turn-to-reset function mandates a clockwise rotation of the button to release the latch and reset the device, preventing inadvertent restarts.

Provides reliable emergency stop functionality with turn-to-reset actuation. Illuminated red mushroom head enhances visibility in low-light conditions. Panel mount design with 22mm cutout suits industrial control panels.

IP65 rating offers protection against dust ingress and water jets. Two normally closed (2 NC) contacts support positive safety switching. Push-in terminals enable fast and secure electrical connections. Rated for switching 250V AC/DC with a 5A contact current capacity.

40mm head diameter allows rapid manual activation. Depth of 87mm facilitates installation into standard control panels. Complies with CCC, CE, cULus, and TUV standards.
