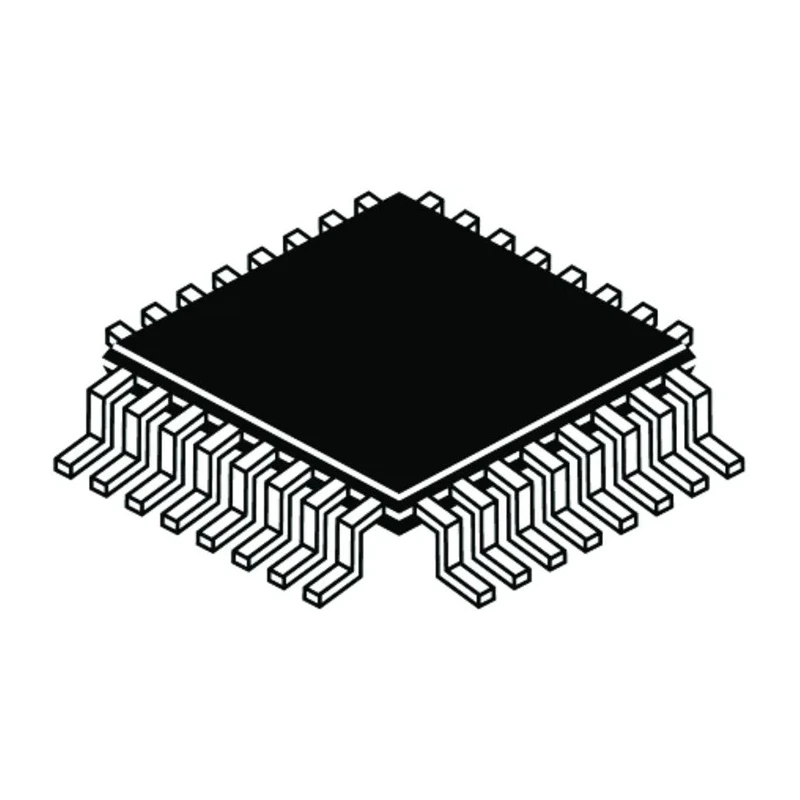

STMicroelectronics STM32F0 Series Microcontroller 32 bit ARM Cortex M0 48 MHz 32kB FLASH 32-Pin LQFP STM32F030K6T6TR
Specifications
| Country of Origin | India |
|---|---|
| Frequency | 48 MHz CPU |
| Brand | STMicroelectronics |
| Height | 1.45mm |
| Temperature range | -40 to +85 °C |
| Length | 7.2mm |
| Model | STM32F030K6T6TR |
| Width | 7.2mm |
| Mount Type | Surface |
| Series | STM32F0 |
| Maximum Operating Temperature | 85°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 4kB |
| Flash Memory | up to 64 Kbytes |
| Standards/Approvals | FBI |
| Pin Count | 32 |
| Maximum Supply Voltage | 3.6V |
| Maximum Power Dissipation Pd | 357mW |
| Minimum Supply Voltage | 2.4V |
| Device Core | ARM Cortex M0 |
| Program Memory Size | 32kB |
| Maximum Clock Frequency | 48MHz |
| Number of Timers | 4 |
| Instruction Set Architecture | RISC |
| ADCs | 12 x 12 Bit |
| Program Memory Type | FLASH |
| SRAM | up to 8 Kbytes |
Key Features
- Equipped with an ARM Cortex M0 32-bit RISC core delivering efficient performance.
- Operates at a maximum frequency of 48 MHz for responsive processing.
- Includes 32kB of flash memory and 4kB SRAM for embedded applications.
- Supports up to 3.6V maximum supply voltage and functions between -40°C to 85°C.
- Features 12 channels of 12-bit ADC and 4 built-in timers for analog and timing functions.
- Surface mount LQFP package with 32 pins and dimensions 7.2mm x 7.2mm x 1.45mm.
- Designed for low power consumption with a maximum power dissipation of 357 mW.
- Compatible with all ARM tools and suitable for embedded control, user interfaces, and consumer electronics.
Product Description
STMicroelectronics STM32F030K6T6TR is a 32-bit ARM Cortex M0 microcontroller in the STM32F0 series, offering a 48 MHz CPU with 32kB FLASH memory in a compact 32-pin LQFP surface mount package. This microcontroller combines a low-power ARM Cortex-M0 32-bit RISC core with embedded flash and SRAM, optimized for embedded applications requiring real-time performance, energy efficiency, and a rich peripheral set.
The device supports supply voltages from 2.4V to 3.6V and operates reliably within the industrial temperature range of -40°C to 85°C. It integrates 12 channels of 12-bit ADC, 4 timers including advanced control PWM timers, and multiple communication interfaces like I2C, SPI, and USART, making it versatile for complex control tasks.
This microcontroller is designed to enable low power applications with enhanced embedded memory and peripheral integration. Its surface mount LQFP package (7.2mm x 7.2mm x 1.45mm) makes it ideal for compact electronics.
Typical use cases include application control and user interface for handheld devices, audio/video receivers, PC peripherals, gaming consoles, consumer appliances, printers, alarm systems, and HVAC controls.
The STM32F030K6T6TR is compliant with FBI standards and is fully compatible with ARM development tools and software ecosystems, facilitating efficient design and prototyping. Equipped with ARM Cortex M0 32-bit RISC core for efficient embedded processing.
Operates at a maximum clock frequency of 48 MHz. Features 32kB FLASH memory and 4kB SRAM for program and data storage. Supports a supply voltage range of 2.4 to 3.6 volts. Includes 12 channels of 12-bit ADC and 4 timers for versatile timing and analog functions.
Compact 32-pin LQFP surface mount package measuring 7.2 x 7.2 x 1.45 mm. Robust operating temperature range from -40°C to 85°C suitable for industrial environments. Maximum power dissipation of 357 mW ensuring efficient thermal management.
Ideal for embedded control in industrial, consumer, and communication applications. Explore the range of STMicroelectronics Microcontrollers and components available at EnvMart for your next embedded project or industrial application.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STM32F030K6T6TR operates at a maximum clock frequency of 48 MHz.
This microcontroller operates reliably within a temperature range of -40°C to 85°C.
It includes 32kB of flash memory for program storage.
The STM32F030K6T6TR comes in a 32-pin LQFP (Low-Profile Quad Flat Package).
The maximum supply voltage supported by this model is 3.6V.
It features 12 channels of 12-bit ADC.
This model has 4kB of SRAM available for data storage.
It includes 4 built-in timers, including advanced control PWM timers.
The maximum power dissipation for the STM32F030K6T6TR is 357 mW.
It is based on the ARM Cortex M0 32-bit RISC core architecture.
This microcontroller supports multiple communication interfaces including I2C, SPI, and USART.
The LQFP package measures 7.2mm x 7.2mm.
