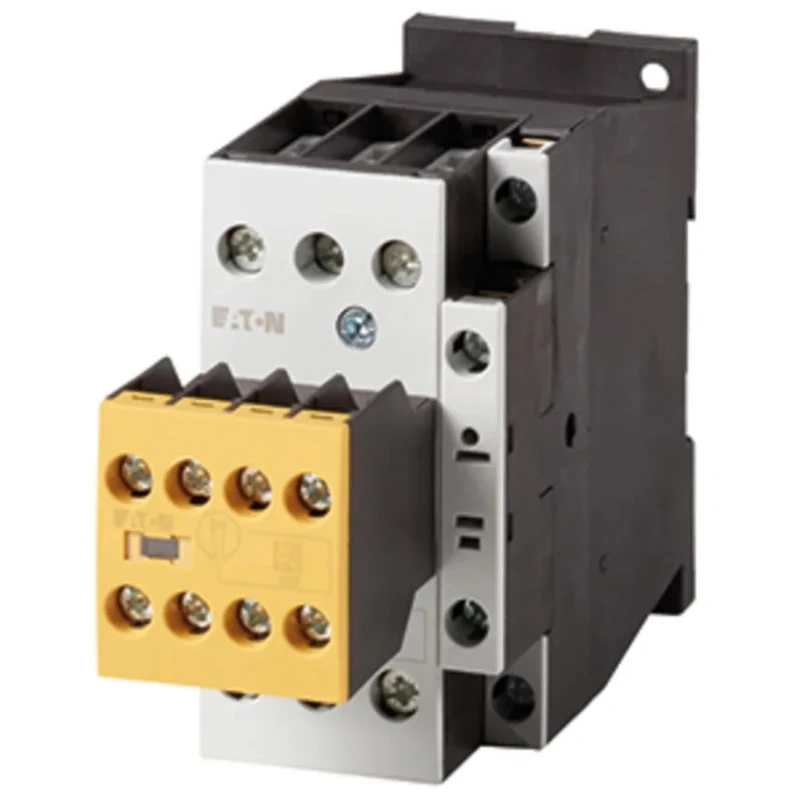

Eaton DILMS Safety Contactor 3-Pole, 24/27V DC Coil, 18A, 7.5kW, 3 NO, 400V AC 191724 DILMS17-R23(RDC24)

Eaton 191724 DILMS17-R23(RDC24) Safety Contactor is a 3-pole device operating with a coil voltage of 24/27V DC, capable of handling a contact voltage of 400V AC and contact current rating of 18A. It is designed for safety-critical machine control circuits and emergency-stop applications with controlled start (category 4).

This contactor features an integrated top-mounted auxiliary contact that is non-detachable and located at the front, ensuring safe operation. The device incorporates mirror contacts and interlocked opposing contacts that enhance safety by preventing manual activation, which is visible through the built-in inspection window above the switch-position indicator.

The yellow RAL1004 cover allows quick and easy visual identification in control panels. This model is suitable for DIN rail mounting and includes screw clamp terminals for secure and reliable wiring. Operating ambient temperatures range from -25°C to 60°C, making it versatile for various industrial environments.

The DILMS series caters to power ratings from 7 kW to 150 A current range, with this model rated at 7.5 kW. The robust construction complies with CSA, IEC, and UL standards, making it ideal for industrial, manufacturing, automation, electrical systems, and HVAC applications where safety and reliability are paramount.

Dimensions of the contactor are 138mm (width) x 85mm (depth) x 56mm (length), providing a compact footprint. The product is manufactured in Romania, ensuring quality and conformity with international industrial standards.

Features a 3-pole configuration with 3 normally open (NO) contacts. Equipped with 5 auxiliary contacts, configured as 2 NO and 3 normally closed (NC). Suitable for safety applications with DIN rail mount type. Includes a top-mounted, non-detachable auxiliary contact for enhanced safety.

Rated operational current of 17A and operating temperatures from -25°C to 60°C. Built with screw clamp terminal type for reliable wiring connections. Incorporates a yellow cover for easy identification and an inspection window for monitoring operating status.

Meets CSA, IEC, and UL standards for industrial safety compliance. Compact size with dimensions 138mm width, 85mm depth, and 56mm length. Manufactured in Romania and designed for reliable machine control and emergency-stop applications.
