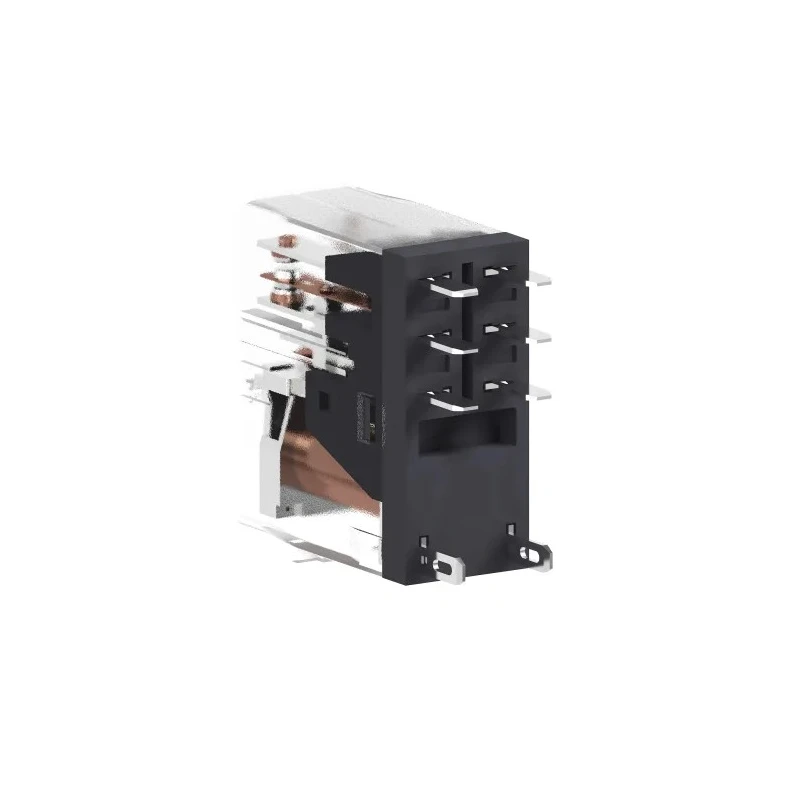

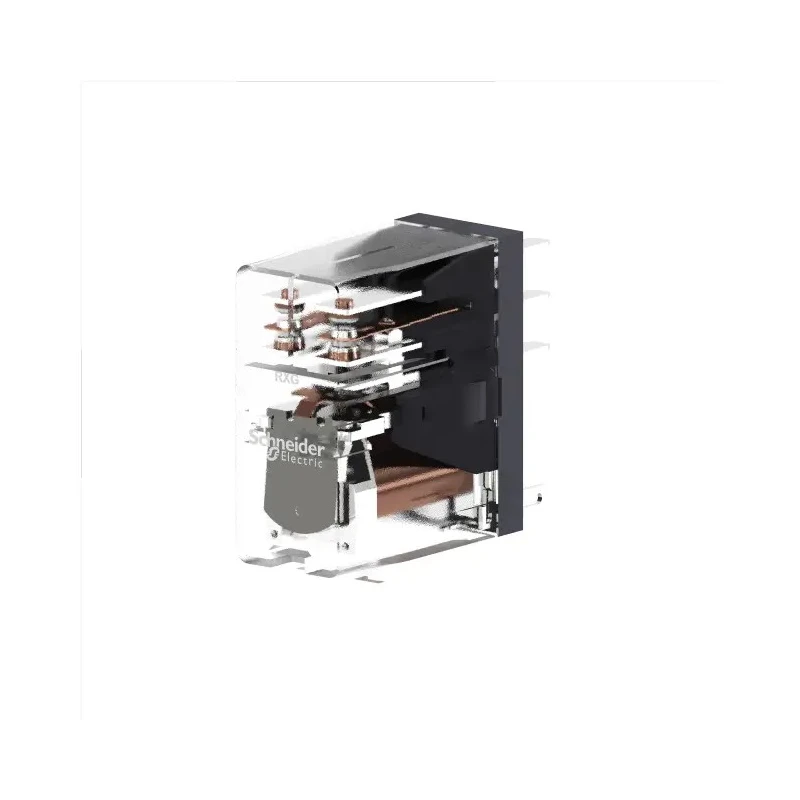

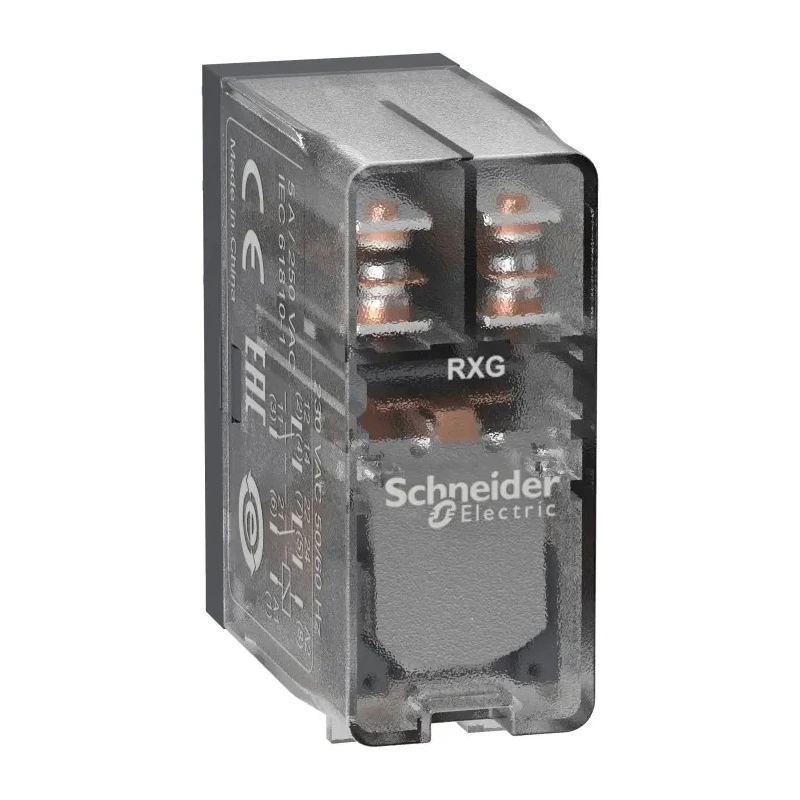

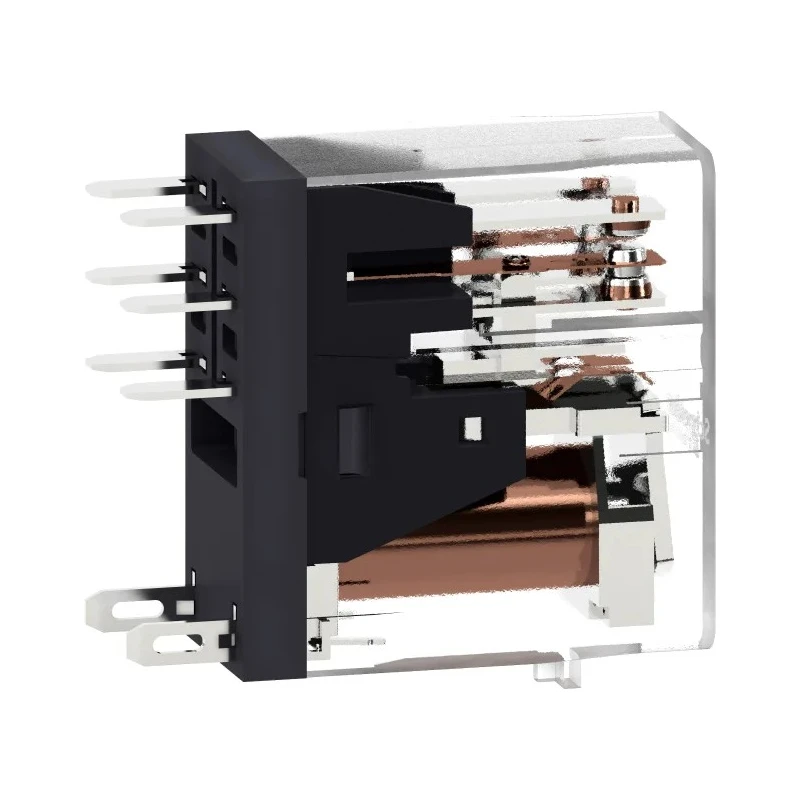

Schneider Electric Power Relay 230V AC Coil 5A Switching Current DPDT Harmony Relay RXG RXG25P7

Schneider Electric RXG25P7 Power Relay is a high-quality, industrial-grade relay designed for automation, electrical control, and signal conditioning applications. Featuring a coil voltage of 230V AC and a switching current rating of 5A, it provides reliable performance for controlling electrical circuits.

This dual pole double throw (DPDT) relay belongs to the Harmony Relay RXG series, renowned for its compact design and durability. The plug-in terminal type ensures quick and secure installation in control panels and industrial equipment.

Operating reliably within a wide temperature range from -40°C to 70°C, this relay is suitable for tough operational environments. The silver alloy contact material minimizes electrical resistance, enhancing conductivity and reducing energy loss.

With a coil resistance of 23.5kΩ and coil power of only 820mW, the RXG25P7 operates efficiently with minimal power consumption. Its compact size, with dimensions of 29mm height, 30.8mm width, and 13mm length, contributes to space-saving in control cabinets.

The relay is rated for switching AC voltage up to 250V and DC voltage up to 30V, allowing versatile use across various industrial applications. CE and CSA certification indicates compliance with international safety and performance standards.

Built for industrial automation, manufacturing equipment, and programmable logic controller (PLC) interfaces, this relay improves machine reliability and operational safety. The transparent cover provides visual contact status monitoring, facilitating maintenance and troubleshooting.

Overall, the Schneider Electric RXG25P7 Power Relay is a dependable component for electrical control systems, designed to optimize performance and ensure safety in industrial environments.

It belongs to the Harmony Relay RXG series designed for reliable industrial use. The relay has a plug-in terminal type for easy installation and replacement. Operating temperature ranges from -40°C to 70°C, suitable for harsh environments.

The relay contact material is silver alloy, ensuring high conductivity and durability. Contact resistance is low at 100mΩ for efficient signal transfer. The coil power consumption is 820mW, optimizing power use. Compact dimensions: Height 29mm, Width 30.8mm, Length 13mm.

It conforms to CE and CSA standards for safety and quality assurance. The product is made in China and is intended for industrial automation and control applications. Explore more Schneider Electric Power Relays and related electrical components at EnvMart to enhance your automation and control systems.
