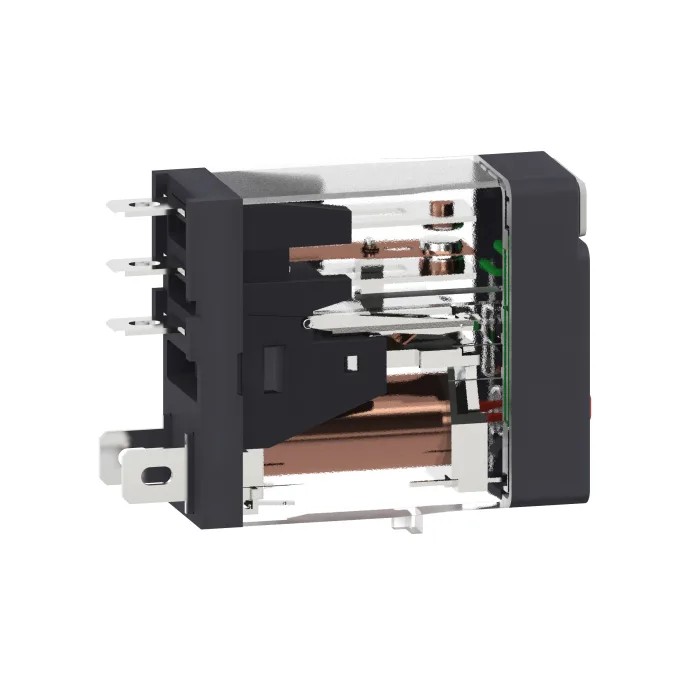

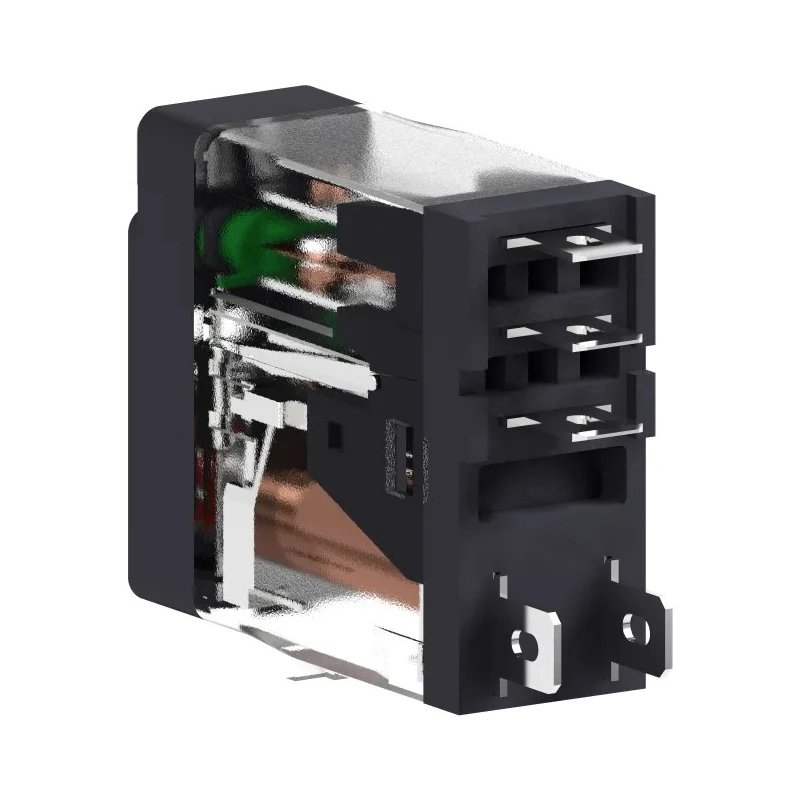

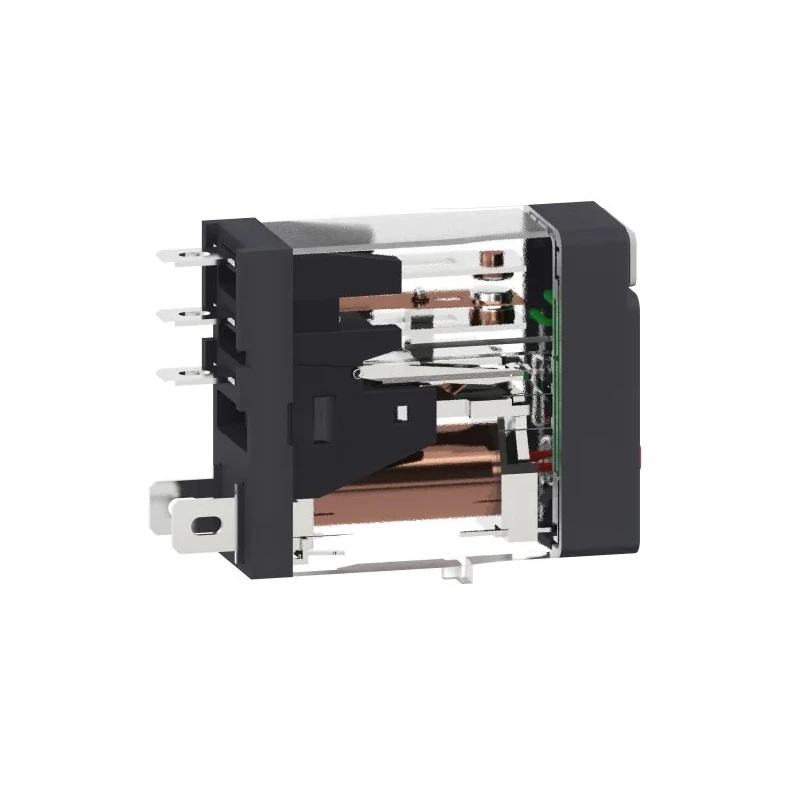

Schneider Electric Power Relay 230V AC Coil 10A Switching Current SPDT RXG12P7

Schneider Electric RXG12P7 Power Relay features a 230V AC coil and a single pole double throw (SPDT) contact configuration. It is engineered for reliable switching operations with a current rating of 10A, making it suitable for various industrial, automation, and control applications including PLC interfacing.

This relay belongs to the Harmony Relay RXG series and offers plug-in terminal connection for convenient mounting and replacement. The compact dimensions (37.1mm high, 13mm long, 30.6mm wide) allow it to fit into tight spaces, aiding enclosure size reductions.

The coil resistance is 23.5kΩ with a coil power of 820mW, ensuring efficient power usage. It operates reliably across a wide temperature range from -40°C to 70°C, supporting demanding environments.

Contacts are made from silver alloy to ensure durability and low contact resistance of 100mΩ, supporting switching AC voltages up to 250V and DC voltages up to 30V. The relay also complies with CSA and CE safety and quality standards.

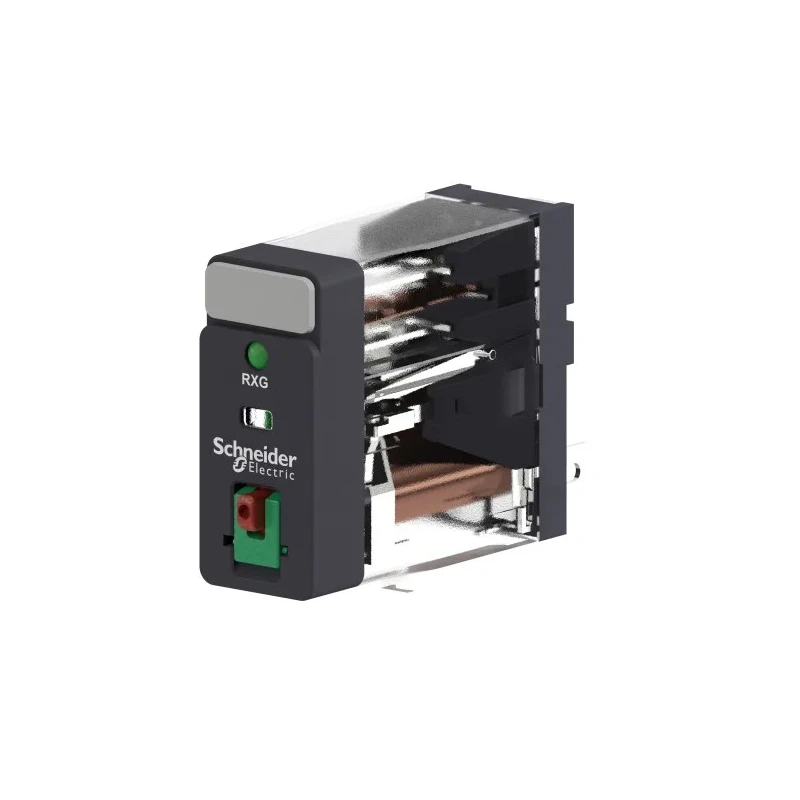

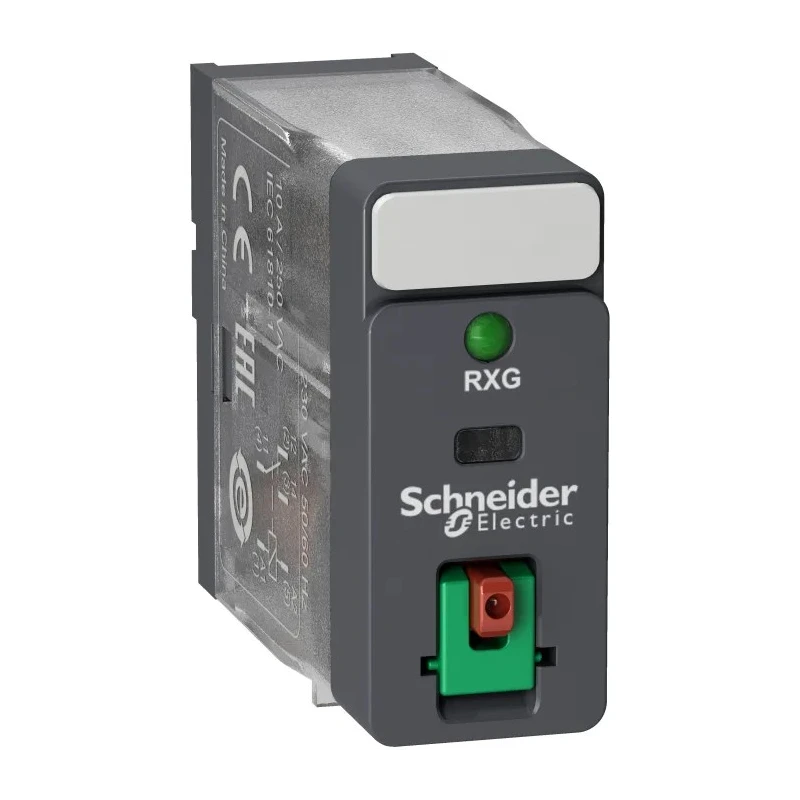

Designed for easy maintenance, the relay incorporates features such as a lockable test button and LED indicator for status display, visible both day and night. Additional benefits include environmentally conscious design that promotes disassembly and component recycling.

This Schneider Electric RXG12P7 Power Relay is ideal for applications in industrial automation, manufacturing, HVAC controls, electrical switchgear, and other commercial or laboratory electrical systems requiring dependable switching performance.

Operates at 230V AC coil voltage for versatile electrical applications. Single Pole Double Throw (SPDT) contact configuration ensures switching flexibility. Switching current rated at 10A suitable for moderate load control.

Compact dimensions with 37.1mm height, 13mm length, and 30.6mm width for space saving. Coil resistance of 23.5kΩ and coil power consumption of 820mW for efficient energy use. Designed for harsh environments with operating temperature range from -40°C to 70°C.

Silver alloy contact material provides durability and minimal contact resistance of 100mΩ. Plug-in terminal type enables easy installation and maintenance. Complies with CSA and CE standards for quality assurance. Eco-friendly design supporting disassembly and recycling initiatives.
