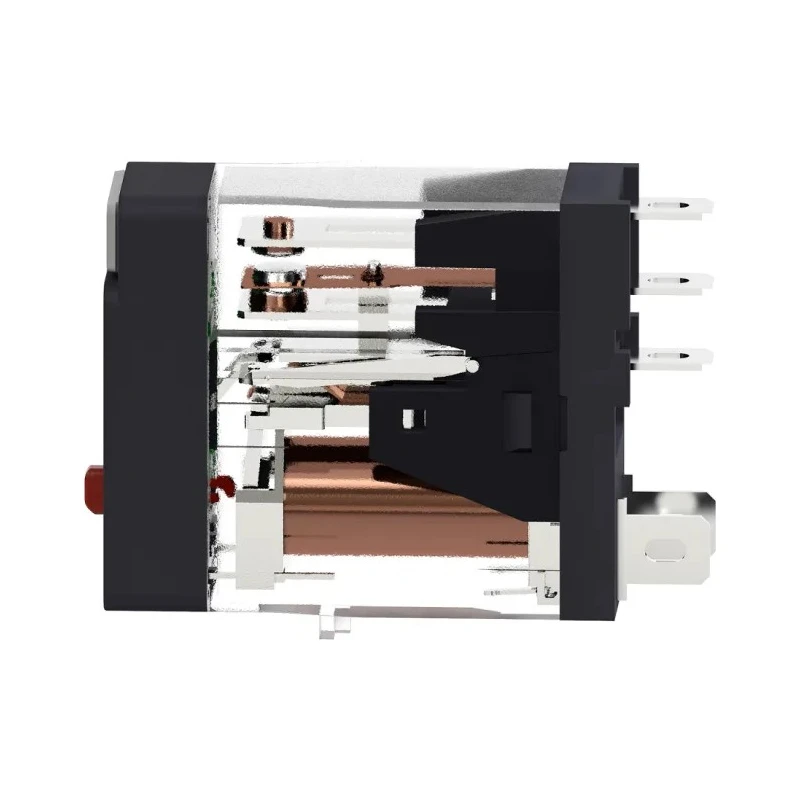

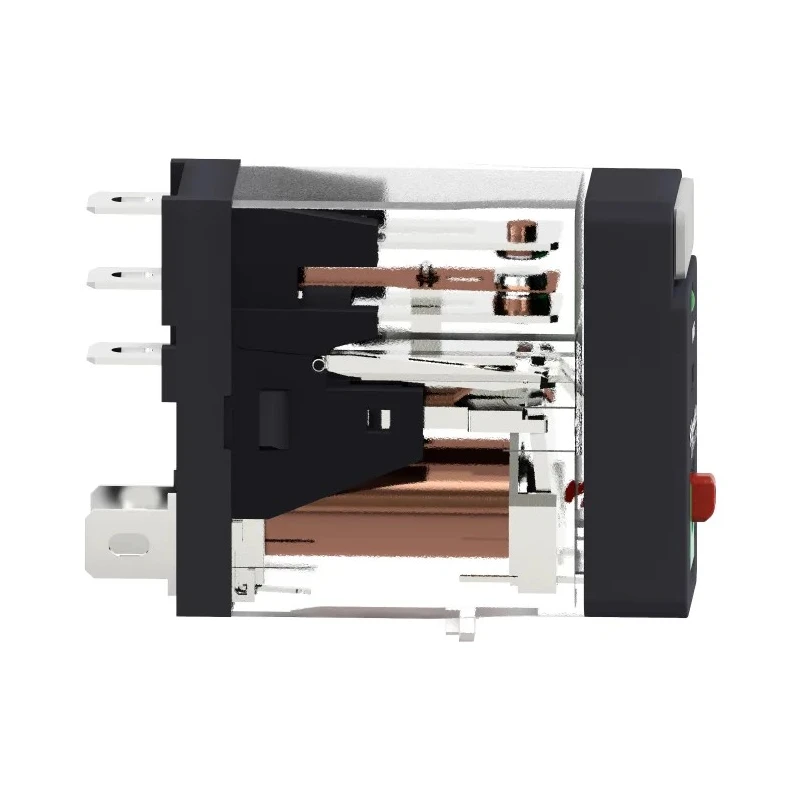

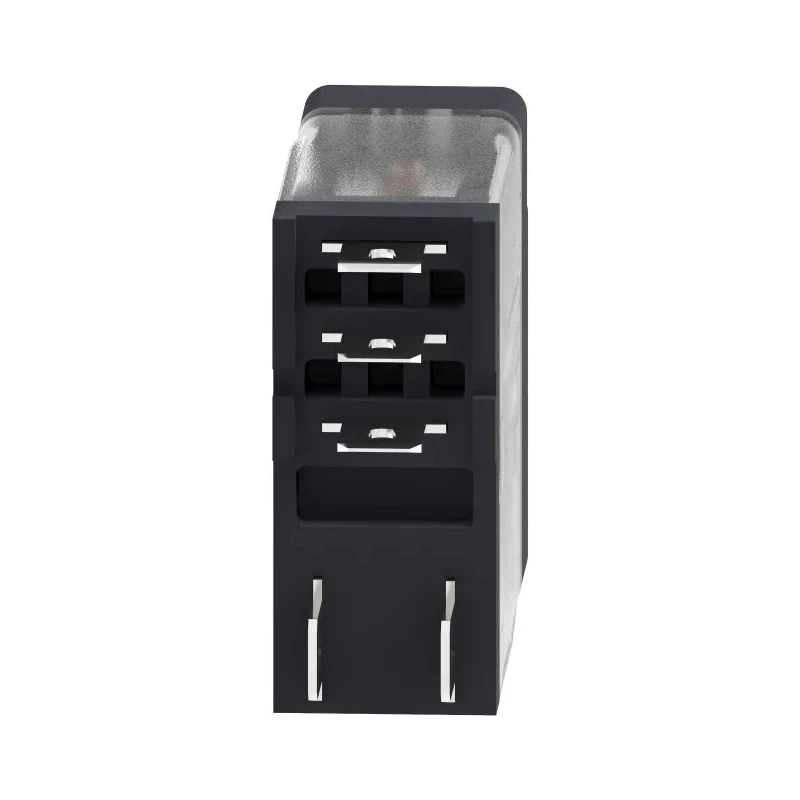

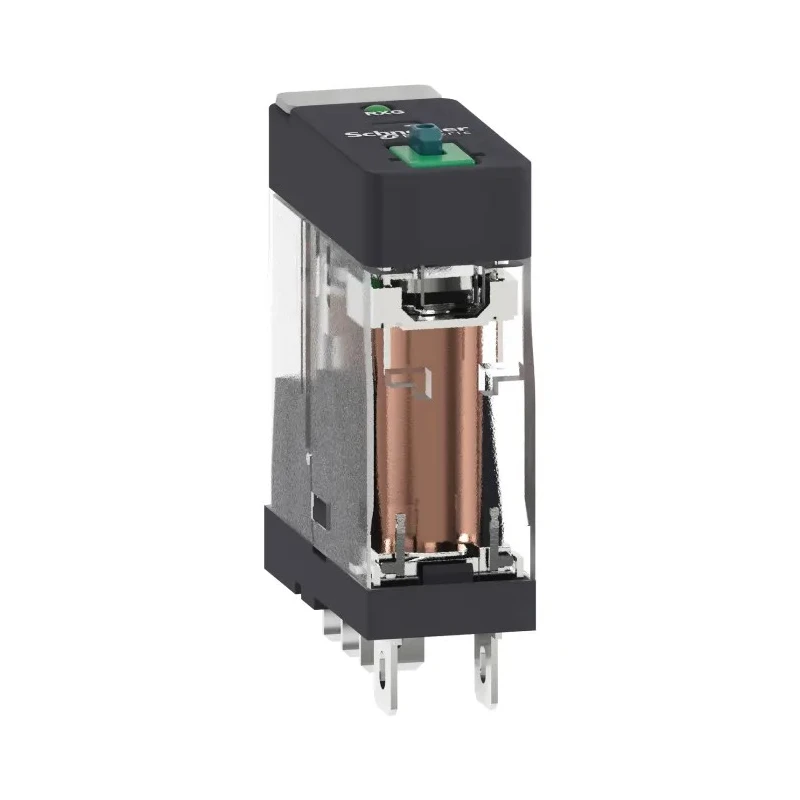

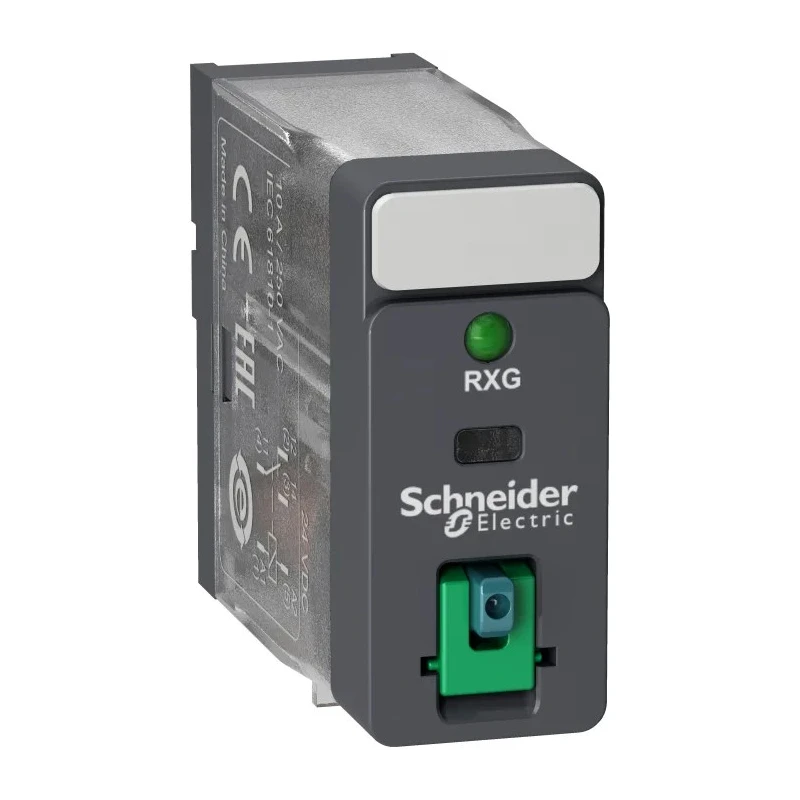

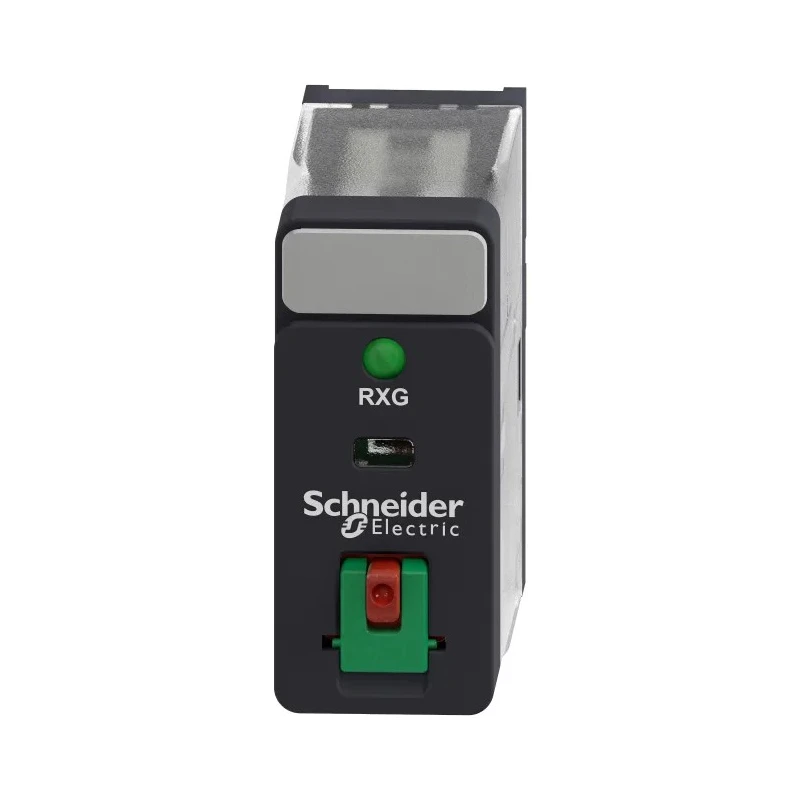

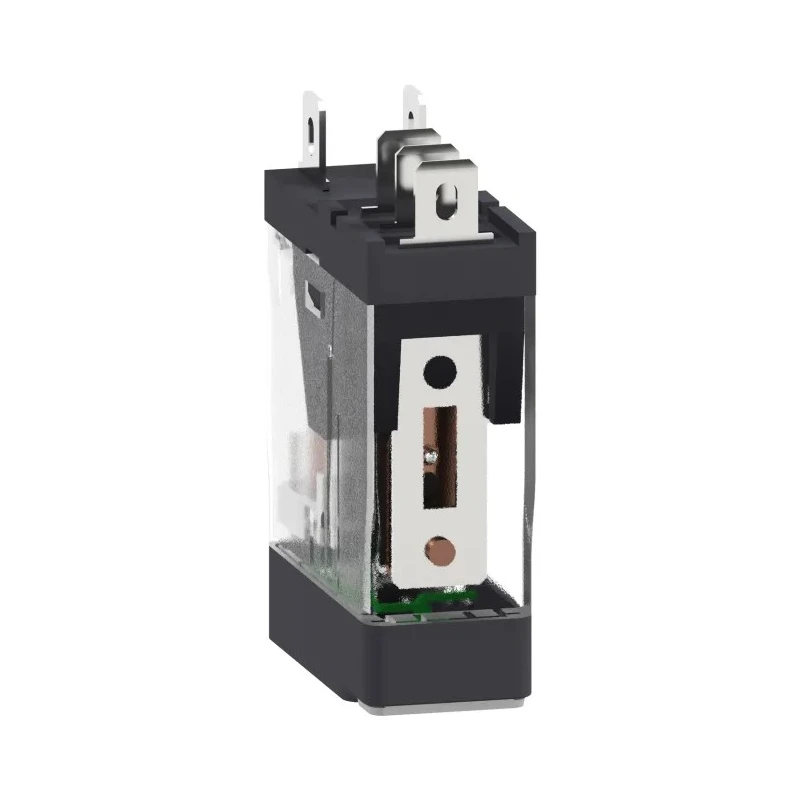

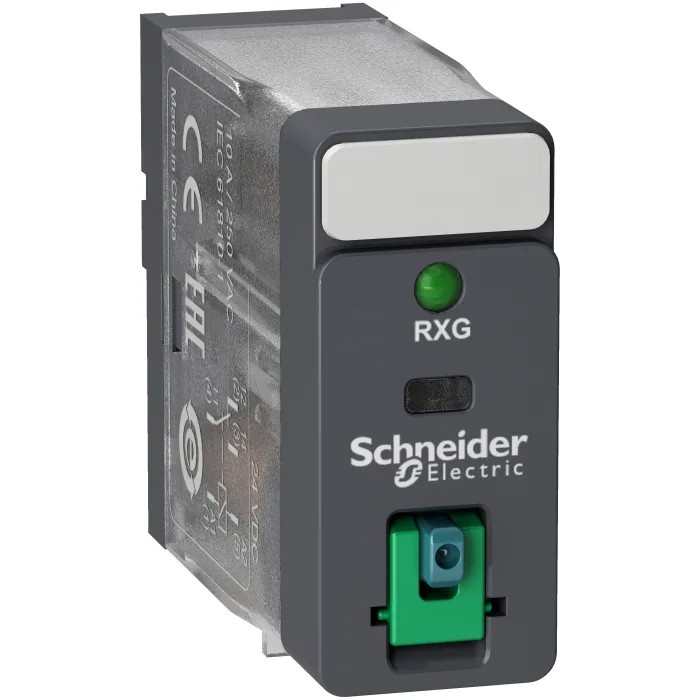

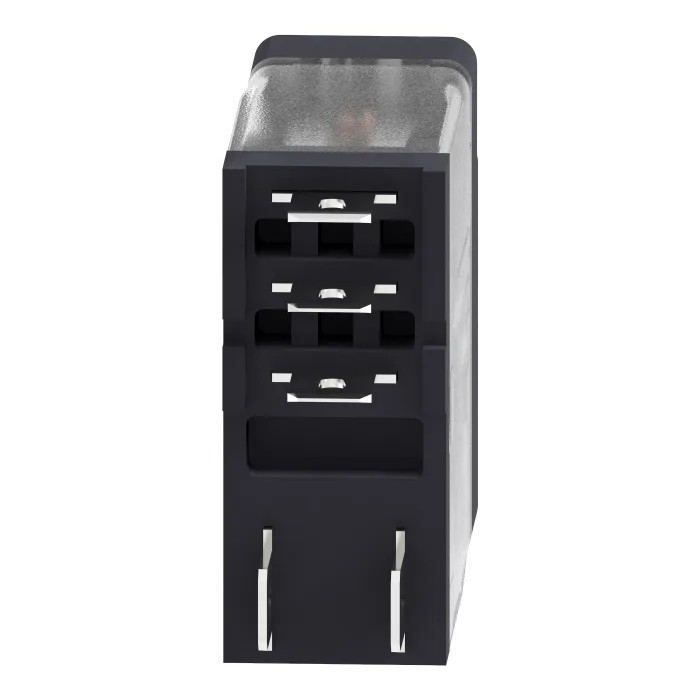

Schneider Electric Power Relay, 24V DC Coil, 10A Switching Current, 1 CO Contact Configuration RXG12BD
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 37.1mm |
| Length | 13mm |
| Model | RXG12BD |
| Width | 16mm |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RXG |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 1 CO |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Plug-In |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CSA, CE |
| Coil Resistance | 1.1kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V |
| Coil Power | 530mW |
| Better World Claim | Designed for Disassembly |
Key Features
- Compact plug-in design for easy installation and space saving.
- Features 1 CO (Changeover) contact configuration for versatile switching.
- Operates within a temperature range of -40°C to 70°C for use in harsh environments.
- Supports switching voltages up to 250V AC and 30V DC for multiple applications.
- Silver alloy contacts provide enhanced conductivity and durability.
- Coil resistance of 1.1 kΩ ensures optimal performance with 530 mW coil power consumption.
- Designed to meet CSA and CE standards for quality and safety.
- Electrical life expectancy of 100,000 cycles for extended longevity.
Product Description
Schneider Electric RXG12BD is a robust power relay engineered for industrial automation, electrical control systems, and circuit management. It features a 24V DC coil voltage coupled with a 10A switching current capacity and 1 CO contact configuration, making it ideal for switching tasks in diverse environments.
The relay's compact plug-in design facilitates space-efficient installation within electrical panels or mechanical systems. Its silver alloy contacts ensure high conductivity and reliable operation over an electrical life cycle of 100,000 cycles, making it suitable for demanding industrial applications.
Designed to operate safely across a wide temperature range from -40°C to 70°C, the RXG12BD maintains performance stability even in challenging conditions. It supports switching capacities up to 250 V AC and 30 V DC, allowing it to handle various power switching needs.
Safety is enhanced by the relay's 5 kV AC isolation rating between the coil and contacts, protecting equipment and users from electrical interference or hazards. The coil resistance of 1.1 kΩ and coil power rating of 530 mW ensure energy-efficient operation with minimal heat generation.
Compact plug-in design for efficient panel integration. 1 CO contact configuration suitable for diverse control operations. Wide operating temperature range from -40°C to 70°C. Capable of switching up to 250V AC and 30V DC loads safely.
Silver alloy contacts for superior conductivity and durability. Coil resistance of 1.1 kΩ ensures steady relay activation. Meets industry standards CSA and CE for reliability and safety. Over 100,000 electrical operating cycles for prolonged lifespan.
High isolation rating of 5 kV AC improves electrical safety. Compact dimensions enable use in space-constrained applications.
This Power Relay is suitable for use in industrial, manufacturing, HVAC, electrical panels, and automation system applications where dependable and energy-efficient switching is required. Its design supports reliable actuation in challenging environmental conditions, making it a versatile solution within control and signal conditioning equipment.
Explore EnvMart’s extensive catalog for more Schneider Electric relays and automation components designed to meet modern industrial demands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 10A, making it suitable for various applications requiring reliable switching.
The RXG12BD operates with a coil voltage of 24V DC, ensuring compatibility with low-voltage control systems.
It operates within a temperature range of -40°C to 70°C, allowing it to function effectively in harsh environments.
The dimensions of this unit are 37.1mm in height, 13mm in length, and 16mm in width, making it compact for installation.
It features a 1 CO (Changeover) contact configuration, providing versatile switching options for various applications.
This relay can switch voltages up to 250V AC, accommodating a wide range of electrical applications.
The coil resistance is 1.1 kΩ, which ensures optimal performance and energy efficiency during operation.
It uses silver alloy contacts, which enhance conductivity and durability for reliable operation over time.
The RXG12BD is designed to meet CSA and CE standards, ensuring quality and safety in its applications.
This model has an electrical life expectancy of 100,000 cycles, providing extended longevity for industrial use.
The coil power consumption is 530 mW, which contributes to its energy-efficient operation.
Yes, it is suitable for industrial, manufacturing, HVAC, electrical panels, and automation systems due to its robust design and performance capabilities.
