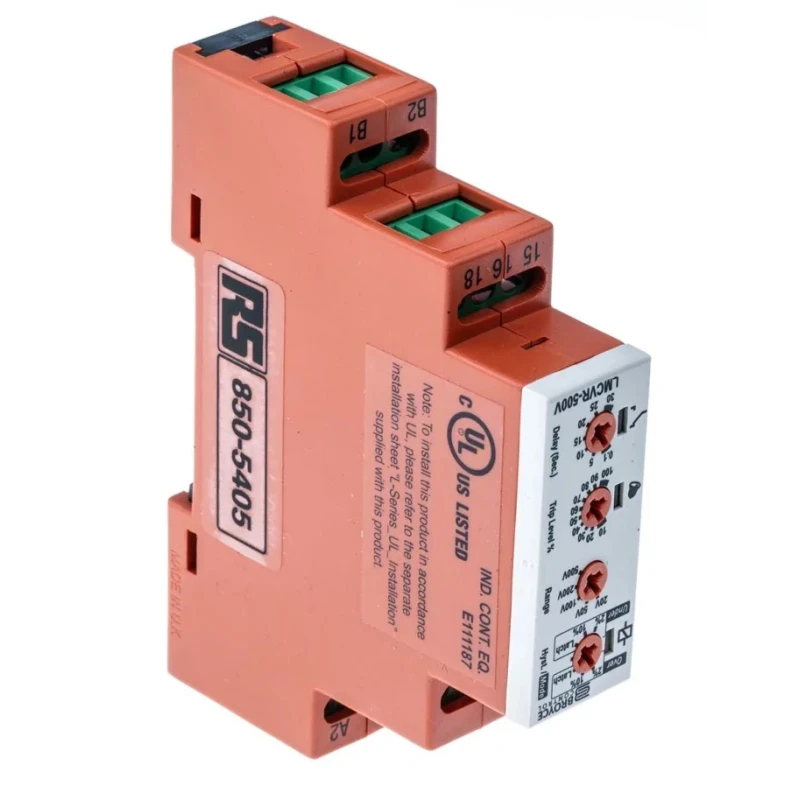

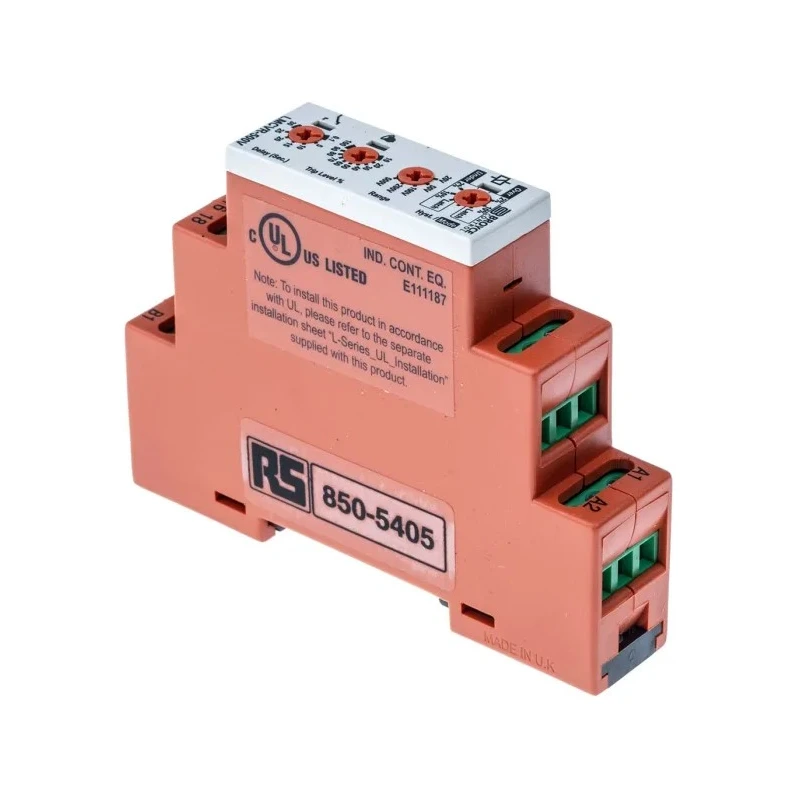

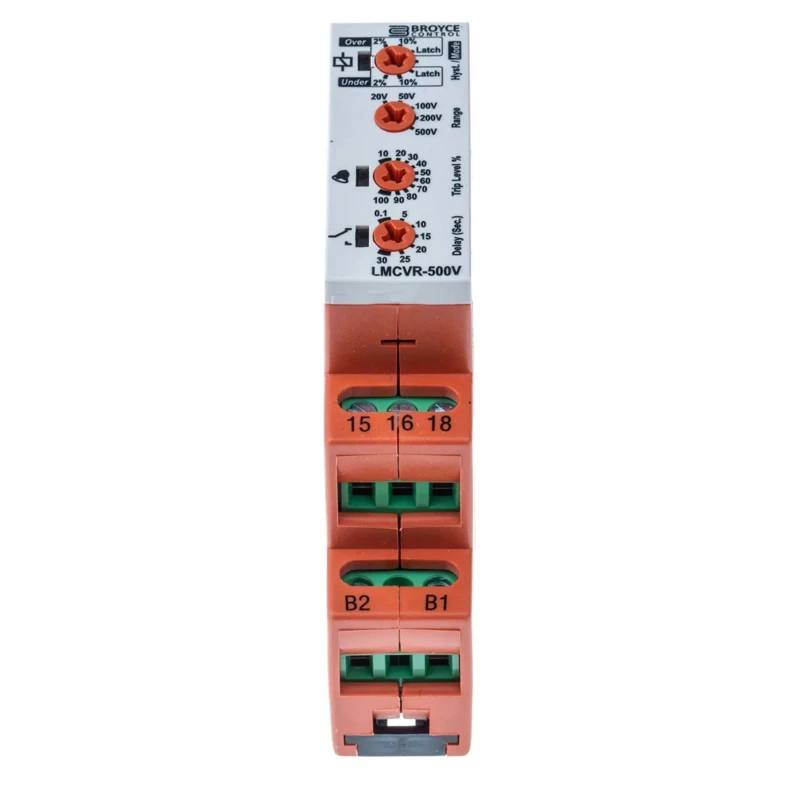

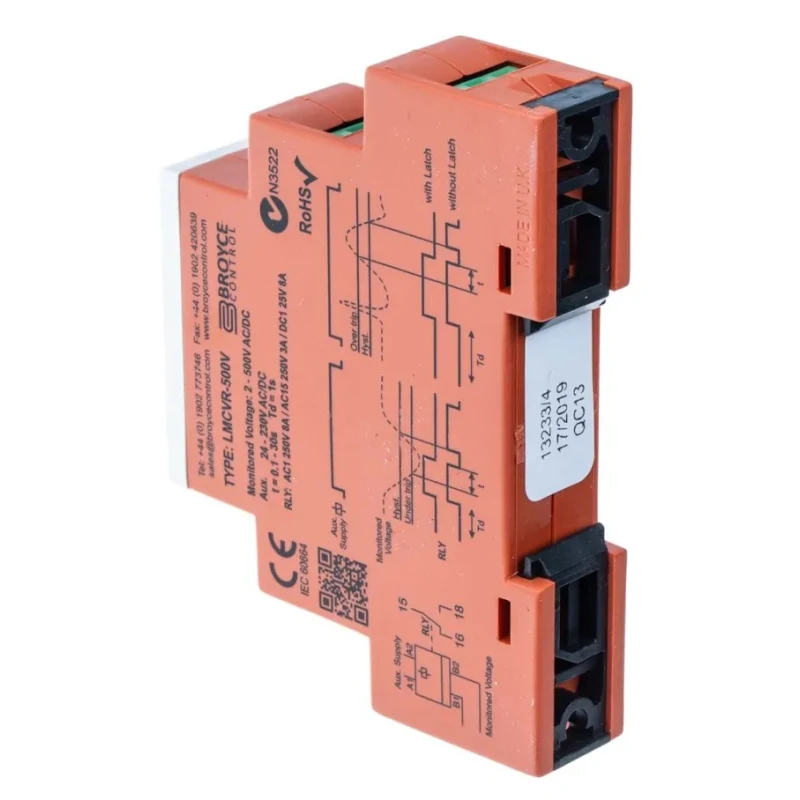

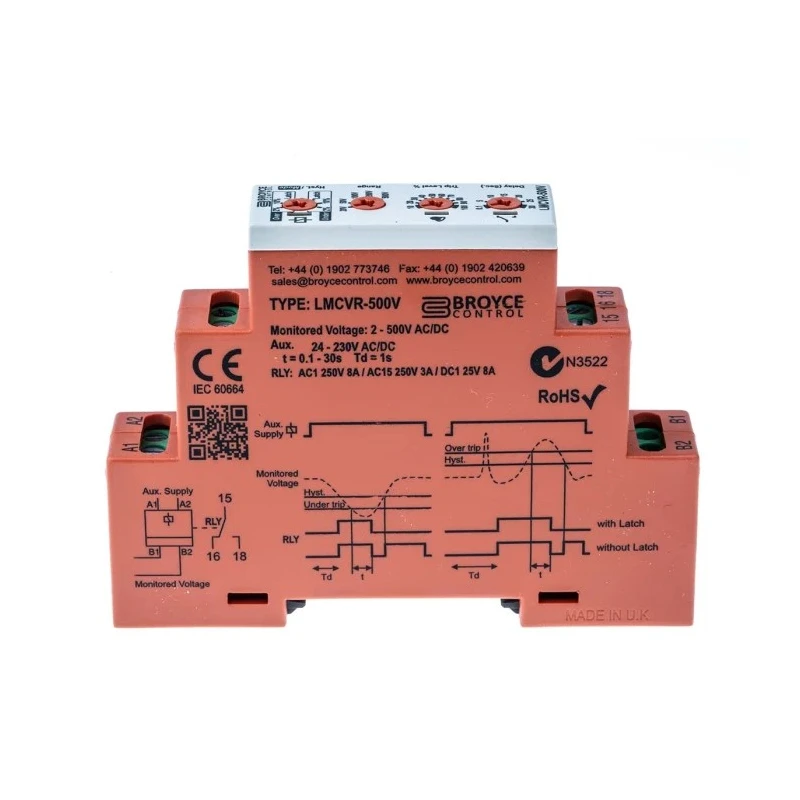

Broyce Control Monitoring Relay 3 Phase 2 to 500 V AC/DC Monitor Range SPDT DIN Rail Mount 230V AC LMCVR-500V 24-230VAC/DC

Broyce Control LMCVR-500V 24-230VAC/DC Monitoring Relay is a state-of-the-art three-phase voltage monitoring device designed for industrial and electrical applications requiring precise monitoring of 2 to 500 V AC/DC voltage ranges. It features a microprocessor based architecture ensuring accurate true RMS voltage measurement, making it ideal for protecting equipment and systems from voltage anomalies.

This relay includes a single pole double throw (SPDT) contact rated at 8A and supports a 230 V AC supply voltage with an isolated auxiliary voltage range from 24 to 230 V AC/DC. Its compact 17.5mm DIN rail housing simplifies installation in control panels and ensures durability under demanding industrial conditions.

The unit is IP20 rated, suitable for indoor electrical environments, and operates efficiently within a maximum temperature of 60°C. LED indication allows monitoring of supply status at a glance, enhancing operational reliability. The relay meets rigorous CE, RoHS, UL, EN 61000-6-4, EN 61000-6-2 and IEC standards, illustrating its compliance with international safety and performance benchmarks.

Applications for the LMCVR-500V include industrial automation systems, electrical distribution panels, process control, and monitoring equipment in manufacturing, commercial buildings, and HVAC systems. It ensures that voltage levels remain within specified limits, thereby preventing equipment damage and reducing downtime.

Integral to various monitoring and control setups, this relay is particularly useful in scenarios where three-phase voltage levels must be tracked and controlled with precision. Its screw terminal type connection ensures secure wiring and maintenance ease.

Operates on 230V AC supply voltage with 25 V AC auxiliary supply. Equipped with a single pole double throw (SPDT) contact configuration rated at 8A. Microprocessor based design offers true RMS voltage monitoring for accuracy.

Compact DIN rail housing measuring 89mm height, 66.5mm length, 17.5mm width for easy panel integration. Suitable for three-phase electrical systems with a switching voltage of 250V AC. Features green LED indication for supply status for easy diagnostics.

Operates reliably in temperature range up to 60°C, rated IP20 for protection. Isolated auxiliary supply voltage range from 24 to 230 V AC/DC enhances versatility. Certified to international standards including CE, RoHS, UL, and IEC for quality assurance.
