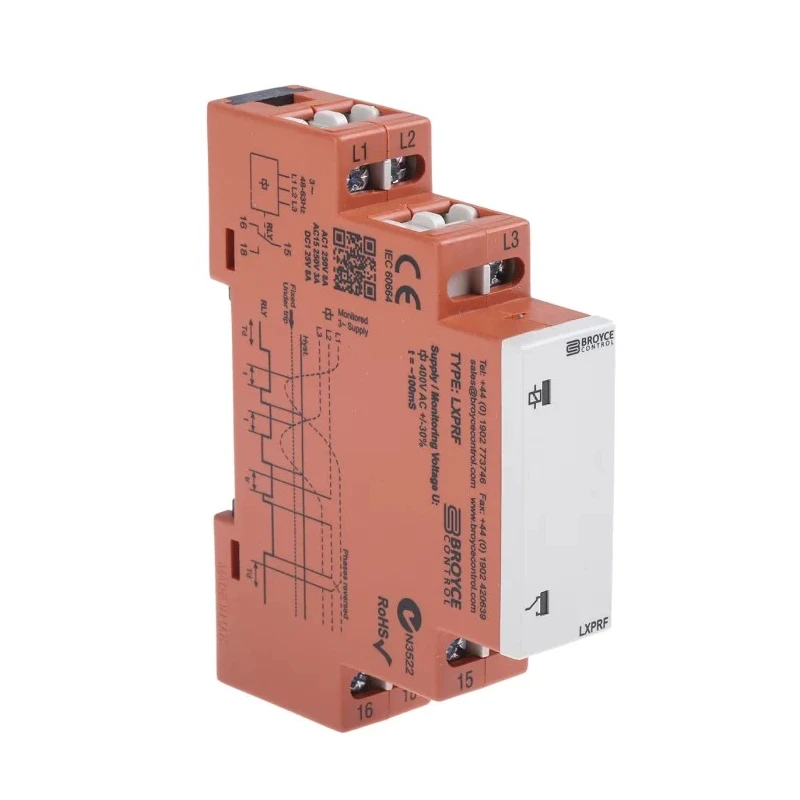

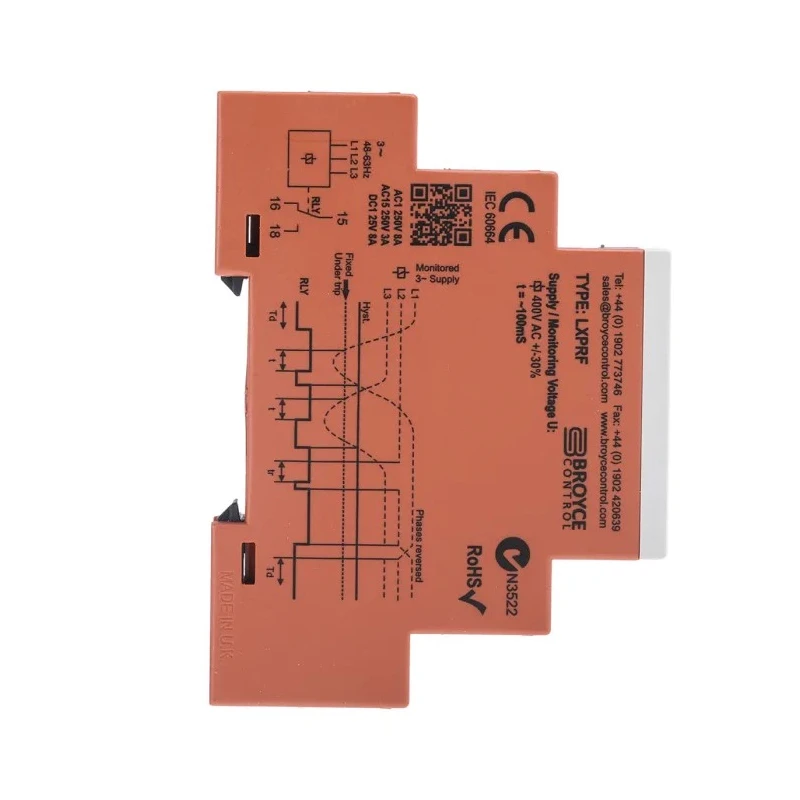

Broyce Control Monitoring Relay 3 Phase 280-520VAC 8A SPDT DIN Rail Mount LXPRF 280-520VAC
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Broyce Control |
| Height | 89mm |
| Length | 66.5mm |
| Model | LXPRF 280-520VAC |
| IP Rating | IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Series | L |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | +60°C |
| Terminal type | Screw |
| Electrical Phase | 3 |
| Switching Voltage | 250V ac |
| Contact Current | 8A |
| Supply DC Voltage | 25 V ac |
| Supply AC Voltage | 280V ac |
Key Features
- Designed for monitoring phase to phase voltages from 280 to 520 VAC.
- Equipped with 1 SPDT relay output rated at 8A for reliable switching.
- Green LED indicates supply status and red LED shows relay status.
- Compact 17.5mm DIN rail housing suitable for industrial installations.
- Operating temperature range up to 60°C for robust performance.
- Screw terminal connections rated for 250V AC switching voltage.
- Features microprocessor-based enhanced control and adjustability.
- Complies with IEC, RoHS, UL EN 61000-6-2, CE, and EN 61000-6-4 standards.
Product Description
Broyce Control LXPRF 280-520VAC monitoring relay is a microprocessor based 3 phase device designed to measure and protect phase to phase voltages from 280 to 520 volts AC. Featuring a 1 x SPDT relay output with an 8 amp contact rating, this relay provides reliable switching and status indication for industrial and commercial electrical control systems. The unit is mounted on a DIN rail with a slim 17.5mm housing for efficient panel space utilization.
Equipped with screw terminal connections rated for 250V AC switching voltage, it ensures solid and secure electrical connections. Green and red LEDs indicate supply and relay statuses respectively, facilitating easy monitoring and diagnostics. The relay functions over an operating temperature range up to 60°C, making it suitable for demanding environmental conditions.
This product fulfills critical industrial standards including IEC, RoHS, UL EN 61000-6-2, CE, and EN 61000-6-4, ensuring compatibility and safety compliance in industrial automation, process control, and electrical distribution systems.
The LX series selects specially for three phase relays and control timers, integrating advanced technology to deliver accurate and reliable phase monitoring. The relay is ideal for monitoring devices in industrial, manufacturing, HVAC, and other electrical automation applications where safe voltage conditions are essential.
Designed for monitoring phase to phase voltages from 280 to 520 VAC. Equipped with 1 SPDT relay output rated at 8A for reliable switching. Green LED indicates supply status and red LED shows relay status. Compact 17.5mm DIN rail housing suitable for industrial installations.
Operating temperature range up to 60°C for robust performance. Screw terminal connections rated for 250V AC switching voltage. Features microprocessor-based enhanced control and adjustability. Complies with IEC, RoHS, UL EN 61000-6-2, CE, and EN 61000-6-4 standards.
Manufactured in the United Kingdom ensuring quality and reliability.
Explore further in our Electronics & Electricals > Relays & Contactors > Monitoring Relays category on EnvMart for comprehensive selection of control and monitoring relay products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is designed to monitor phase to phase voltages from 280 to 520 VAC.
It features a single SPDT relay output rated at 8A, providing reliable switching capabilities.
The maximum operating temperature for this monitoring relay is 60°C.
This model is designed for DIN rail mounting, with a compact 17.5mm housing.
It is equipped with screw terminal connections rated for 250V AC switching voltage.
The dimensions of this unit are 89mm in height, 66.5mm in length, and 17.5mm in width.
It complies with IEC, RoHS, UL EN 61000-6-2, CE, and EN 61000-6-4 standards, ensuring compatibility and safety in industrial applications.
This monitoring relay is designed for 3 phase electrical systems.
The relay requires a supply AC voltage of 280V AC.
This unit has an IP20 rating, indicating protection against solid objects larger than 12.5mm but no protection against water.
It is suitable for industrial, manufacturing, HVAC, and other electrical automation applications where safe voltage conditions are essential.
It features microprocessor-based technology that provides enhanced control and adjustability for monitoring phase voltages.
