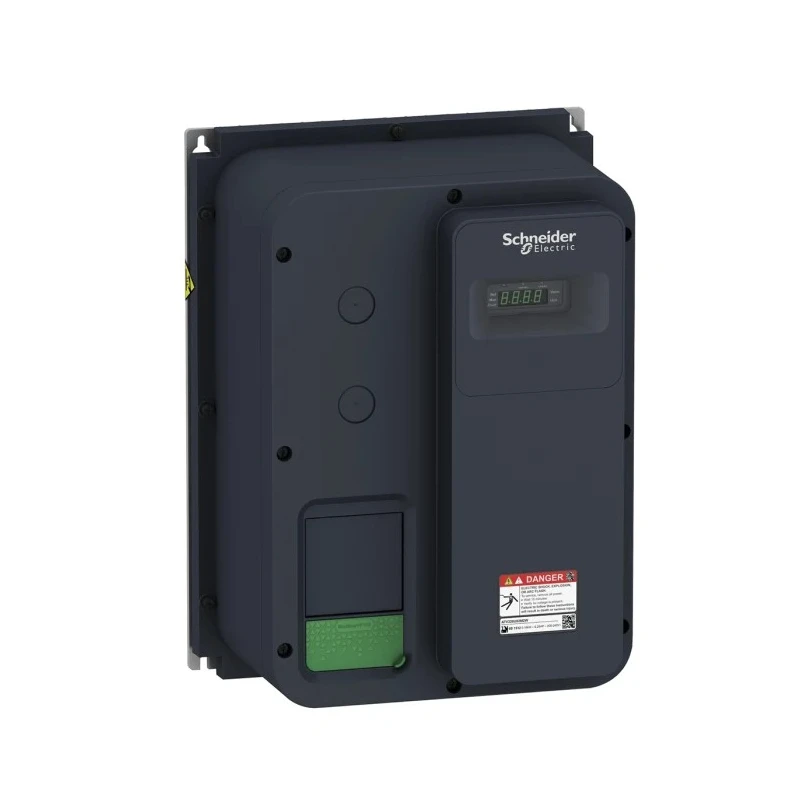

Schneider Electric Variable Speed Drive 370 W 1 Phase Altivar Series 240V AC 3.5 A ATV320U04M2W

Schneider Electric ATV320U04M2W variable speed drive is a high-performance Altivar series inverter designed for controlling single-phase asynchronous and synchronous AC motors. This model delivers a rated power of 370 W (0.55 HP) with a supply voltage range of 200 to 240 V AC and a maximum output current of 3.5 A, suitable for demanding industrial and commercial automation applications.

The drive features a robust IP66-rated enclosure providing protection against dust and chemical pollution, making it ideal for harsh environments where washable capabilities are needed. Its compact wall-mount form factor measures 250 mm in length, 182 mm in width, and 340 mm in depth, weighing approximately 5.1 kg, allowing easy integration into control panels.

This model includes built-in EMC C2 filters and is delivered without a fan, reducing maintenance needs and enhancing reliability. It supports output frequencies ranging from 0.1 Hz up to 599 Hz to enable precise motor speed control for conveyor belts, gantry cranes, carton packing machines, woodworking, metal processing, and food & beverage industry operations.

The embedded software supports parallel motor connections and energy-saving functions for open-loop synchronous motors via voltage/frequency ratio and static speed accuracy. Additionally, it incorporates five configurable safety functions that comply with international safety standards, configurable through Schneider Electric's SoMove software interface.

The drive supports multiple industrial communication interfaces including EtherNet/IP, Modbus TCP, Profinet, EtherCAT, Profibus, CANopen, and DeviceNet, facilitating seamless integration into various automated systems. It is certified under CSA, C-Tick, EN/IEC 61800-3, EN/IEC 61800-5-1, GOST, IEC 13849-1, IEC 60721-3, IEC 61508, NOM, REACH, and UL 61800-5-1 standards, ensuring global compliance and reliability.

The ATV320U04M2W is delivered in two packages designed for vertical panel mounting (+/- 10 degrees) with four fixing holes. Optional accessories including braking resistors, line and motor chokes, and additional EMC filters are available depending on drive rating to further customize installation needs.

Designed for asynchronous and synchronous motor variable speed control applications. High ingress protection IP66 suitable for harsh industrial environments. Embedded EMC C2 filter with no fan design reduces maintenance.

Multiple industrial communication protocols supported for system integration. Includes configurable safety functions meeting international machine safety norms. Compact wall mount form factor with 250 mm x 182 mm x 340 mm dimensions.

Certified across multiple international electrical and safety standards. Energy saving and static speed accuracy features optimized for open-loop synchronous motors.

This Schneider Electric variable speed drive is ideal for use in industries such as industrial automation, material handling, manufacturing, food and beverage, and metal processing. Its robust design and flexibility enable reliable and efficient motor control in a wide variety of industrial and commercial applications. Browse other Schneider Electric drives and automation products in EnvMart for comprehensive solutions.
