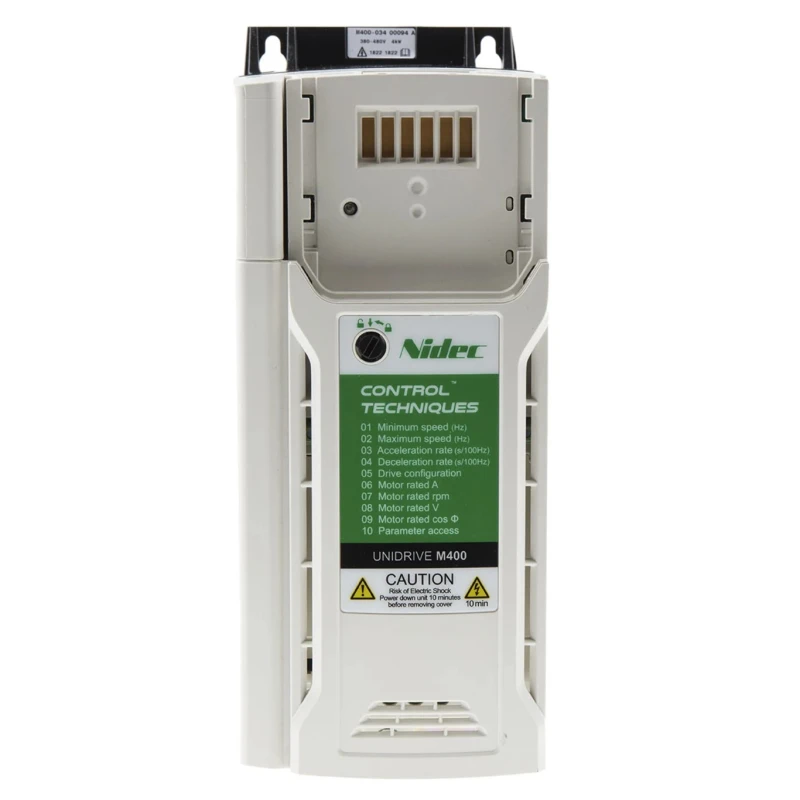

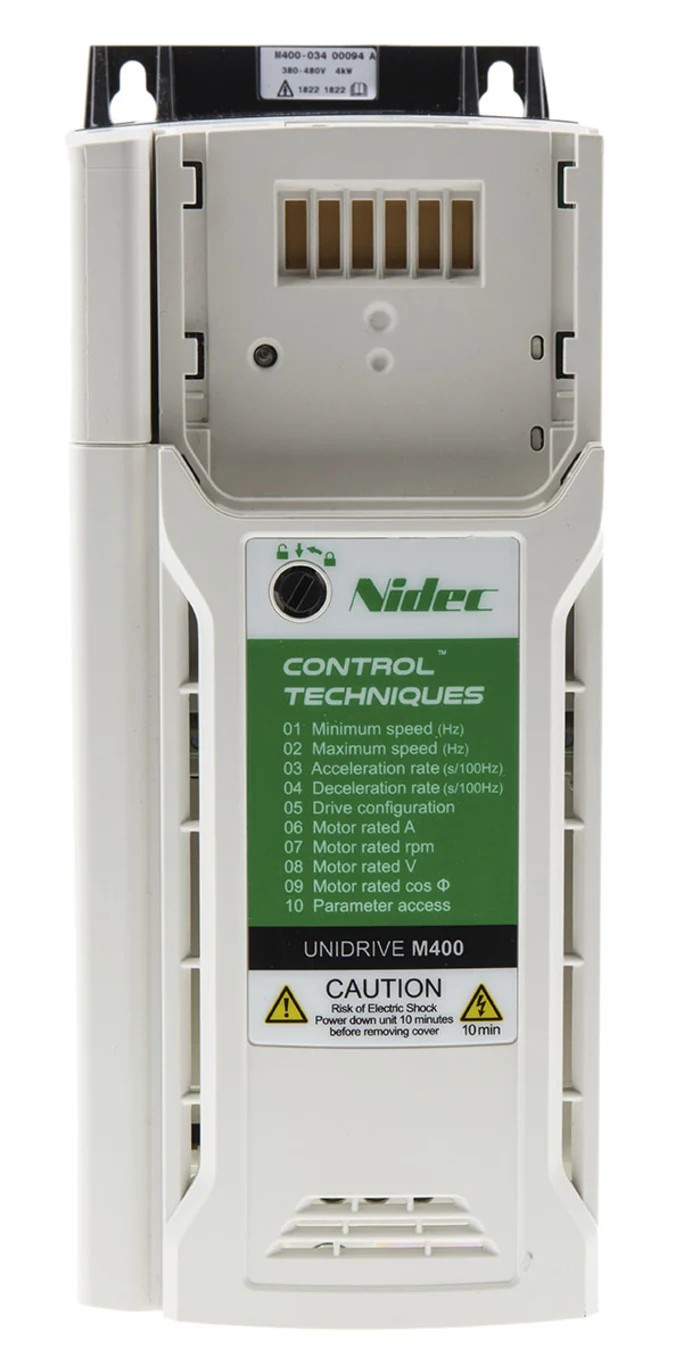

Control Techniques Inverter Drive 2.2 kW 1 & 3 Phase Panel Mount Vector Control M400-03200100A10100AB100

Control Techniques M400-03200100A10100AB100 inverter drive is a high-performance unit rated at 2.2 kW, designed for 1 and 3 phase AC vector control motor applications. Its panel mount design features a compact form factor with overall dimensions of 226 mm length, 90 mm width, and 160 mm depth, fitting well within industrial control setups. Operating on a supply voltage range of 200 to 240 V AC and a maximum output current of 10 A, this inverter optimally drives induction motors with advanced vector control technology.

This model includes a multilingual three-line LCD display with 4 navigation buttons, providing an intuitive user interface that simplifies configuration and diagnostics. The onboard programmable logic controller (PLC) supports complex sequencing and logic tasks, enhancing automation capabilities and operational efficiency.

Engineered for durability and safety, the inverter meets IP20 ingress protection and maintains operational integrity within ambient temperatures ranging from -20°C to 40°C. It complies with rigorous international standards including cULus, CE, RoHS, ISO, N1652, TUV, and SIL 3 certifications, ensuring reliability and regulatory compliance in demanding industrial environments.

Key functional features include Rotor Flux Control (RFC-A) for improved stability and motor control precision. The device offers extensive integration options, including interfaces for safety systems with two STO inputs and a SI interface for fieldbus communication or expansion of I/O modules.

The M400 series inverter is ideal for a broad range of industrial automation, electrical machinery, and manufacturing applications where energy-efficient and flexible motor control is required. Its design prioritizes minimizing downtime through rapid setup and clear diagnostic feedback, facilitating enhanced process control and system uptime.

Offers vector control for precision motor management. Supports maximum output current of 10 A operating at 240 V AC supply voltage. Compatible with induction motors for industrial applications. Equipped with an intuitive LCD display and onboard PLC for easy setup and diagnostics.

IP20 rated for protection against solid objects and limited ingress. Operating temperature range from -20°C to 40°C for versatile environmental use. Compact design with dimensions 226 mm length, 90 mm width, and 160 mm depth.

Conforms with multiple approvals including cULus, CE, RoHS, ISO, N1652, TUV, and SIL 3. Includes advanced motor control algorithms such as Rotor Flux Control (RFC-A) for stability. Designed to integrate with safety systems using two STO inputs and a SI interface.
