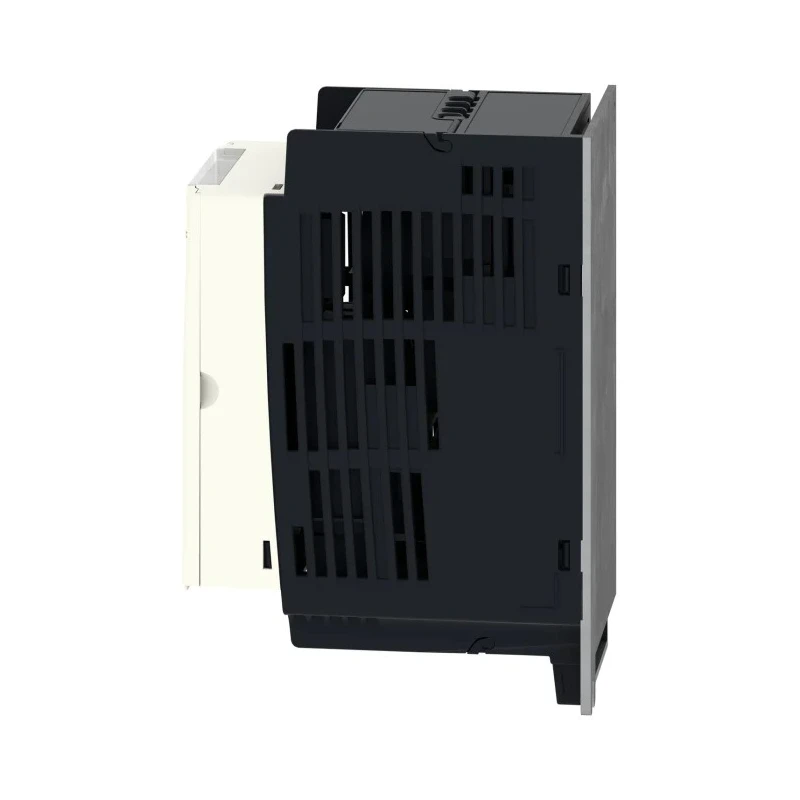

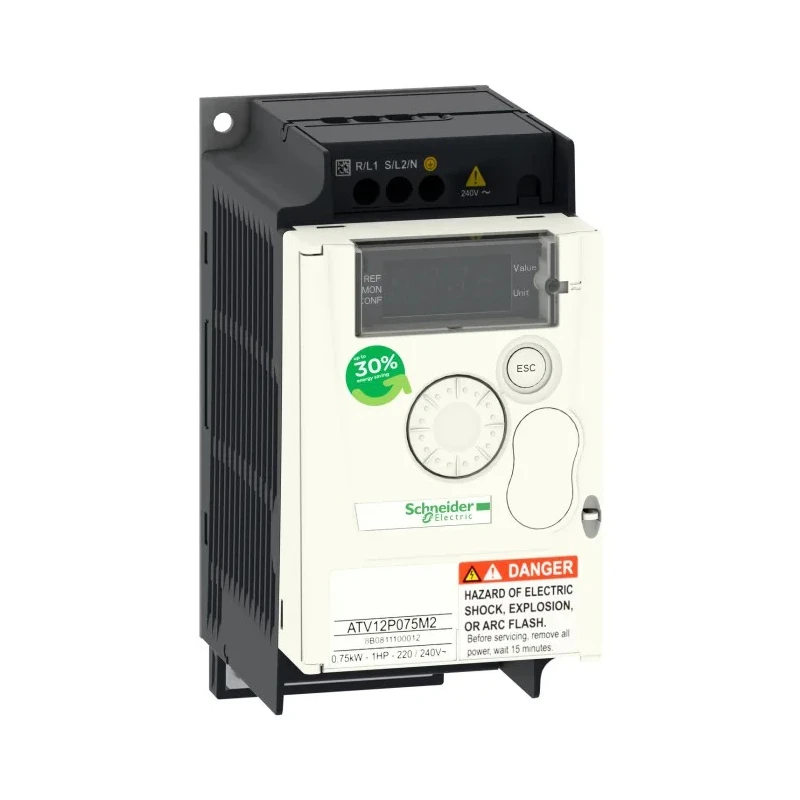

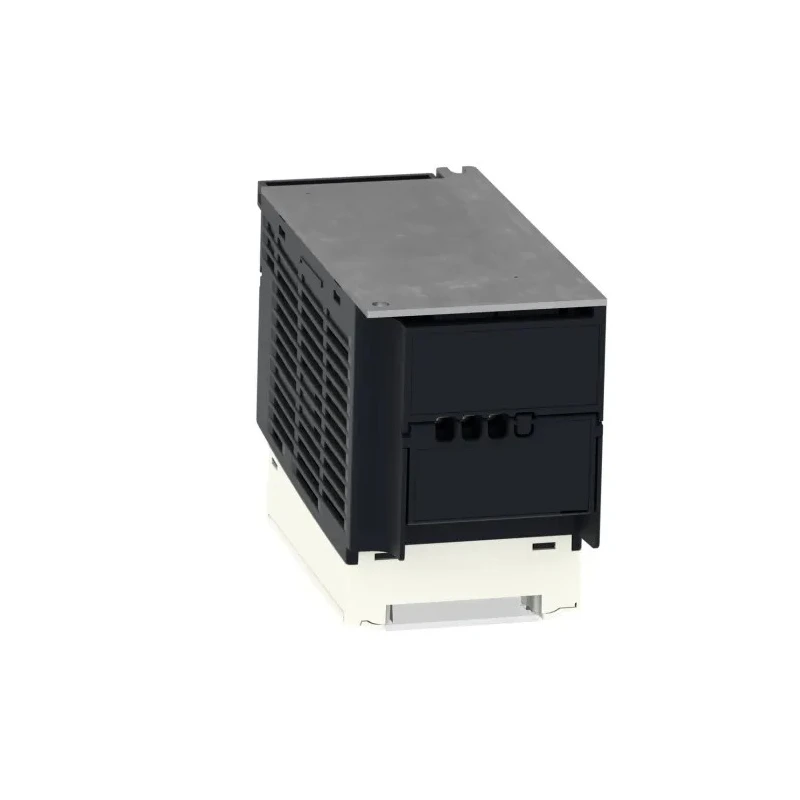

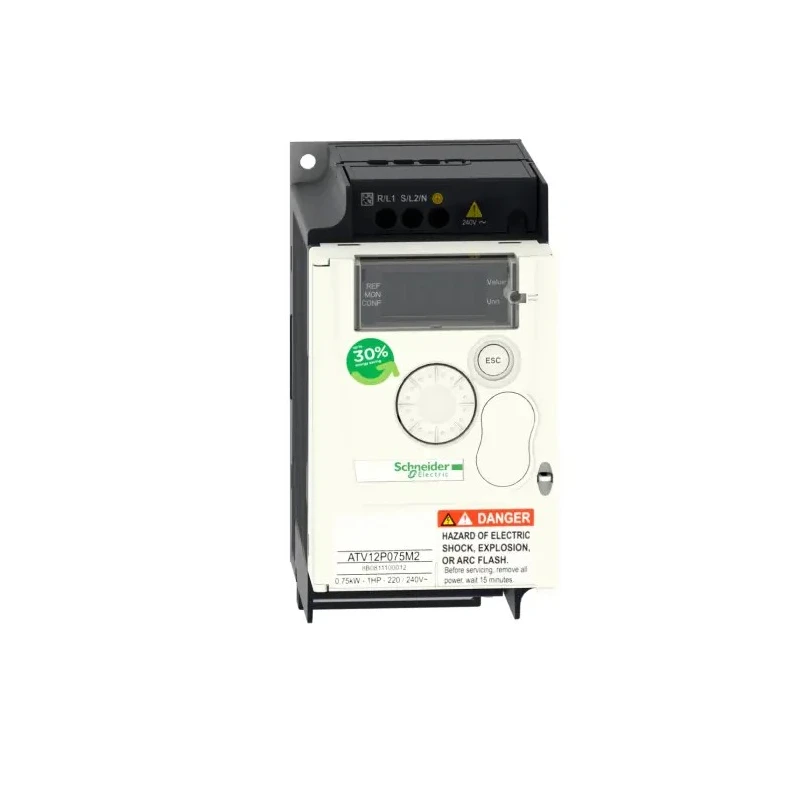

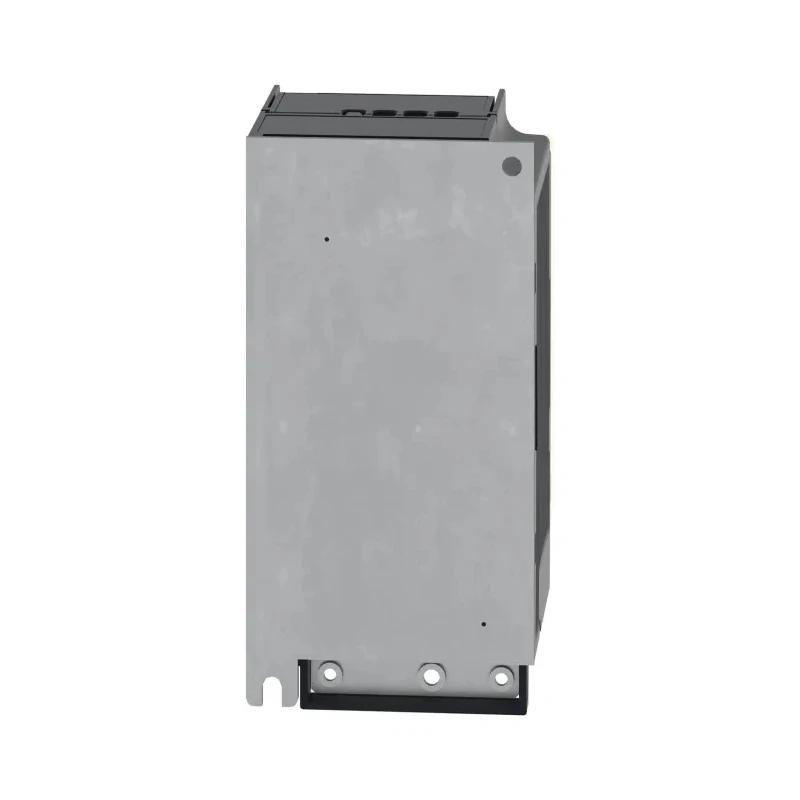

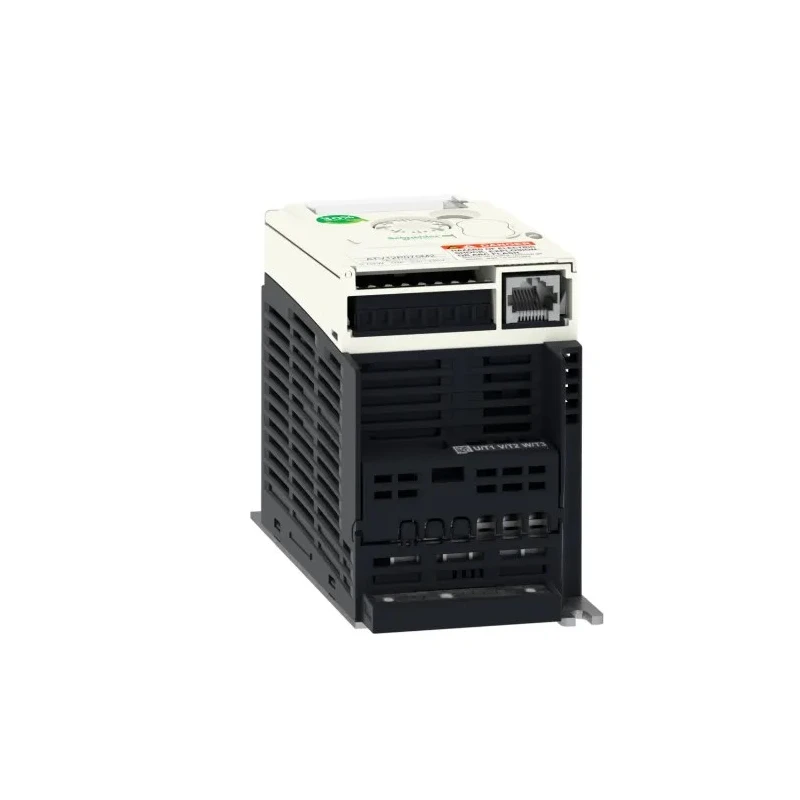

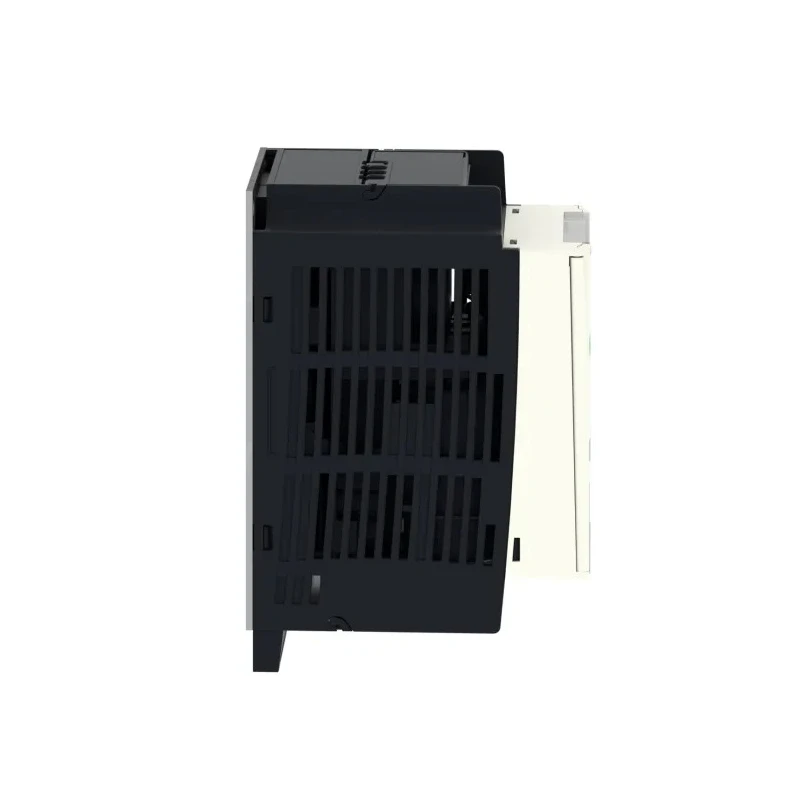

Schneider Electric Inverter Drive Variable Speed Cabinet Mounting 750W 1 Phase 230V AC 4.2A ATV12P075M2
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Model | ATV12P075M2 |
| IP Rating | IP20 |
| Drive Type | Variable Speed |
| Mount Type | Cabinet |
| Overall Length | 72mm |
| Series | ATV 12 |
| Overall Width | 143mm |
| Power Rating | 750W |
| Maximum Operating Temperature | 40°C |
| Output Frequency | 400Hz |
| Minimum Operating Temperature | -10°C |
| Number of Phases | 1 |
| Maximum Output Current | 4.2A |
| Standards/Approvals | CE, CSA, UL |
| Overall Depth | 102.2mm |
| Minimum Supply Voltage | 230V ac |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Asynchronous Motor |
Key Features
- Offers efficient variable speed control for enhanced motor performance.
- Equipped with Modbus communication for robust data exchange.
- Includes short circuit protection to ensure motor safety.
- Features RS 485 interface improving connectivity reliability.
- Integrated EMC filter reduces electrical noise interference effectively.
- Supports output frequency range from 0.5 to 400 Hz for versatile applications.
- Suitable for controlling pumps, conveyors, HVAC systems, and industrial fans.
- Compact cabinet mounting with IP20 rating for indoor use.
Product Description
Schneider Electric ATV12P075M2 inverter drive is a variable speed control device designed to deliver precise operation of asynchronous motors with a power rating of 750W. It operates on a single-phase 230V AC supply with a maximum output current of 4.2A. The device has a compact cabinet mount form factor with dimensions 143mm (height) x 72mm (length) x 102.2mm (depth) and an IP20 protection rating suitable for indoor industrial environments.
This inverter drive incorporates advanced features such as Modbus communication protocol and RS 485 interface to facilitate efficient and reliable data exchange within automation systems. It includes essential motor protective functions like short circuit, overvoltage, undervoltage, and overheating protections, minimizing the risk of damage during operation. An integrated EMC filter is provided to suppress electrical noise, ensuring stable and interference-free control.
The ATV12 Series model supports output frequencies from 0.5 up to 400 Hz and uses sensorless flux vector control to optimize motor efficiency and performance across varying loads. It is suitable for diverse industrial applications including water treatment pumps, conveyor speed regulation, HVAC airflow control, and industrial fan management. The device complies with CE, CSA, and UL standards and contributes to energy savings aligned with sustainability goals.
Variable speed control for asynchronous motors. Modbus and RS 485 communication interfaces. Short circuit, overvoltage, undervoltage, and overheating protections. Integrated EMC noise suppression filter. Supports output frequencies up to 400 Hz.
Cabinet mounting design with IP20 rating. Complies with CE, CSA, and UL standards. Energy-saving product contributing to sustainable operations.
Ideal for industrial, HVAC, water treatment, manufacturing, and commercial automation environments. Discover full Schneider Electric inverter drive solutions and related automation products on EnvMart.
