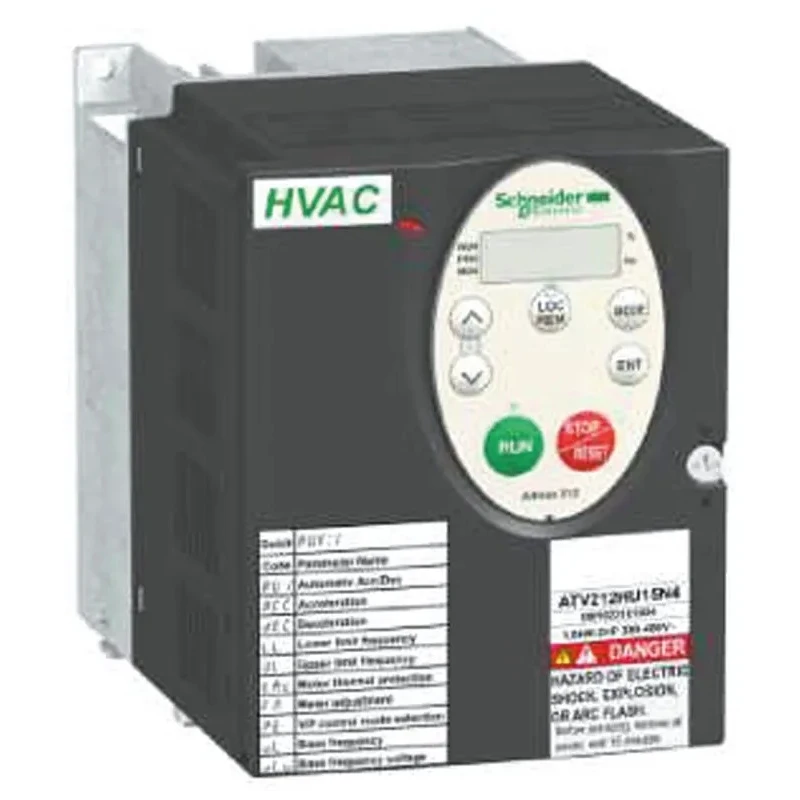

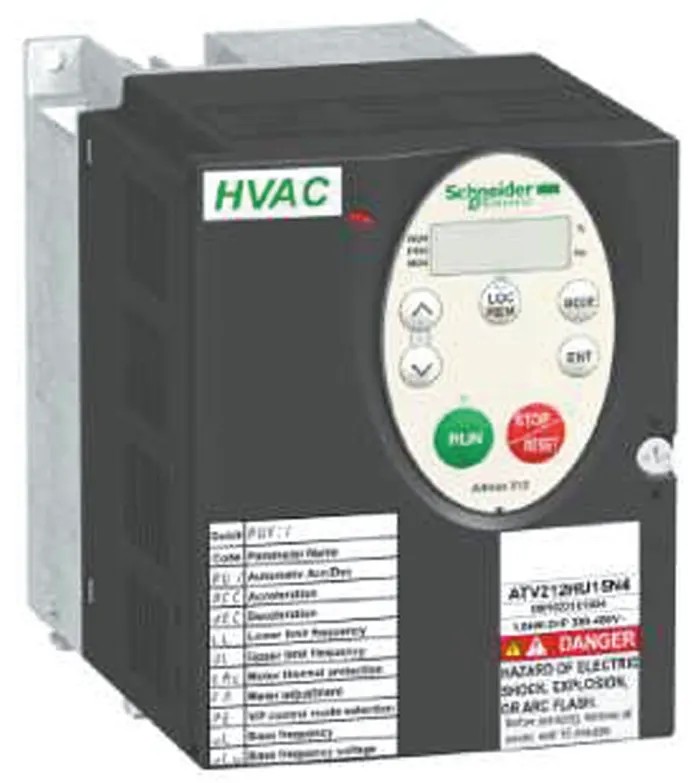

Schneider Electric Inverter Drive 750 W 3 Phase 400V AC 2.2A ATV212H075N4

Schneider Electric ATV212H075N4 is a robust inverter drive with a power rating of 750 watts and designed for 3-phase asynchronous motors operating at 400V AC. This variable frequency drive offers precise motor speed control with output frequency up to 200Hz and maximum current of 2.2 amps, facilitating energy-efficient solutions for industrial and commercial applications, especially in HVAC and fluid management.

The Altivar 212 series drive features an IP20 protection rating, compact overall dimensions of 107 mm width, 143 mm height, and 150 mm depth, and weighs approximately 2 kilograms. Equipped with a built-in EMC filter, it provides disturbance-free operation, eliminating the need for additional line or DC chokes. Its innovative design reduces energy consumption by up to 70%, aligning with Schneider Electric's Better World sustainability initiative.

This inverter drive complies with international standards including IEC/EN 61800-5-1 and IEC/EN 61800-3 for electromagnetic compatibility and safety. The drive supports various communication protocols such as Modbus, METASYS N2, APOGEE FLN P1, and BACnet, allowing seamless integration with building management systems.

Mounting is versatile with options for side mounting or vertical panel placement and compatibility with a 35 mm DIN rail using an optional kit. The Altivar 212 is particularly suitable for tertiary sector buildings in HVAC roles like heating, ventilation, air conditioning, and pumping systems.

Supports 3-phase asynchronous motors with variable speed drive type. Operates within temperature range of 0°C to 40°C. Compact dimensions: 107mm width, 143mm height, and 150mm depth. IP20 rated protection ensuring safe operation under normal conditions.

Built-in EMC filter for disturbance-free motor operation. Complies with UL, RoHS, REACH, IEC, EN, C-Tick, and CSA standards. Designed for fluid management applications including HVAC and pumping systems. Energy-saving design reducing consumption by up to 70% compared to conventional drives.

Can be mounted vertically or on DIN rail with optional kit.

Schneider Electric's ATV212H075N4 inverter drive is an ideal choice for industrial automation, laboratory equipment, HVAC, manufacturing, and water treatment applications where efficient motor speed control and energy reduction are priorities.
