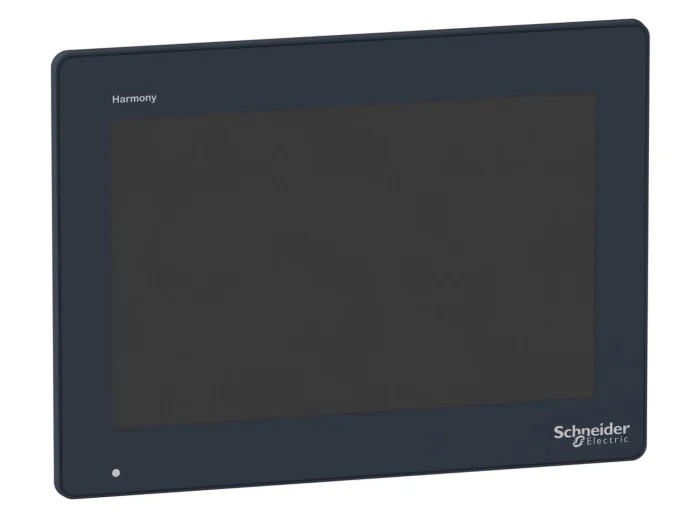

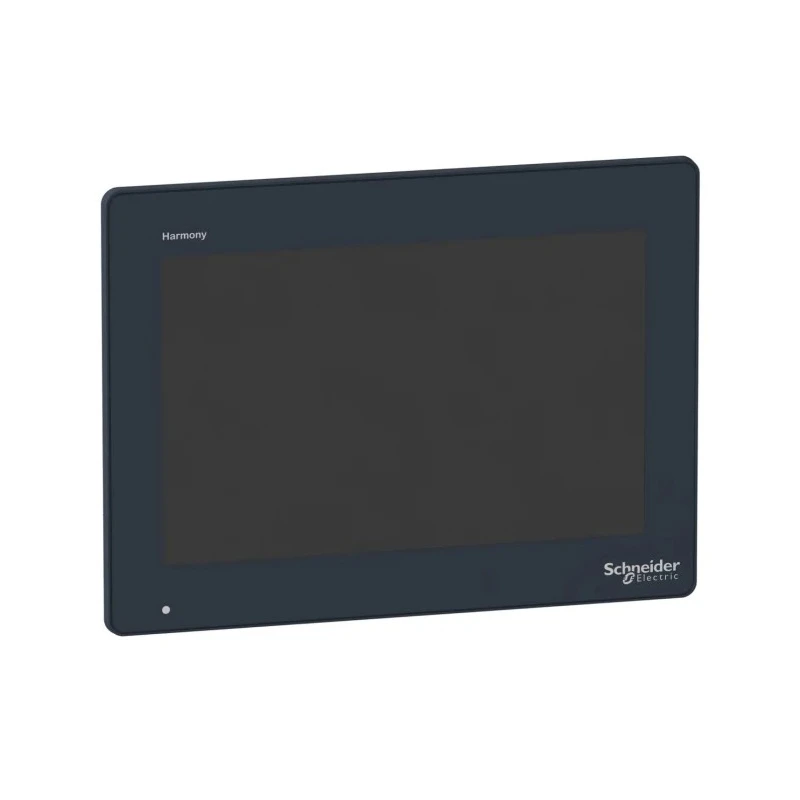

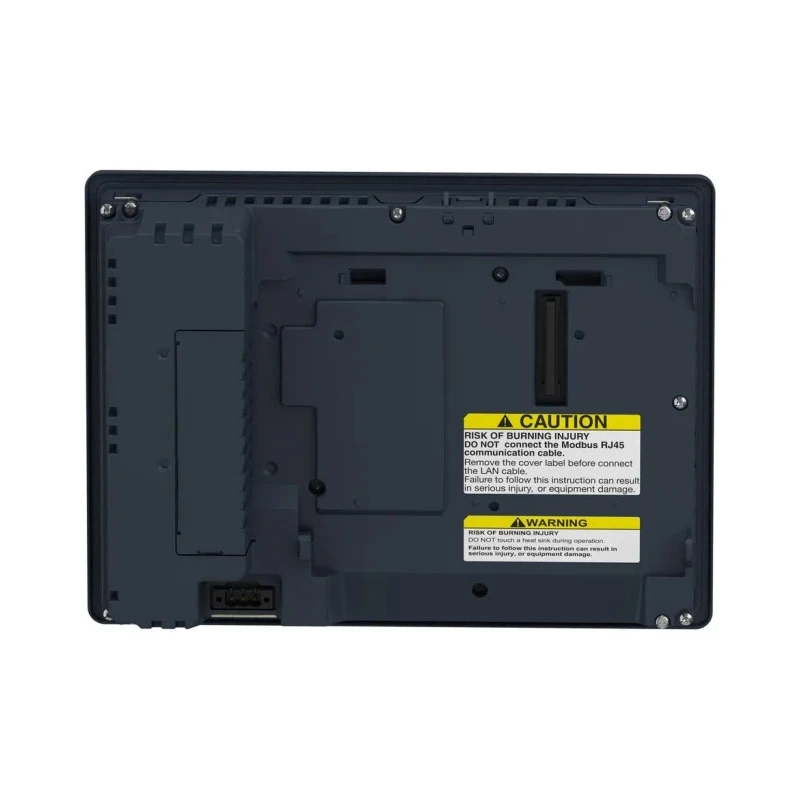

Schneider Electric Harmony Series Touch Screen HMI 10 in TFT Display 1280 x 800 pixel HMIDT551
Specifications
| Country of Origin | China |
|---|---|
| Display Type | TFT |
| Brand | Schneider Electric |
| Length | 269mm |
| Model | HMIDT551 |
| Depth | 67mm |
| IP Rating | IP67, IP66 |
| Width | 199mm |
| Series | Harmony |
| Number Of Ports | 6 |
| Display Resolution | 1280 x 800 pixel |
| Maximum Operating Temperature | 60°C |
| Port Type | Serial/Ethernet/USB |
| Minimum Operating Temperature | 0°C |
| Interfaces | USB and Ethernet ports |
| Standards/Approvals | CSA, IEC 61132-2, KC, UL, RCM, CE, cULus |
| Onboard Memory | 256MB |
| Diagonal Display Size | 10in |
Key Features
- The 10 inch diagonal TFT LCD screen has a 1280 x 800 pixel resolution offering sharp and accurate visualization.
- Equipped with 6 communication ports supporting Serial, Ethernet, and USB protocols.
- Operates between 0°C and 60°C temperature range for reliable use in industrial environments.
- Robust design with IP67 and IP66 ratings for protection against dust and water ingress.
- Includes 256 MB onboard memory to accommodate complex data and graphic displays.
- Compliant with international standards including CSA, IEC 61132-2, KC, UL, RCM, CE, and cULus certifications.
- Front USB ports and dual LAN interfaces enable flexible connectivity options.
- Supports animated synoptic views with multiple animation types for interactive control.
Product Description
Schneider Electric HMIDT551 Harmony Series Touch Screen HMI features a 10 inch TFT display with 1280 x 800 pixel resolution, designed for high-performance monitoring and communication in industrial automation systems.
This advanced touchscreen interface provides a smartphone-like user experience with multi-touch navigation capable of scrolling, sliding, and zooming even with gloves or screen protection.
The device includes 6 ports supporting Serial, Ethernet, and USB connections to ensure versatile communication options. It is equipped with 256 MB onboard memory, enabling control and configuration of complex data, graphic objects, and mimic diagrams.
Its rugged construction with IP66 and IP67 ratings allows installation in environments exposed to dust and water. The device operates reliably from 0°C up to 60°C, making it suitable for installation in cabinets without ventilation or in hot industrial environments.
Features such as front USB ports, animated synoptic views with 8 animation types, and dual LAN support enhance operational flexibility and interactivity on the factory floor.
Compliant with multiple international safety and quality standards including CSA, IEC 61132-2, KC, UL, RCM, CE, and cULus, this HMI is ideal for integration in complex machinery, food and beverage packaging lines, and other demanding industrial applications.
Designed and manufactured in China, the HMIDT551 promotes efficient control and monitoring in automation solutions, contributing to improved productivity and operational safety. The 10 inch TFT LCD screen delivers high resolution and color depth with 262,000 colors.
Six communication ports enable flexible connectivity via Serial, Ethernet, and USB. Protected with IP66/IP67 ratings for durability against contaminants. Operating temperature range from 0°C to 60°C supports harsh industrial settings.
256 MB onboard memory stores configuration and display data for sophisticated control. Compatible with 12 to 24 V DC power supply ensuring versatility. Support for animated synoptic views enhances user interface interactivity.
Explore more HMI Displays and Industrial Automation Systems on EnvMart to find comprehensive solutions for your automation needs.
