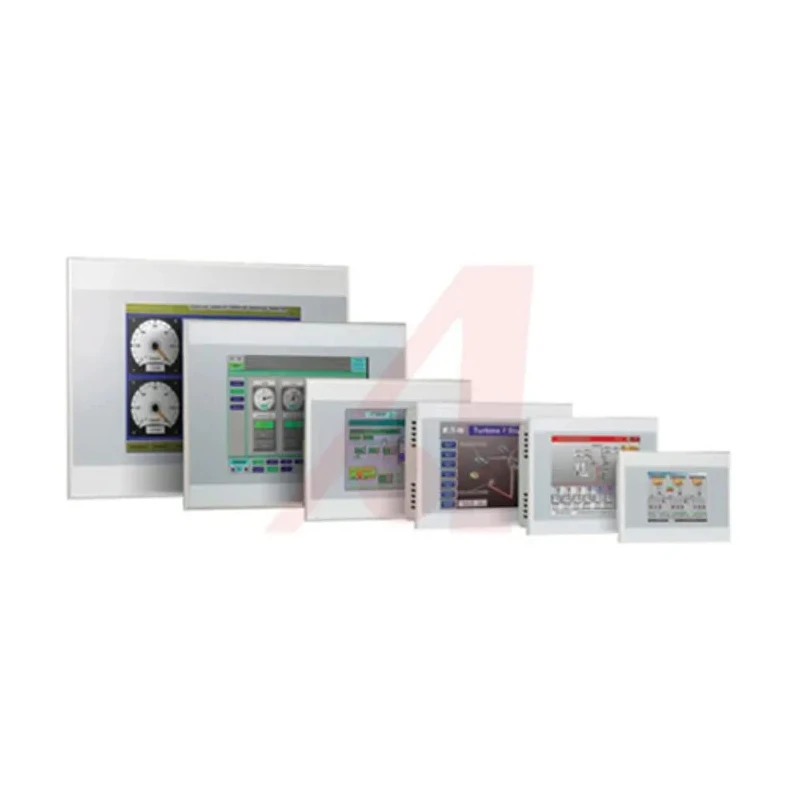

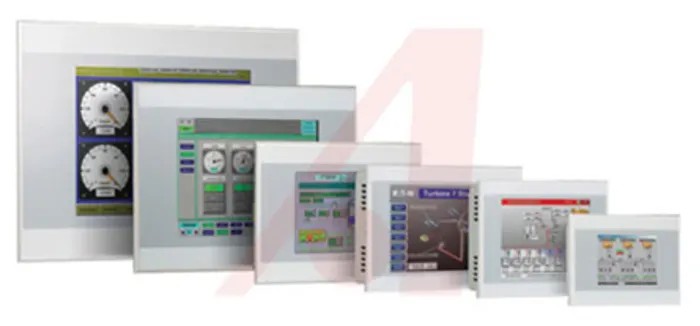

Eaton XV-102 Series Touch Screen HMI, 7 in TFT Display, 800 x 480 pixel, Ethernet, IP65/IP20, ATEX 148574 XV-102-D4-70TWRG-10
Specifications
| Country of Origin | India |
|---|---|
| Display Type | TFT |
| Display | 10.4" touchscreen |
| Brand | Eaton |
| Length | 210mm |
| Model | 148574 XV-102-D4-70TWRG-10 |
| Depth | 38mm |
| IP Rating | IP65, IP20 |
| Operating System | Windows CE 5.0 (licence included) |
| Width | 135mm |
| Series | XV-102 |
| Number Of Ports | 3 |
| Display Resolution | 800 x 480 pixel |
| Maximum Operating Temperature | 50°C |
| Port Type | Ethernet |
| Minimum Operating Temperature | 0°C |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | UL, CE |
| Diagonal Display Size | 7in |
Key Features
- Equipped with a 7 inch diagonal TFT touchscreen display offering 64000 colors.
- Display resolution is 800 x 480 pixels ensuring clear visualization.
- Supports 3 Ethernet ports for extensive connectivity.
- Features IP65 and IP20 ratings for protection in varied environments.
- Operates within temperature range of 0°C to 50°C.
- Certified to UL, CE, and ATEX standards for hazardous area use.
- Integrated with Windows CE 5.0 operating system for control applications.
Product Description
Eaton 148574 XV-102-D4-70TWRG-10 is a robust touch screen HMI panel designed for advanced industrial automation purposes, featuring a 7 inch TFT display with a resolution of 800 x 480 pixels.
The unit is part of Eaton's visualisation solutions integrated with the SmartWire-DT Communication system, offering enhanced connectivity through three Ethernet ports. It supports flush mounting and is suitable for industrial environments requiring robust protection with IP65 and IP20 rating on different surfaces.
Designed to operate reliably from 0°C to 50°C, this HMI supports a broad range of applications in manufacturing, process control, HVAC, and other sectors demanding precise human-machine interface solutions. The display supports 64000 colors, delivering clear and vibrant visualization critical for monitoring and control tasks.
The HMI is certified to meet UL, CE, and ATEX standards, making it safe for use in hazardous areas. Its compact form factor with dimensions of 210mm length, 135mm width, and 38mm depth ensures it can be integrated into panels with space constraints.
7 inch diagonal TFT touchscreen display with 64000 colors. Display resolution of 800 x 480 pixels for detailed graphical presentation. Three Ethernet ports for extensive network connectivity. IP65 and IP20 ingress protection ratings for industrial environments.
Operating temperature range of 0°C to 50°C ensuring reliable performance. Compact dimensions of 210 x 135 x 38 mm enable easy integration. Certified UL, CE, and ATEX hazardous area approvals for safety compliance. Runs Windows CE 5.0 operating system with licence included for operational flexibility.
This Eaton XV-102 Series Touch Screen HMI is ideal for use in industrial manufacturing plants, process automation, water treatment facilities, HVAC system controls, and other commercial automation applications requiring reliable and rugged human-machine interfaces.
Explore a broad range of Eaton automation components and accessories to complement your industrial automation and control systems on EnvMart.
Explore more products in our HMI Displays category.
