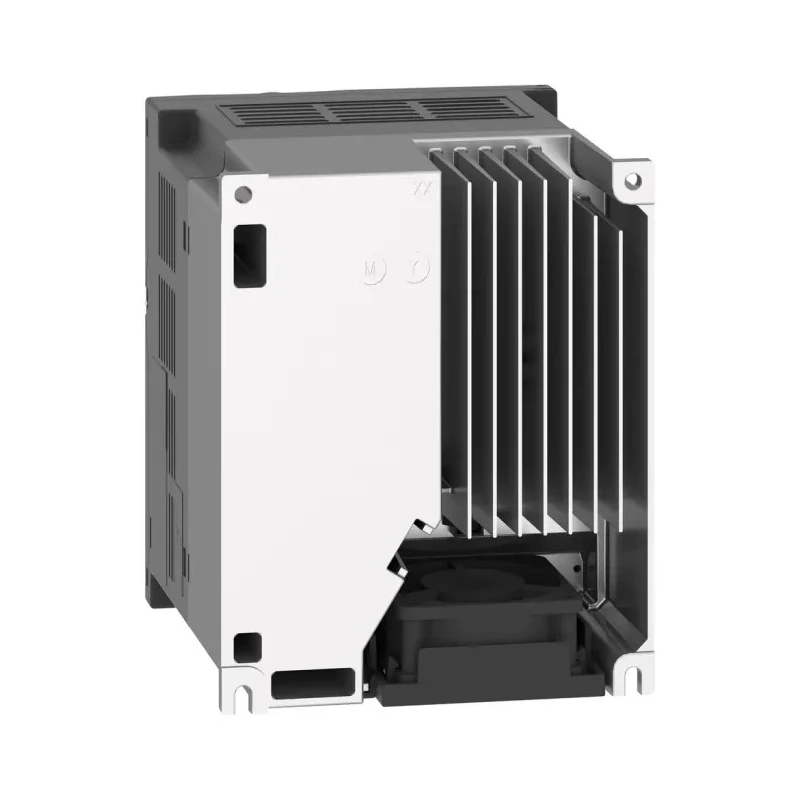

Schneider Electric Inverter Drive 3 kW 3 Phase ATV 212 Series 480V 7.2 A ATV212HU30N4

Free Delivery in India | Lowest Global Shipping Charges

Schneider Electric Inverter Drive 3 kW 3 Phase ATV 212 Series 480V 7.2 A ATV212HU30N4

Name: Schneider Electric Inverter Drive 3 kW 3 Phase ATV 212 Series 480V 7.2 A ATV212HU30N4
Brand: Schneider Electric
SKU: 248517
Price: 1564.75 USD
Availability: InStock



Category Inverter Drives Brand Schneider Electric Condition New

Specifications

Country of Origin	India
Brand	Schneider Electric
Model	ATV212HU30N4
IP Rating	IP20
Drive Type	Variable Speed
Mount Type	DIN Rail
Overall Length	184mm
Series	ATV 212
Overall Width	142mm
Power Rating	3kW
Maximum Operating Temperature	40°C
Output Frequency	200Hz
Minimum Operating Temperature	0°C
Number of Phases	3
Maximum Output Current	7.2A
Standards/Approvals	CE, CSA, UL
Overall Depth	150mm
Minimum Supply Voltage	480V
Better World Claim	Saves Energy
Compatible Motor Type	Asynchronous Motor

Key Features

Supports variable speed drive with maximum output current of 7.2 A.
Compact dimensions of 142mm width, 184mm height, and 150mm depth for DIN Rail mounting.
Energy efficient design reduces consumption by up to 70% compared to conventional systems.
IP21 protection rating ensures finger-safe operation and resistance to objects >12.5 mm.
Equipped with built-in EMC filter and supports communication protocols such as Modbus and BACnet.
Compatible with HVAC, fluid management, water treatment, and industrial applications.
Lightweight at 3.35 kg for easy installation and handling.

Product Description

Schneider Electric ATV212HU30N4 inverter drive is a 3 kW, 3-phase variable speed drive designed for asynchronous motors with rated voltages from 380V to 480V AC. It features a compact DIN Rail mount design measuring 142mm wide, 184mm high, and 150mm deep, and weighs 3.35 kg, facilitating easy installation and integration into automation systems.

The drive offers a maximum output current of 7.2 A and supports output frequencies up to 200 Hz. Its IP21 rating provides finger-safe protection against solid objects larger than 12.5 mm. Its built-in EMC filter minimizes electromagnetic disturbances, ensuring compliance with IEC/EN 61800-5-1 and IEC/EN 61800-3 standards. The drive’s eco-friendly design reduces energy consumption by up to 70% compared to traditional control systems, making it ideal for energy-conscious industrial environments.

The ATV212HU30N4 includes advanced cable temperature rise reduction technology, eliminating the need for additional components like line or DC chokes to manage current harmonics. Designed for vertical panel mounting, it offers four fixing holes and supports multiple communication protocols such as Modbus, METASYS N2, APOGEE FLN P1, and BACnet, allowing seamless integration with building management systems.

Industry applications include HVAC systems, fluid management in tertiary sector buildings, process and packaging industries, as well as water and sewage treatment plants. The drive provides optional motor chokes to enable longer cable runs and to reduce disturbances at motor terminals.

Supports variable speed control for asynchronous motors. Compact and lightweight design facilitates installation. Built-in EMC filter ensures compliance with international standards. Energy-saving technology reduces operational costs.

IP21 rating for safe industrial use. Multiple communication protocols included. Suitable for HVAC, industrial automation, and water treatment applications.

Schneider Electric Inverter Drives are trusted solutions for efficient motor control in various industrial and commercial automation tasks. Explore the full range of Schneider Electric products and related industrial automation equipment at EnvMart.
