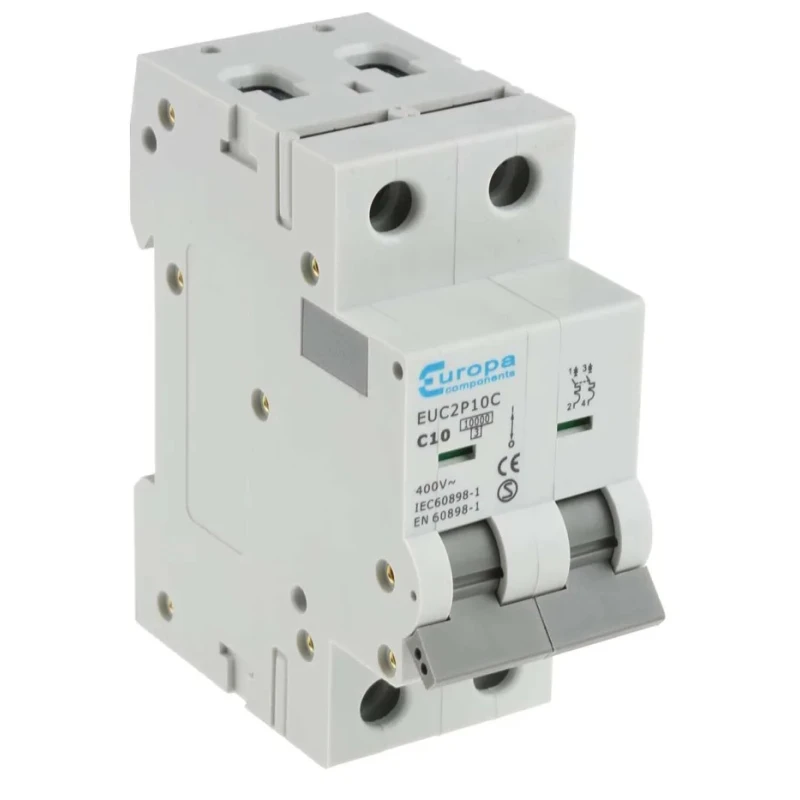

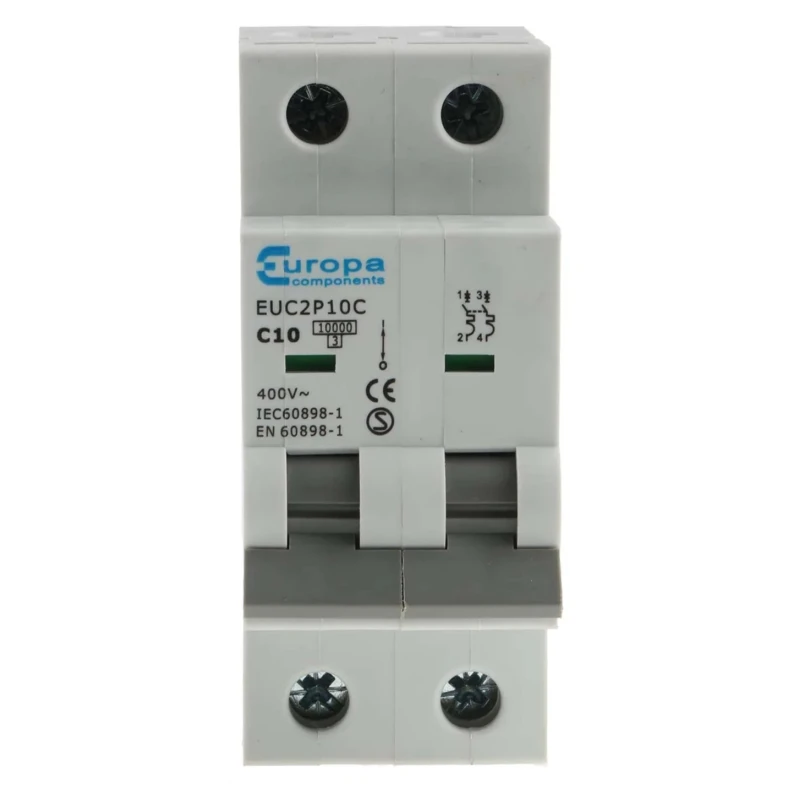

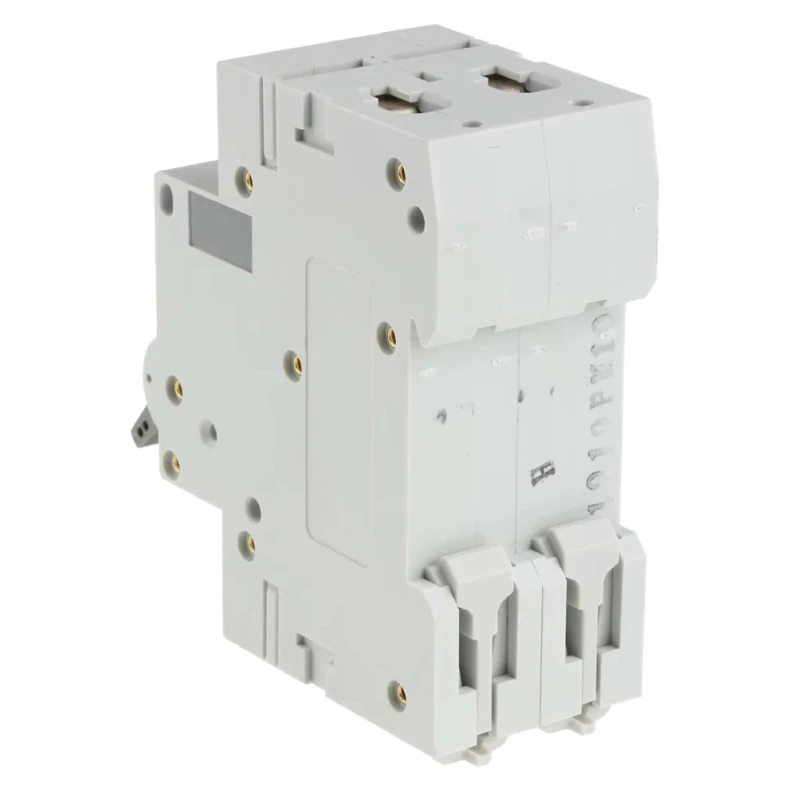

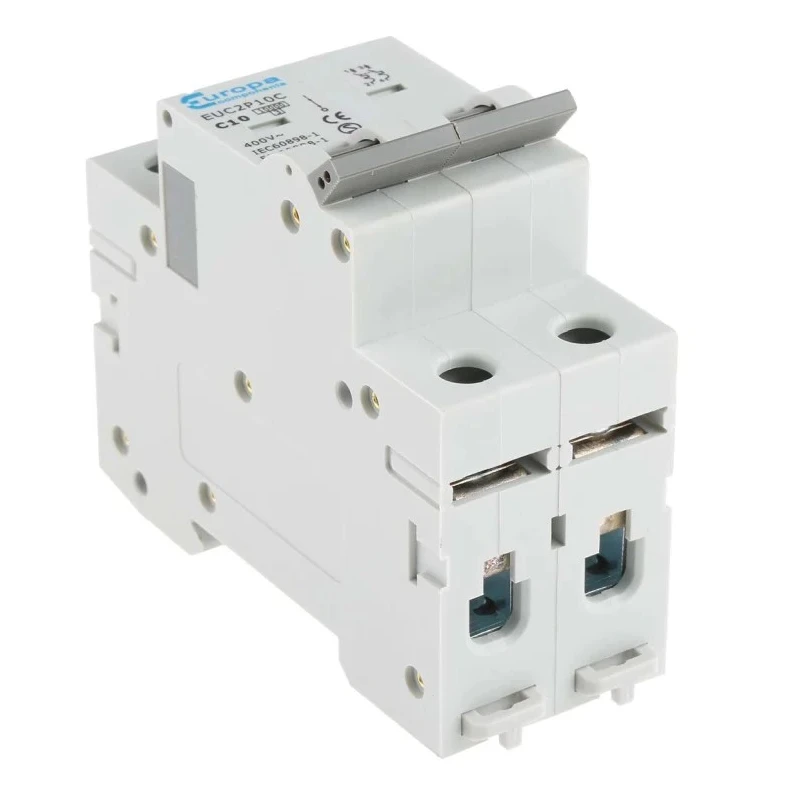

Europa Miniature Circuit Breaker 2-Pole 10A Type C 400V AC 10 kA Breaking Capacity EUC2P
Specifications
| Country of Origin | China |
|---|---|
| Range | EUC2P |
| Brand | Europa |
| Height | 36mm |
| Model | EUC2P |
| Depth | 87mm |
| IP Rating | IP20 |
| Width | 78mm |
| Mount Type | DIN Rail |
| Current Rating | 10A |
| Terminal Capacity | 1mm2 to 25mm2 |
| Series | EUC2P |
| Terminal type | Tunnel |
| Breaking Capacity | 10kA |
| Number of Poles | 2 |
| Standards/Approvals | CE, EN 60898, IEC 60898, SEMKO |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Reset Actuator Type | Toggle Switch |
Key Features
- Suitable for DIN rail mounting in electrical consumer units.
- Features a toggle switch reset actuator for easy operation.
- Has an IP20 rating ensuring protection against solid objects.
- Terminal capacity supports 1mm² to 25mm² conductor sizes.
- Complies with IEC 60898 and EN 60898 international standards.
- Includes CE and SEMKO approvals for safety and reliability.
- Operates reliably within -5° to 40°C ambient temperature.
Product Description
Europa EUC2P Miniature Circuit Breaker is a high-quality 2-pole electrical protection device rated at 10 amperes current capacity, designed to operate at 400V AC voltage. It features Type C tripping characteristics suitable for general industrial and commercial electrical installations where protection against overload and short circuit is critical.
This miniature circuit breaker comes with a robust Toggle Switch reset actuator and is mounted on a standard 35mm DIN rail, making installation straightforward in electrical panels and consumer units. The device supports conductor terminal capacity ranging from 1mm² to 25mm², providing versatility for various wiring sizes.
Built with an IP20 rating, it ensures protection from accidental contact with live parts. The compact dimensions of 78mm width, 36mm height, and 87mm depth allow it to fit neatly in tight panel spaces. It is manufactured to meet IEC 60898 and EN 60898 standards, with CE and SEMKO certifications that guarantee stringent safety and performance requirements.
Operating temperature ranges from -5° to 40°C, making it suitable for diverse environmental conditions found in industrial, commercial, and residential electrical setups. The breaking capacity of 10 kA ensures the circuit breaker can safely interrupt fault currents, preventing electrical hazards and equipment damage.
Suitable for DIN rail mounting in electrical panels and consumer units. Compact form factor with standard 35mm width mounting compatibility. Toggle switch actuator for reliable manual reset. Terminal capacity for conductors from 1mm² to 25mm².
Protection rating IP20 for user safety. Meets IEC 60898 and EN 60898 international standards. Certified with CE and SEMKO marks. Operating temperature from -5° to 40°C.
This Miniature Circuit Breaker is ideal for industrial, commercial, and residential electrical protection applications to prevent overloads and short circuits. It ensures electrical system reliability and safety for electrical installations and distribution systems.
Explore the complete range of circuit breakers and electrical protection devices in the Electronics & Electricals category at EnvMart for optimal safety and performance solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Europa Miniature Circuit Breaker is rated for a current capacity of 10 amperes.
It has a breaking capacity of 10 kA, allowing it to safely interrupt fault currents.
This model features Type C tripping characteristics, suitable for general industrial and commercial applications.
The rated AC voltage for this miniature circuit breaker is 400V.
It supports a terminal capacity ranging from 1mm² to 25mm² for conductor sizes.
The dimensions are 78mm in width, 36mm in height, and 87mm in depth.
This miniature circuit breaker has an IP20 rating, providing protection against solid objects.
It is designed for DIN rail mounting, making installation straightforward in electrical panels.
It complies with IEC 60898 and EN 60898 standards and is certified with CE and SEMKO approvals.
The operating temperature range is from -5° to 40°C, suitable for various environments.
It features a toggle switch reset actuator for easy manual operation.
The country of origin for this miniature circuit breaker is China.
