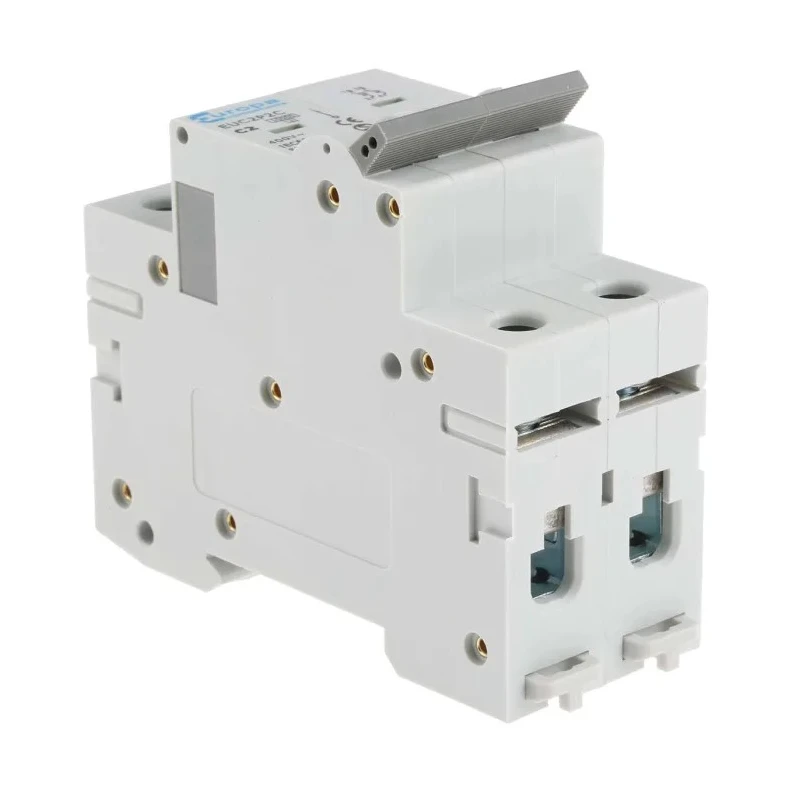

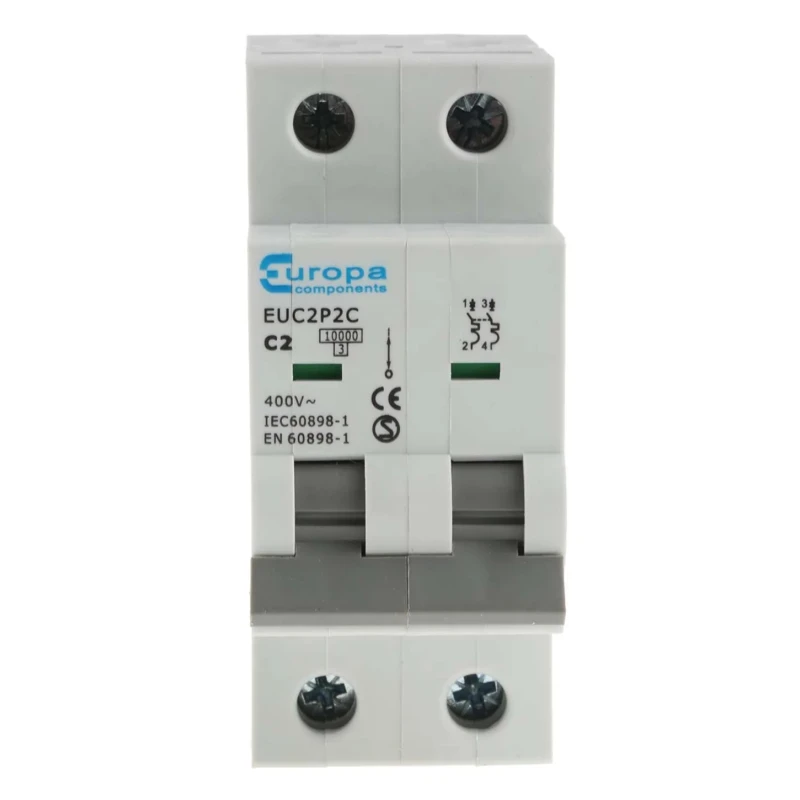

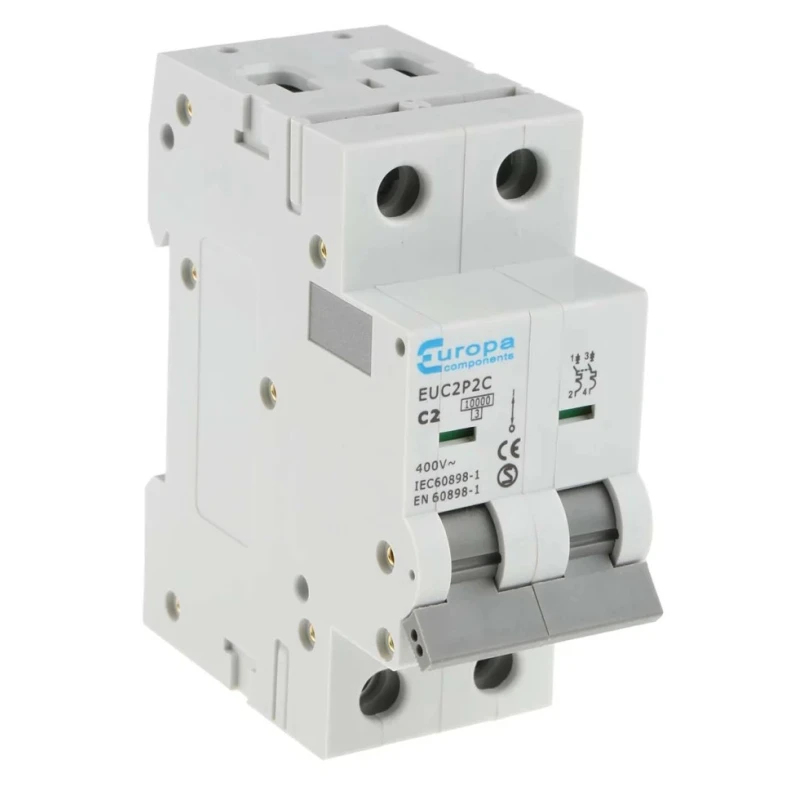

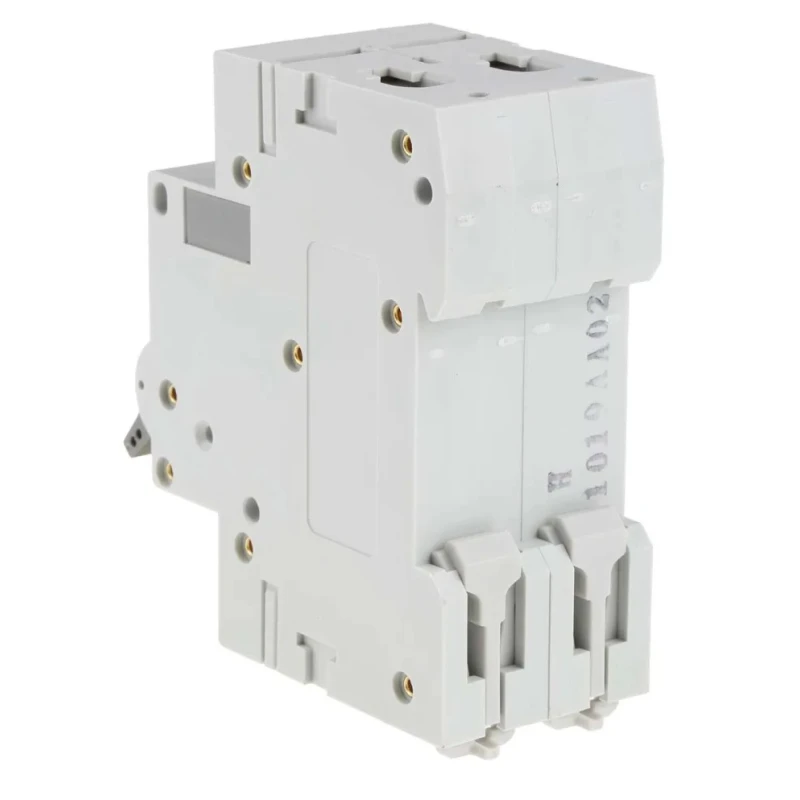

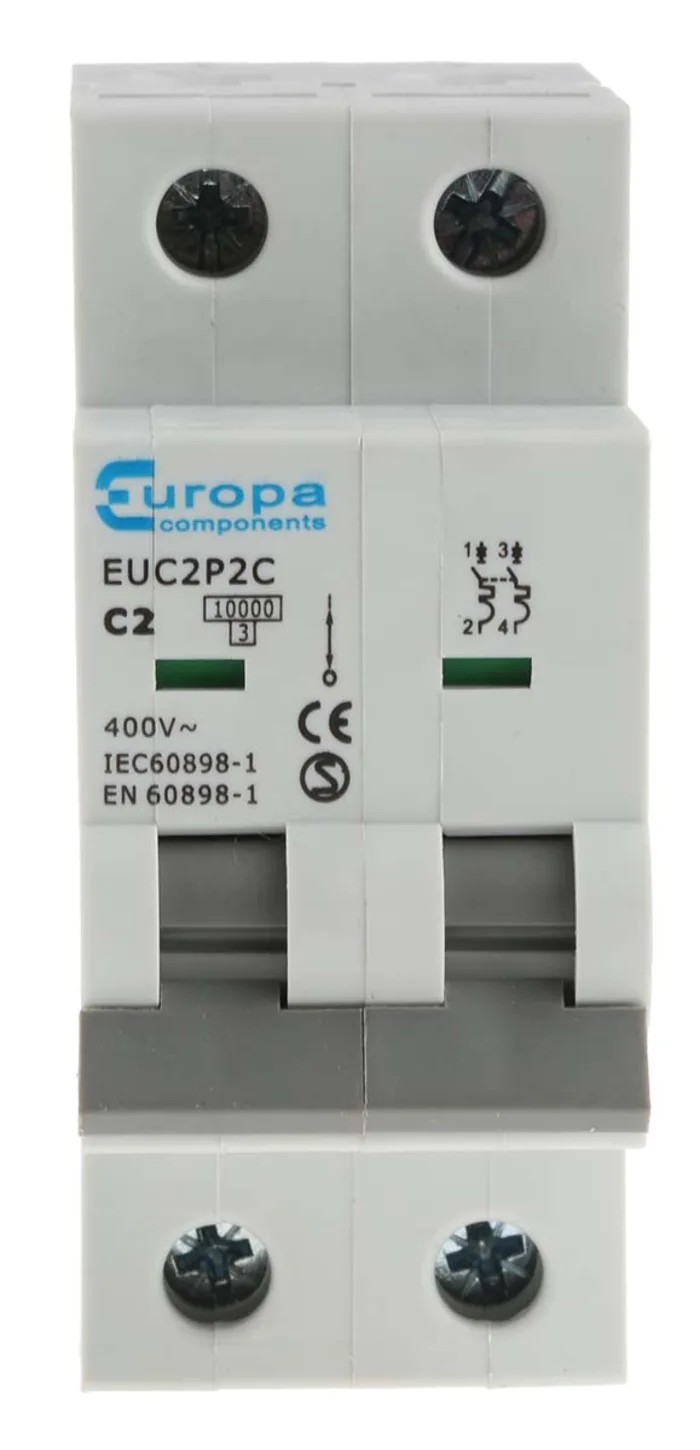

Europa Miniature Circuit Breaker, 2-Pole, 2A Current Rating, Type C Tripping, 400V AC Voltage, 10kA Breaking Capacity EUC2P
Specifications
| Country of Origin | China |
|---|---|
| Range | EUC2P |
| Brand | Europa |
| Height | 36mm |
| Model | EUC2P |
| Depth | 87mm |
| IP Rating | IP20 |
| Width | 78mm |
| Mount Type | DIN Rail |
| Current Rating | 2A |
| Terminal Capacity | 1mm2 to 25mm2 |
| Series | EUC2P |
| Terminal type | Tunnel |
| Breaking Capacity | 10kA |
| Number of Poles | 2 |
| Standards/Approvals | CE, EN 60898, IEC 60898, SEMKO |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Reset Actuator Type | Toggle Switch |
Key Features
- Compact design with dimensions of 36mm height, 78mm width, and 87mm depth.
- Features Type C tripping characteristic for reliable overload protection.
- Supports breaking capacity of 10kA ensuring high safety standards.
- Easy DIN rail mount installation with tunnel type terminals.
- Equipped with toggle switch reset actuator for quick manual reset.
- Rated to operate within an ambient temperature range of -5° to 40°C.
- IP20 rated for protection against solid foreign objects.
- Terminal capacity ranges from 1mm² to 25mm² for versatile wiring options.
Product Description
The Europa EUC2P miniature circuit breaker is engineered for safe and reliable protection of electrical circuits in industrial, commercial, and residential installations. Operating at 400V AC with a 2A current rating, this 2-pole breaker features a Type C tripping characteristic suitable for moderate inrush currents typically encountered in lighting and motor control circuits.
Its compact form factor measures 36mm in height, 78mm in width, and 87mm in depth, enabling easy integration into consumer units and distribution boards. The device mounts securely on a standard 35mm DIN rail, providing convenience for electrical panel assembly.
The toggle switch actuator allows manual resetting post-trip, enhancing maintenance efficiency. The breaker is designed with tunnel type terminals that accept conductor sizes from 1mm² to 25mm², catering to a broad range of wiring needs.
Constructed to meet CE standards and approved according to EN 60898 and IEC 60898 for quality and safety assurance, the MCB offers a robust breaking capacity of 10kA. Its IP20 rating ensures protection against finger contact and foreign objects, making it suitable for protected electrical environments.
Operating temperature range from -5°C to 40°C supports diverse environmental conditions. Originating from China, this product line from Europa components provides trusted circuit protection solutions.
Compact and efficient 2-pole 2A Type C MCB. Enhanced safety with 10kA breaking capacity. Standard DIN rail mounting for easy installation. Wide terminal capacity for flexible cable connections. Certified with CE, IEC 60898, EN 60898, and SEMKO approvals.
IP20 ingress protection suitable for enclosed electrical panels. Manual toggle reset for operational convenience. Reliable performance across typical working temperatures.
This Miniature Circuit Breaker is ideal for use in electrical distribution systems requiring conformity to international standards and dependable circuit interruption performance. Browse the Electronics & Electricals section for additional circuit protection devices to complement your setup.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This miniature circuit breaker has a current rating of 2A.
It features a breaking capacity of 10kA, ensuring reliable circuit protection.
The dimensions of this circuit breaker are 36mm in height, 78mm in width, and 87mm in depth.
This model is designed for DIN rail mounting, which simplifies installation in electrical panels.
It is rated to operate at 400V AC voltage.
This circuit breaker features a Type C tripping characteristic, suitable for moderate inrush currents.
The terminal capacity ranges from 1mm² to 25mm², accommodating various wiring needs.
It has an IP20 rating, providing protection against solid foreign objects.
The operating temperature range is from -5°C to 40°C, allowing for use in diverse environments.
It is equipped with a toggle switch reset actuator for quick manual reset after tripping.
It is certified with CE, EN 60898, IEC 60898, and SEMKO approvals, ensuring compliance with safety standards.
This miniature circuit breaker is suitable for industrial, commercial, and residential electrical installations.
