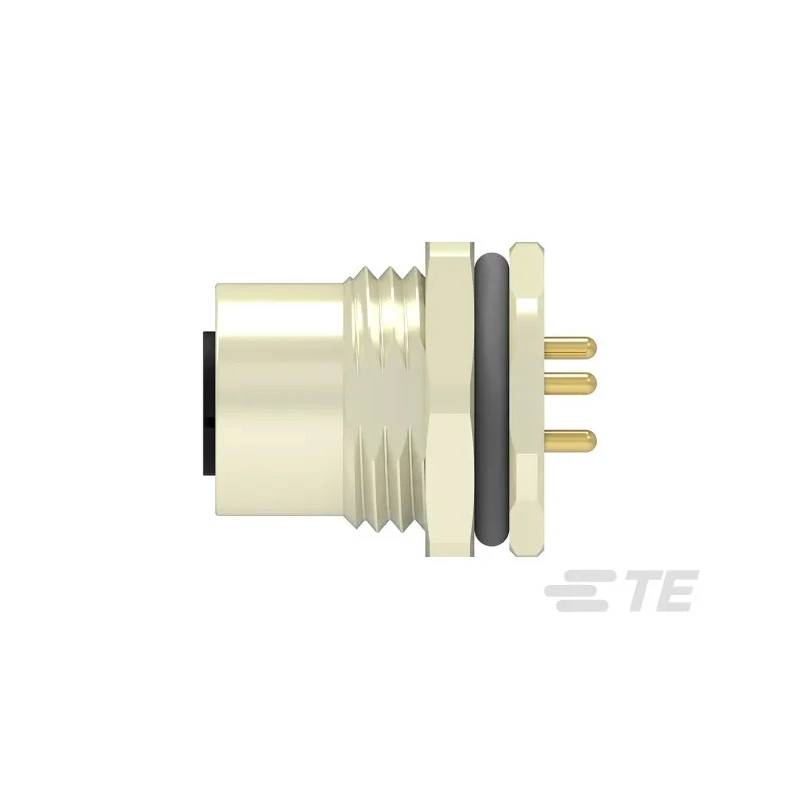

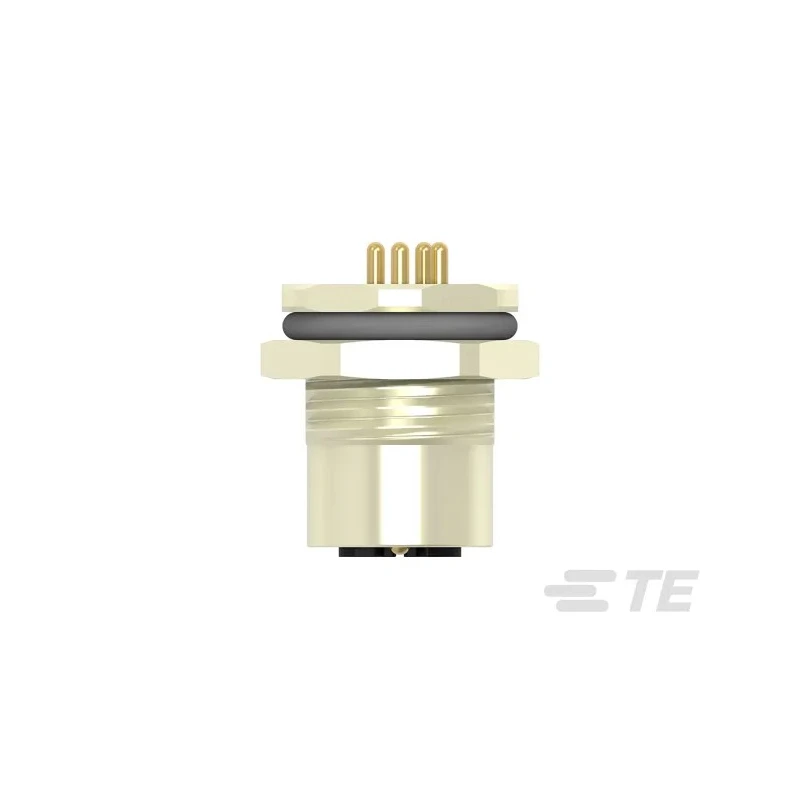

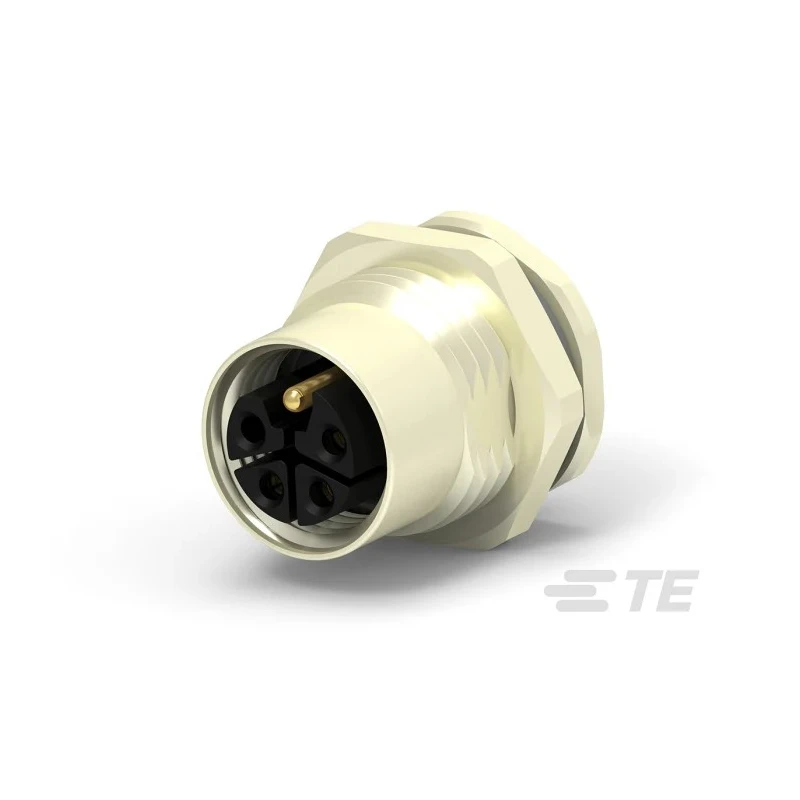

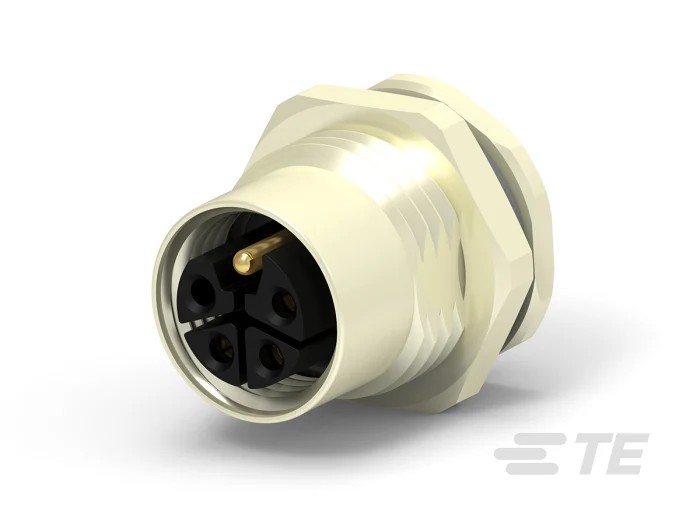

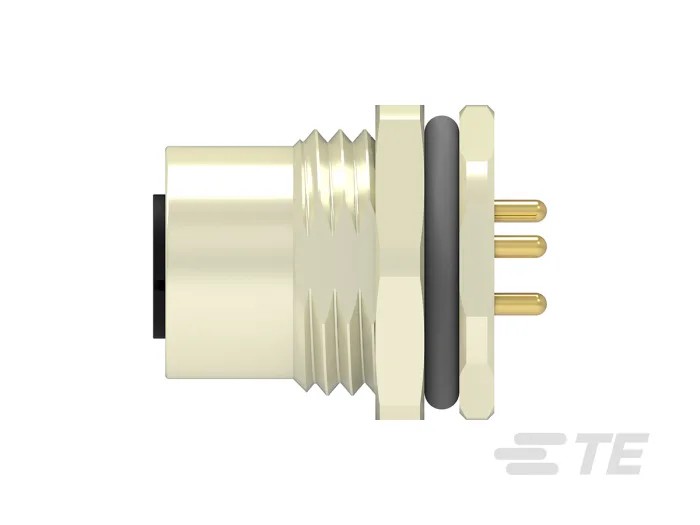

TE Connectivity Circular Connector 3 Contacts Rear Mount M12 Socket Female IP67 Polymer Housing T4141L12041-000
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 63V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 16A |
| Model | T4141L12041-000 |
| IP Rating | IP67 |
| Mount Type | Rear |
| Housing Material | Polymer |
| Contact Material | Copper |
| Series | M12 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 3+PE |
| Contact Plating | Nickel |
| Number of Contacts | 3 |
| Contact Gender | Female |
| Shell Size | 18 |
| Connector Size | M12 |
| Plug/Socket | Socket |
| Coding | L |
| Handles currents | up to 16A per Pin |
Key Features
- This M12 series connector features a female contact configuration suitable for industrial environments.
- It offers IP67 protection rating, ensuring resistance to dust and water ingress.
- The connector supports currents up to 16A per pin at 63 volts operating voltage.
- Constructed with polymer housing and nickel-plated copper contacts for durability and corrosion resistance.
- Designed for solder termination and straight orientation with L-coding for secure connections.
- Operates reliably in temperatures from -40°C up to 85°C, suitable for harsh conditions.
- Compact shell size of 18 mm allows for space-efficient installations in automation systems.
- Ideal for factory automation, robotics, industrial machinery, motors, drives, and lighting applications.
Product Description
TE Connectivity model T4141L12041-000 is a high-performance circular connector tailored for industrial use. This M12 series connector features 3 contacts configured in a female socket with rear mount type design, ensuring reliable and secure connections in demanding environments. Its IP67 ingress protection rating guarantees excellent resistance against dust and water, making it suitable for wet and harsh industrial settings.
The connector supports currents up to 16A per pin at an operating voltage of 63V, powered through nickel-plated copper contacts housed within a polymer shell. The solder termination type and L-coding provide precision in installation, while a straight orientation assists in neat wiring assemblies.
Designed to function in temperature ranges spanning -40°C to 85°C, the T4141L12041-000 delivers durability and dependable performance across various factory automation, robotics, motor control, industrial machinery, and lighting applications.
The compact 18 mm shell size enables efficient space utilization within control panels and distribution boxes. This connector supports modern industrial connectivity standards and offers four times the power of standard M12 connectors, facilitating miniaturization and high-density wiring in automation systems.
This M12 circular connector provides a compact solution with 3+PE pole format for power distribution. Nickel plating on copper contacts ensures extended corrosion resistance and electrical conductivity. Polymer housing enhances durability and environmental protection.
Rear mount solder termination simplifies integration into industrial control systems. L-coding ensures correct mating and prevents connection errors. IP67 rating certifies waterproof and dustproof sealing for industrial environments.
Voltage rating of 63V and current rating of 16A per pin meets industrial power requirements. Wide operating temperature range from -40°C to 85°C for diverse operational needs.
Set ideal for use in motors and drives, robotics, industrial lighting, and distribution boxes. TE Connectivity circular connectors are trusted components for demanding industrial applications and are designed to withstand harsh environmental conditions.
Discover the full range of circular connectors and related components in EnvMart's industrial electrical connectors category for professional use.
Explore more products in our Industrial Circular Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports currents up to 16A per pin.
It has a voltage rating of 63V.
The connector features an IP67 rating, providing excellent resistance against dust and water ingress.
It operates reliably in temperatures ranging from -40°C to 85°C.
The housing is made of polymer, while the contacts are nickel-plated copper.
It uses a solder termination type for secure connections.
This model features 3 contacts in a female socket configuration.
The shell size is 18 mm, allowing for compact installations.
It employs L-coding for secure and correct mating connections.
It is ideal for use in factory automation, robotics, industrial machinery, motors, drives, and lighting applications.
This model features a rear mount design for easy integration into systems.
The country of origin for this connector is India.
