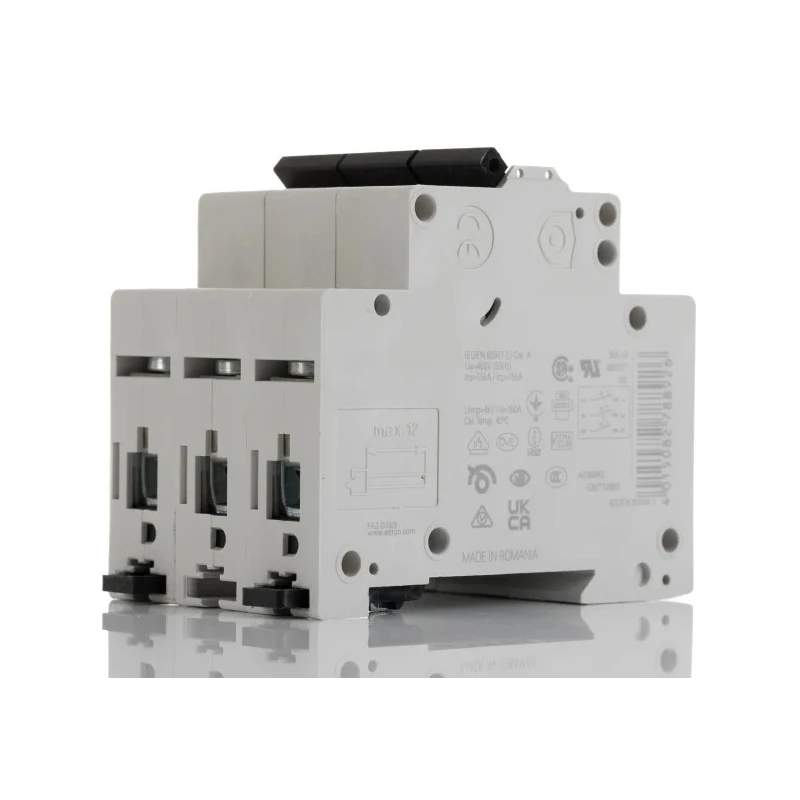

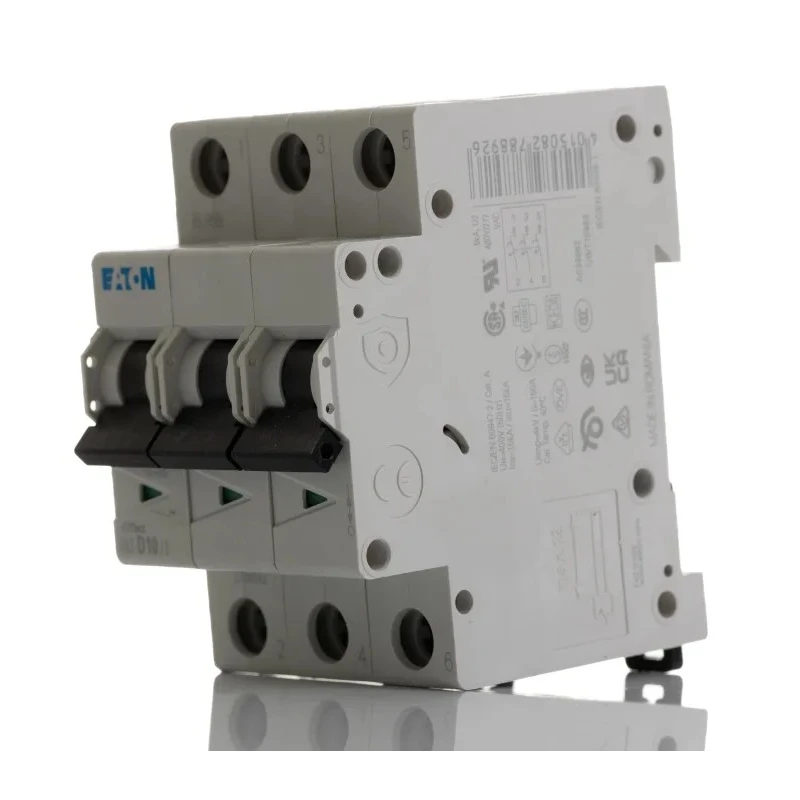

Eaton xEffect Miniature Circuit Breaker, 3-Pole, 10A, Type D, 415V AC, 10 kA Breaking Capacity 278892 FAZ-D10/3

Eaton 278892 FAZ-D10/3 Miniature Circuit Breaker is a 3-pole device designed for reliable protection against overloads, short circuits, and overcurrents in industrial and commercial electrical installations operating at 415V AC. It features a type D tripping curve suitable for heavy inductive loads such as large motors and welding equipment.

This MCB offers a breaking capacity of 10 kA, allowing it to safely interrupt high fault currents, thus preventing damage to connected equipment and wiring systems. The device mounts easily on standard DIN rails and uses screw terminals to ensure secure and stable electrical connections.

IP20 rating ensures the breaker is touch-proof, providing protection against solid objects greater than 12mm in diameter. Its compact dimensions of 85mm width and 73mm depth facilitate quick and space-efficient installation in distribution panels.

The tripping mechanism is thermal magnetic, providing both thermal protection for overloads and instantaneous magnetic protection for short circuits. The toggle switch reset actuator allows for easy manual resetting after a trip event.

Designed to operate in a wide ambient temperature range of -40°C to +75°C, this miniature circuit breaker is built for durable performance in harsh industrial environments. Additionally, it withstands impulse voltages of up to 4 kV to enhance electrical safety during transient surges.

Manufactured in Romania, the FAZ-D10/3 model ensures quality and standards compliance without any trade-offs. Provides 3-pole electrical protection with a 10A current rating and type D trip characteristics. Breaking capacity of 10 kA at 415V AC ensures reliable fault interruption.

DIN rail mounting for quick and secure panel integration. IP20 rating offers touch protection and resistance to large solid objects. Compact size (85mm width, 73mm depth) optimizes panel space. Thermal magnetic tripping mechanism covers overloads and instantaneous faults.

Toggle switch reset for straightforward manual operation. Wide operating temperature range suitable for demanding environments. Impulse voltage withstand up to 4 kV enhances safety against surges. Manufactured in Romania for assured quality.

This Miniature Circuit Breaker is ideal for use in industrial, manufacturing, commercial, and heavy-duty electrical systems requiring robust protection against electrical faults. Its design and performance specifications support applications such as motor protection, welding equipment circuits, and other high inductive load handling environments.
