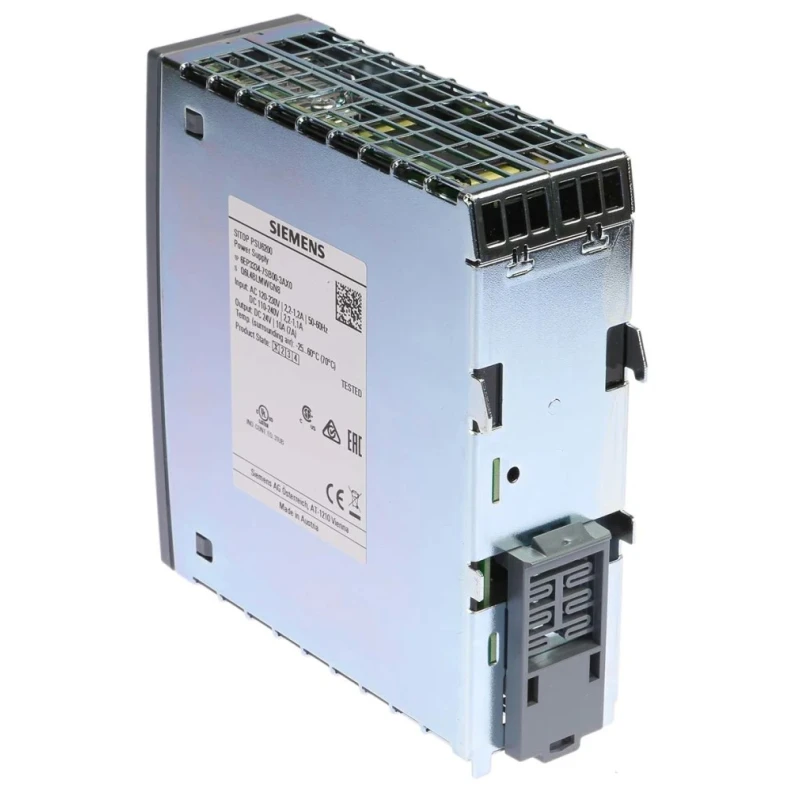

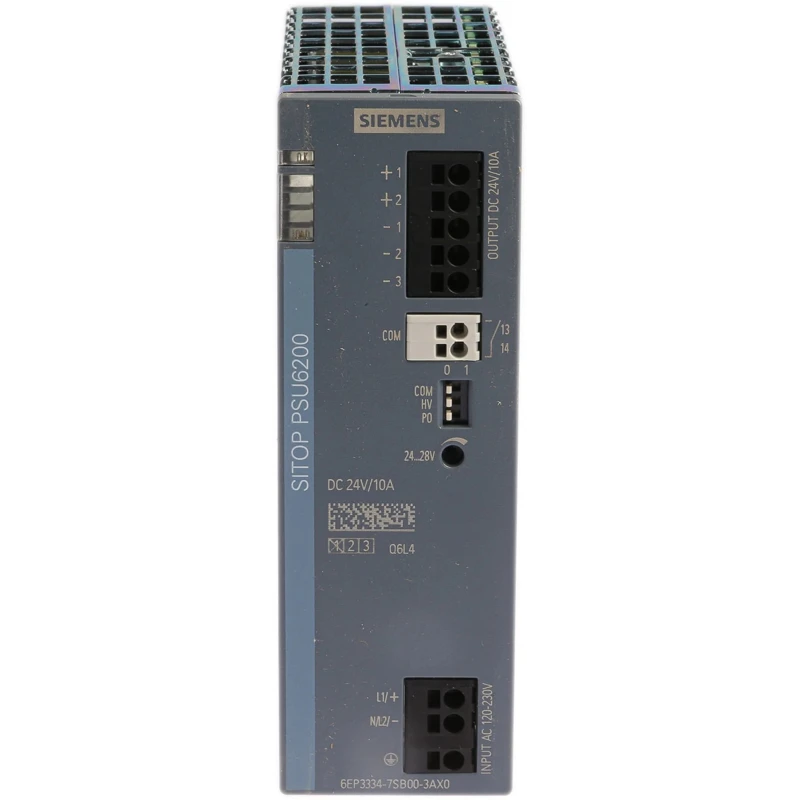

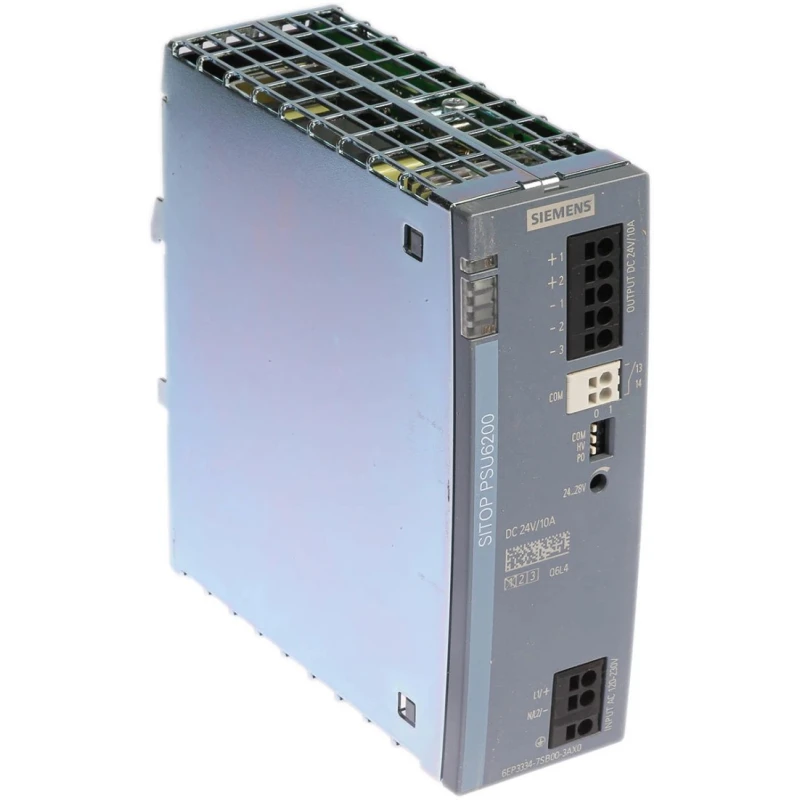

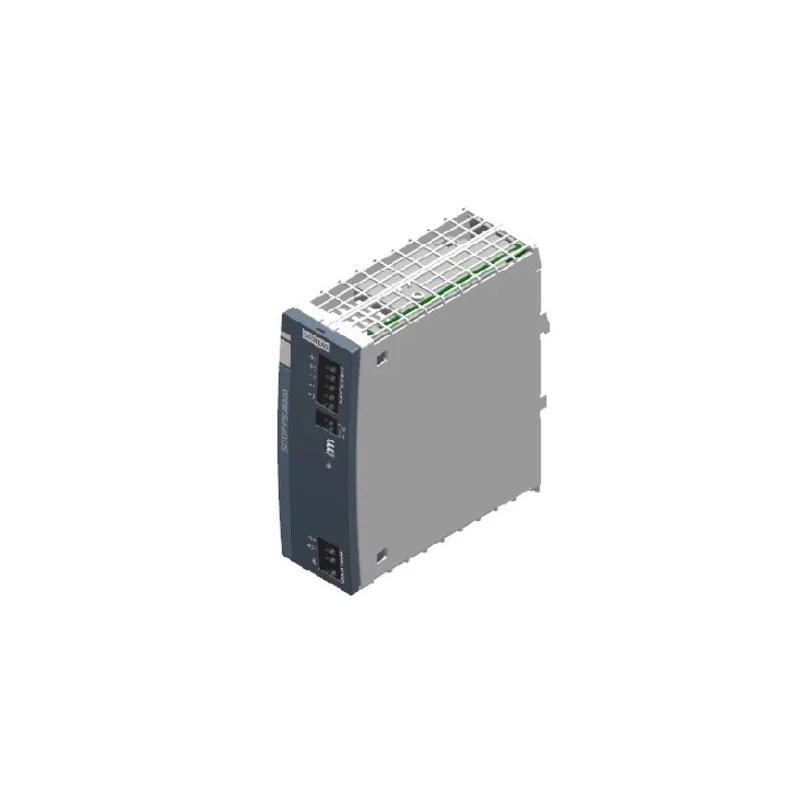

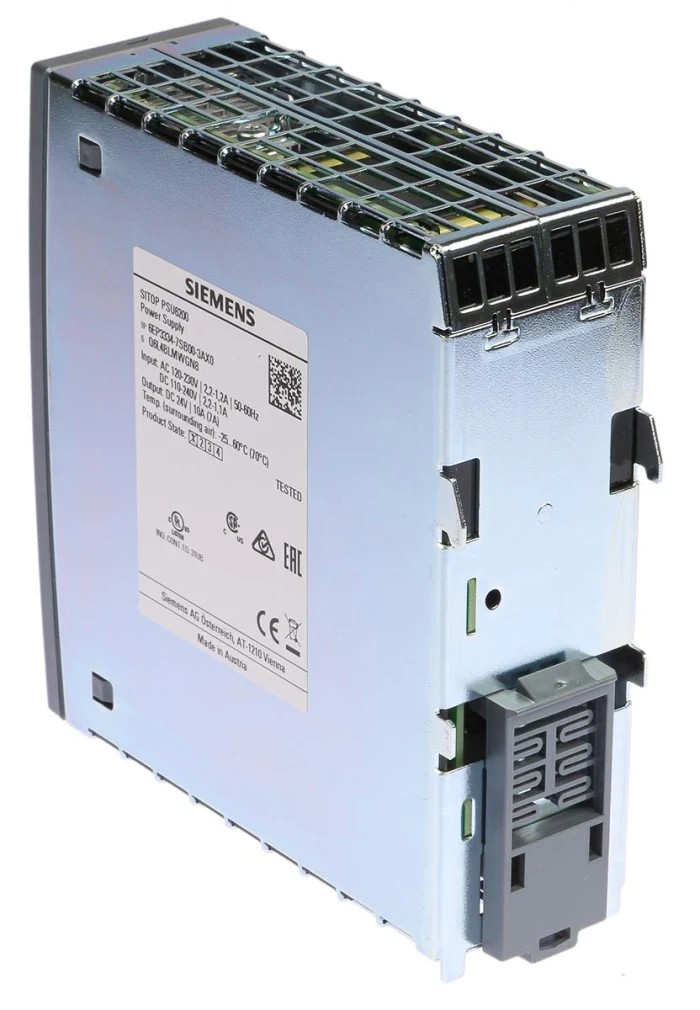

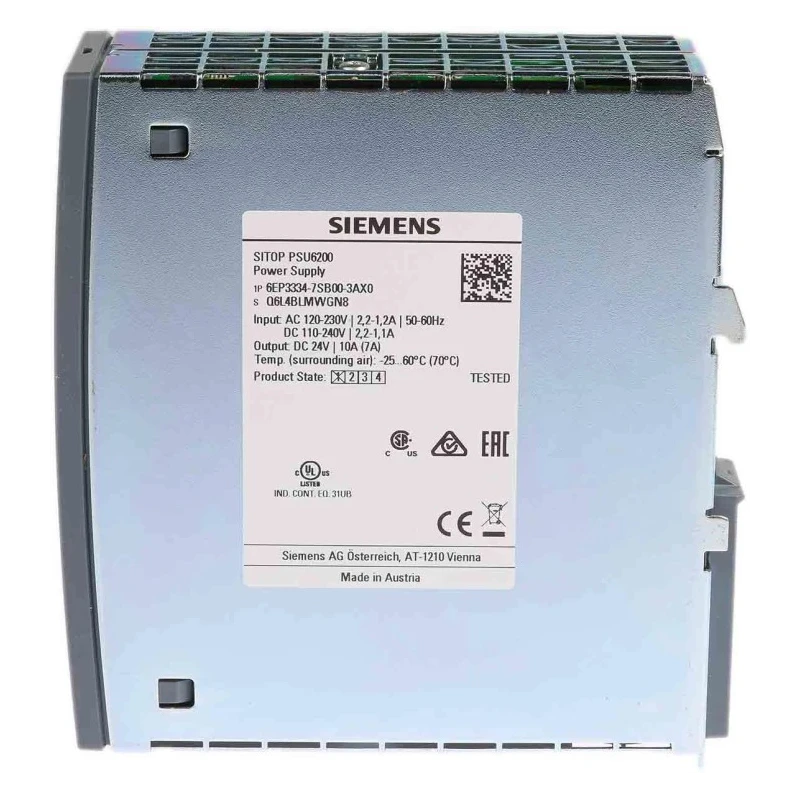

Siemens SITOP PSU6200 Switched Mode DIN Rail Power Supply 230V AC / 240V DC Input, 24V DC 10A Output 240W
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | Siemens |
| Power | 240W |
| Efficiency | 92.8% |
| Height | 135mm |
| Model | PSU6200 |
| Depth | 125mm |
| IP Rating | IP20 |
| Width | 45mm |
| Series | SITOP PSU6200 |
| Output Current | 10A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 240, 230V dc |
| Electrical Phase | 1 |
| Maximum Output Voltage | 24V dc |
| Minimum Input Voltage | 85V ac |
| Better World Claim | Saves Energy |
Key Features
- Supports AC/DC input voltage from 85V AC to 264V AC and 230V/240V DC.
- Compact dimensions of 45mm width, 125mm depth, and 135mm height.
- Operating temperature range from -25°C to 70°C for versatile environments.
- High efficiency of 92.8% reduces energy use and thermal stress.
- IP20 rated enclosure suitable for indoor industrial settings.
- LED status indicators enable quick fault identification.
- Passive cooling with air vents prevents overheating without fans.
- Complies with multiple safety and EMC certifications including UL and CE.
Product Description
Siemens 6EP3334-7SB00-3AX0 SITOP PSU6200 Series Switched Mode DIN Rail Power Supply is engineered for industrial and manufacturing environments requiring stable and efficient power delivery. It converts AC input voltages from 85V to 264V and DC inputs up to 240V into a regulated 24V DC output at 10A, providing 240W power for connected devices.
This power supply is designed for reliability with a wide operating temperature range from -25°C to 70°C, ensuring performance in challenging conditions. Its compact form factor measuring 45mm in width, 125mm in depth, and 135mm in height facilitates installation even in space-constrained enclosures.
The unit features an IP20 rated enclosure with top-positioned air vents that enable passive cooling, thus preventing overheating without the need for fans. LED status indicators provide visible fault alerts for quick diagnostics, minimizing downtime.
Safety and standards compliance are assured through multiple certifications including UL 60950-1, EN 61000-6-2, EN 55022 Class B, and CE marking. The power supply also includes features such as shutdown and automatic periodic restarts to protect connected equipment from transient overvoltages up to 300V for 30 seconds.
This SITOP PSU6200 is suitable for use in industrial automation, data banks, control systems, and other commercial applications requiring reliable DC power from AC or DC input sources. It snaps onto standard DIN rails, making installation straightforward and tool-free.
Supports AC/DC input voltage ranging from 85V AC to 264V AC and 230V/240V DC. Delivers fixed 24V DC output at 10A, 240W power rating. Compact size: 45mm (W) x 125mm (D) x 135mm (H). Operating temperature range: -25°C to 70°C.
IP20 protection and passive cooling with air vents. LED fault indication for easy maintenance. Multiple international certifications for safety and EMC. Overvoltage protection with shutdown and restart features. Simple DIN rail mounting installation.
Explore more Siemens power supplies and industrial automation products at EnvMart for efficient and secure electrical power solutions.
Explore more products in our DIN Rail Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports an input voltage range from 85V AC to 264V AC and 230V/240V DC.
The power supply has compact dimensions of 45mm in width, 125mm in depth, and 135mm in height.
It has an efficiency rating of 92.8%, which helps reduce energy use and thermal stress.
The operating temperature range is from -25°C to 70°C, making it suitable for various environments.
Yes, it includes overvoltage protection with shutdown and automatic periodic restarts to protect connected equipment.
It employs passive cooling with air vents, eliminating the need for fans and preventing overheating.
This power supply has an IP20 rating, indicating it is suitable for indoor industrial settings.
It snaps onto standard DIN rails, allowing for straightforward and tool-free installation.
It complies with multiple safety and EMC certifications including UL 60950-1, EN 61000-6-2, EN 55022 Class B, and CE marking.
This model features one output, providing a single regulated power supply option.
It is suitable for use in industrial automation, data banks, control systems, and other commercial applications requiring reliable DC power.
