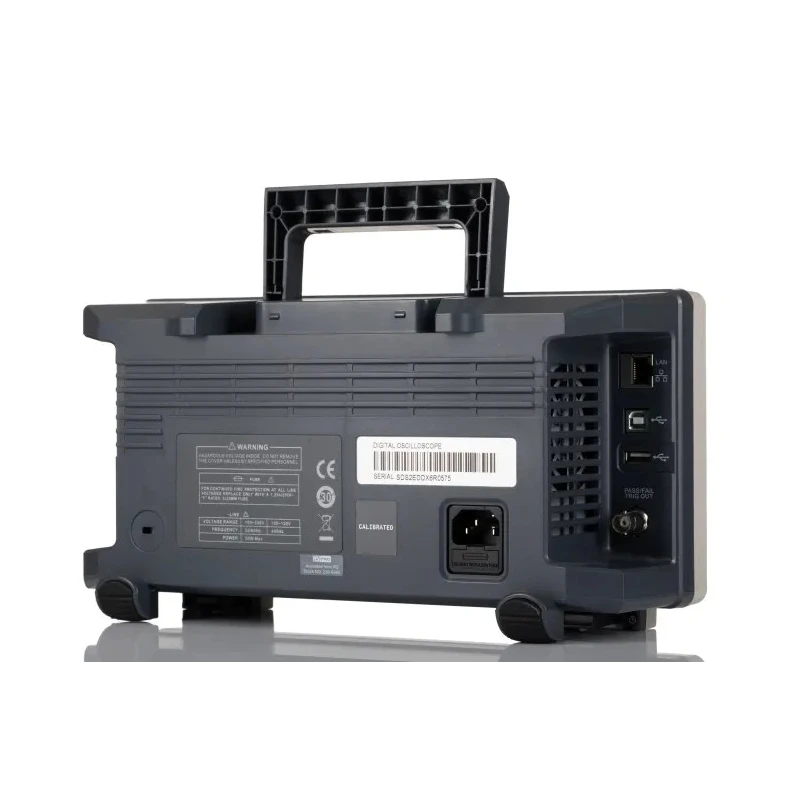

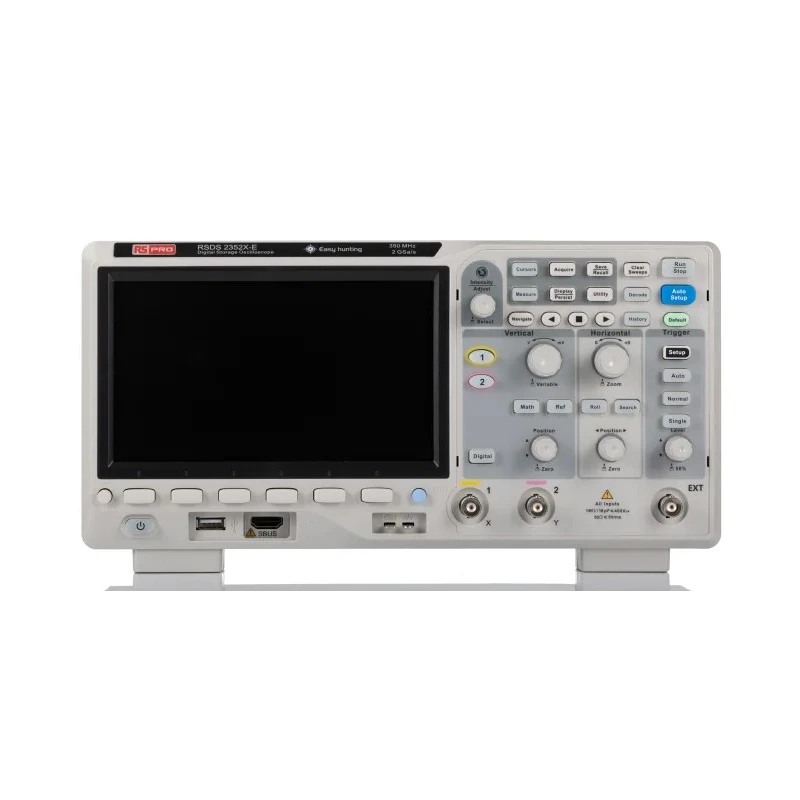

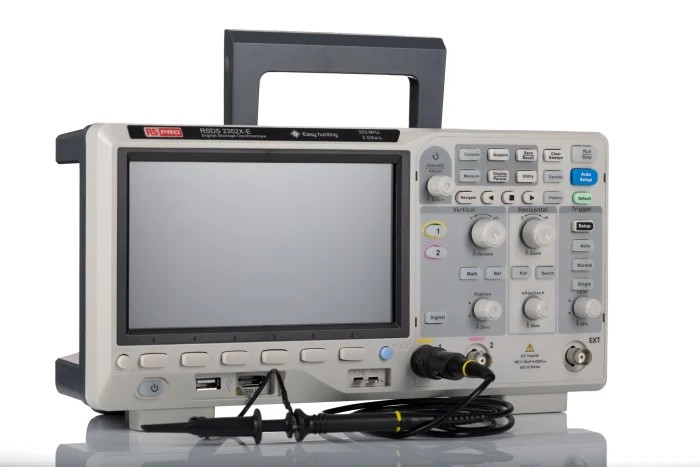

RS PRO 350 MHz Bench Oscilloscope, 18 Channels, Digital Phosphor, USB Interface, 7 in TFT LCD Screen, Model 236-9004
Specifications
| Country of Origin | China |
|---|---|
| Display Type | TFT LCD |
| Brand | RS PRO |
| Height | 151mm |
| Model | 236-9004 |
| Depth | 312mm |
| Operating System | Windows 7, Windows 8, Windows 10 |
| Width | 132.6mm |
| Bandwidth | 350MHz |
| Screen Size | 7 in |
| Interfaces | USB cable, passive probe and software installation CD that includes the user manual for the oscilloscope |
| Number Of Channels | 18 |
| Vertical Resolution | 8 bit |
| Memory Depth | 14Mpts |
| Rise Time | 1ns |
| Waveform Refresh Rate | 110000per sec |
| Interface Type | USB |
| Oscilloscope Type | Bench |
| Minimum Vertical Sensitivity | 10mV/div |
| Standards/Approvals | EMC EN 61326-1:2013, RoHS |
| Calibrated | RSCAL |
| Oscilloscope Form | Digital Phosphor |
| Minimum Time Base | 500ps/div |
| Maximum Time Base | 100s/div |
| Standards/ApprovalsEMC EN 61326-1 | 2013, RoHS |
Key Features
- The oscilloscope features 2 analogue and 16 digital channels offering wide measurement capabilities.
- Equipped with a 7-inch TFT LCD display for clear waveform visualization.
- USB interface enables easy connectivity and data download.
- High memory depth of 14 Mpts ensures detailed data capture.
- Digital phosphor technology improves waveform rendering and analysis.
- Supports automatic measurement and diverse trigger functions for versatile testing.
- Includes power cable, USB cable, passive probe, and software installation CD with user manual.
- Compatible with Windows 7, 8, and 10 operating systems.
Product Description
RS PRO 236-9004 Bench Oscilloscope is a digital phosphor oscilloscope offering a bandwidth of 350 MHz with 18 total channels, including 2 analogue and 16 digital channels. Featuring a 7-inch TFT LCD, this oscilloscope provides clear and precise waveform visualization essential for testing and measuring complex electronic signals.
This bench oscilloscope offers high memory depth of 14 Mpts and a real-time sampling rate of 2 GSa/s on a single channel and 1 GSa/s on dual channels, allowing thorough signal capturing and analysis. Its digital phosphor technology provides fast waveform refresh rate and improved display clarity.
The product supports a range of automatic measurement functions and a variety of trigger modes, making it highly versatile for different test scenarios. The interface is user-friendly and includes USB connectivity for easy downloading of measurement data to your PC.
It comes supplied with a power cable, USB cable, passive probe, and software installation CD that includes a user manual, facilitating quick setup and operation. The oscilloscope is calibrated (RSCAL) and meets EMC EN 61326-1:2013 and RoHS standards, ensuring reliability and compliance.
Applications include circuit measurement, wind and photovoltaic power equipment testing, automotive electronics including electric vehicle systems, electric power system monitoring, industrial and quality control testing, as well as educational and scientific research uses.
Operating system support encompasses Windows 7, Windows 8, and Windows 10, ensuring compatibility with common PC environments. The Oscilloscope features 2 analogue and 16 digital channels offering wide measurement capabilities.
Equipped with a 7-inch TFT LCD display for clear waveform visualization. USB interface enables easy connectivity and data download. High memory depth of 14 Mpts ensures detailed data capture. Digital phosphor technology improves waveform rendering and analysis.
Supports automatic measurement and diverse trigger functions for versatile testing. Includes power cable, USB cable, passive probe, and software installation CD with user manual. Compatible with Windows 7, 8, and 10 operating systems.
Suitable for circuit measurement, renewable energy equipment testing, automotive electronics, electric power systems, and scientific research. Explore more industrial test and measurement instruments from RS PRO and other reputed brands at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bandwidth of this oscilloscope is 350 MHz, allowing it to measure a wide range of electronic signals effectively.
It features a total of 18 channels, which includes 2 analogue channels and 16 digital channels for versatile measurement capabilities.
The maximum real-time sampling rate is 2 GSa/s on a single channel and 1 GSa/s on dual channels, enabling thorough signal analysis.
The oscilloscope is equipped with a 7-inch TFT LCD display, providing clear and precise waveform visualization.
It has a memory depth of 14 Mpts, which allows for detailed data capture during measurements.
This model is compatible with Windows 7, Windows 8, and Windows 10 operating systems, ensuring ease of use with common PC environments.
Included with the oscilloscope are a power cable, USB cable, passive probe, and a software installation CD that contains the user manual.
The vertical resolution is 8 bit, with a minimum vertical sensitivity of 10 mV/div, allowing for detailed signal measurements.
It meets EMC EN 61326-1:2013 and RoHS standards, ensuring compliance with relevant safety and environmental regulations.
The rise time of this oscilloscope is 1 ns, which is crucial for accurately measuring fast signal transitions.
It is suitable for applications such as circuit measurement, automotive electronics testing, renewable energy equipment testing, and scientific research.
The waveform refresh rate is 110,000 waveforms per second, which enhances the clarity of the displayed signals during testing.
