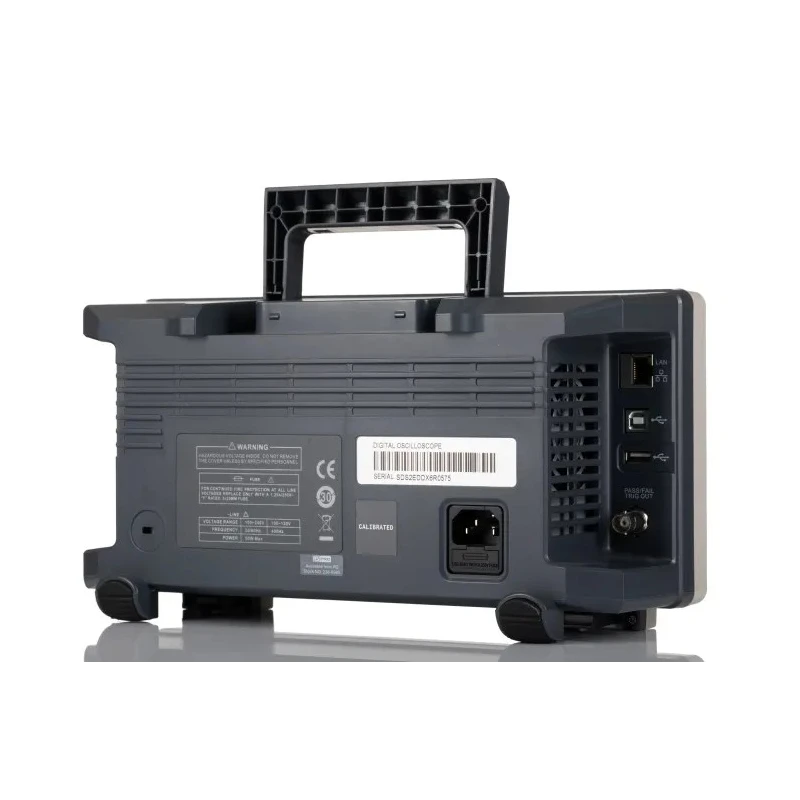

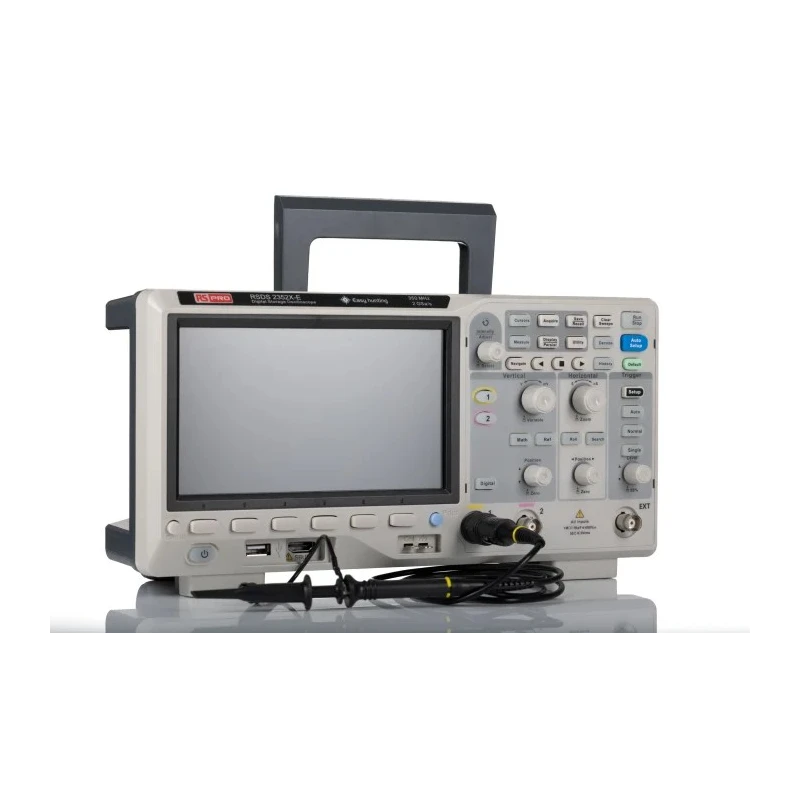

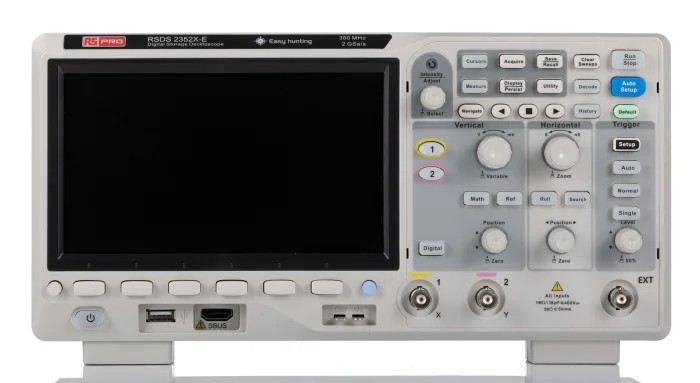

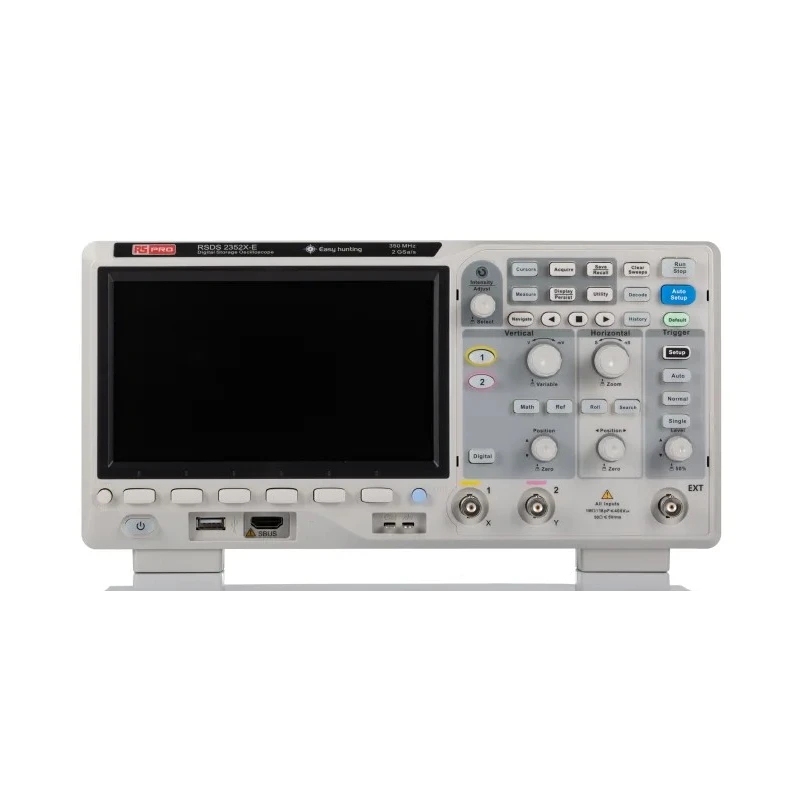

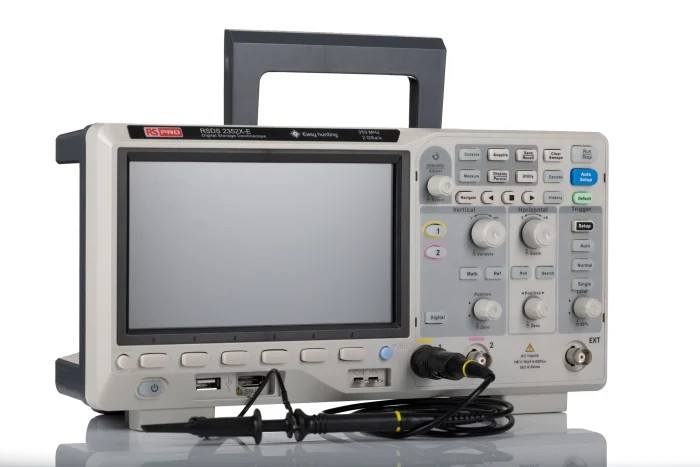

RS PRO 350 MHz Bench Digital Phosphor Oscilloscope, 18 Channels, 7-inch TFT LCD 236-8985

RS PRO 236-8985 350 MHz Bench Digital Phosphor Oscilloscope is a high-quality test and measurement instrument designed for precise electronic signal analysis and waveform capture. Featuring an 18-channel capability with 2 analogue and 16 digital channels, this oscilloscope supports a bandwidth up to 350 MHz with a real-time sampling rate of 2 GSa/s on a single channel. The 7-inch TFT LCD screen offers clear waveform visualization with an 8-bit vertical resolution and 110000 waveform refresh rate per second.

The oscillator includes a memory depth of 14 Mpts and supports fast, accurate measurements for complex electronic signals. Its USB interface enables straightforward connection for downloading data and software installation, compatible with Windows 7, 8, and 10 operating systems. The oscilloscope is equipped with a variety of automatic measurement and trigger functions to meet diverse testing requirements.

Compactly designed with dimensions of 151 mm height, 132.6 mm width, and 312 mm depth, this bench oscilloscope is built to fit efficiently into laboratory or industrial environments. It is suitable for a broad range of applications including circuit measurement, renewable energy equipment testing such as wind and photovoltaic power, automotive and electric vehicle electronics analysis, electric power system diagnostics, industrial manufacturing quality control, as well as education and scientific research.

The package includes a power cable, USB cable, passive probe, and software installation CD containing the user manual for easy setup and use. RS PRO 236-8985 ensures reliable performance with advanced features tailored for professional engineers and technicians.

Bandwidth of 350 MHz for precise signal measurement. High channel count with 2 analog and 16 digital inputs. Deep memory buffer of 14Mpts to capture detailed waveforms. Fast sampling rates up to 2 GSa/s on single channels.

7-inch TFT LCD display with clear waveform visualization. USB connectivity for data transfer and software installation. Multiple trigger and automatic measurement capabilities. Compact and ergonomic design suitable for lab and industrial use.

Wide application including automotive, renewable energy, and industrial sectors. Complete accessory kit with power cable, probe, and software CD. Explore the RS PRO range for comprehensive solutions in Oscilloscopes and laboratory instruments tailored to diverse industrial and research applications.
