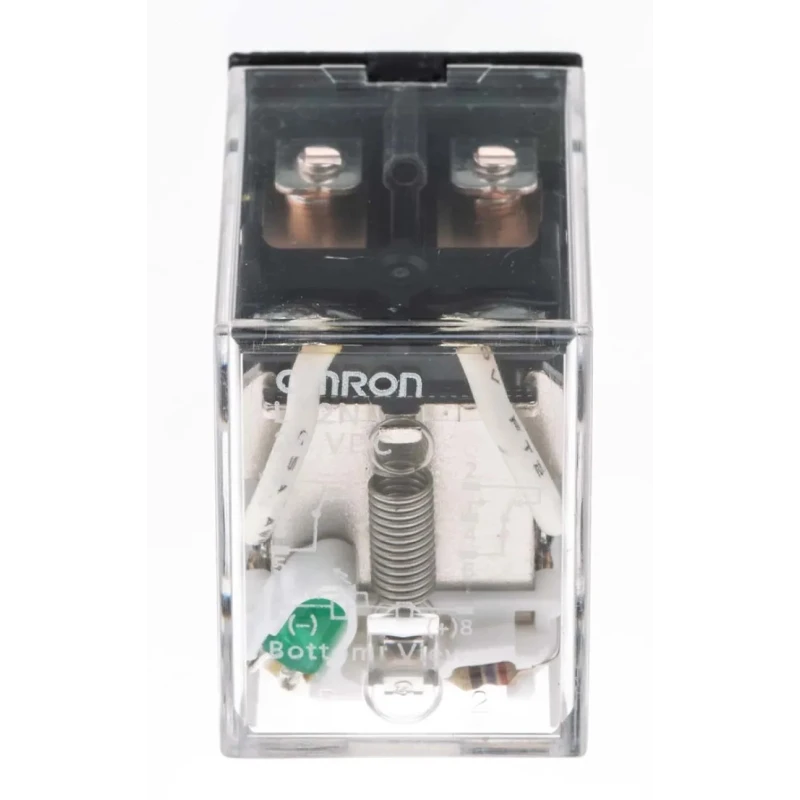

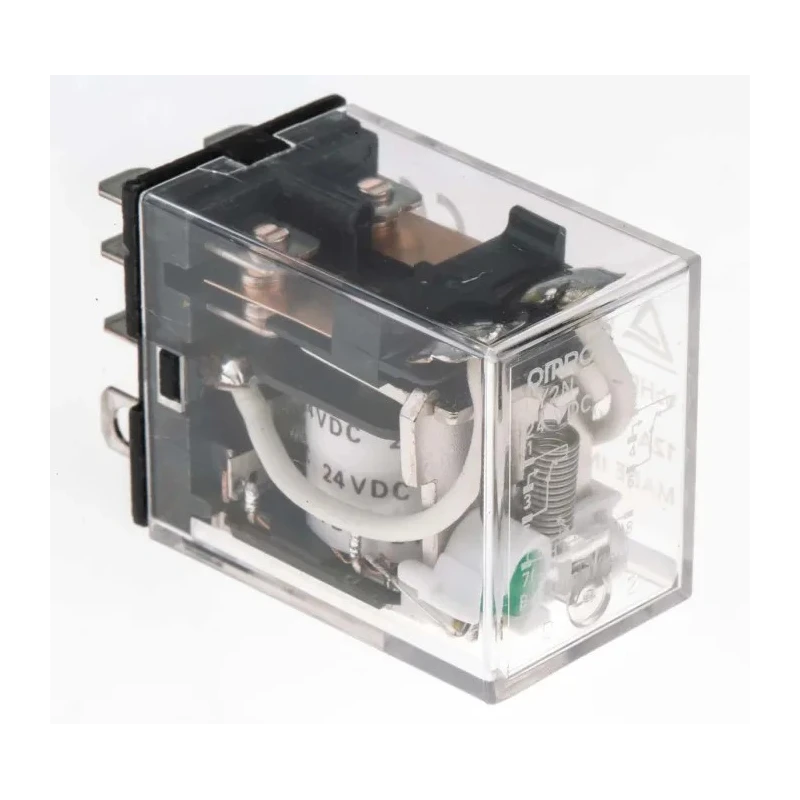

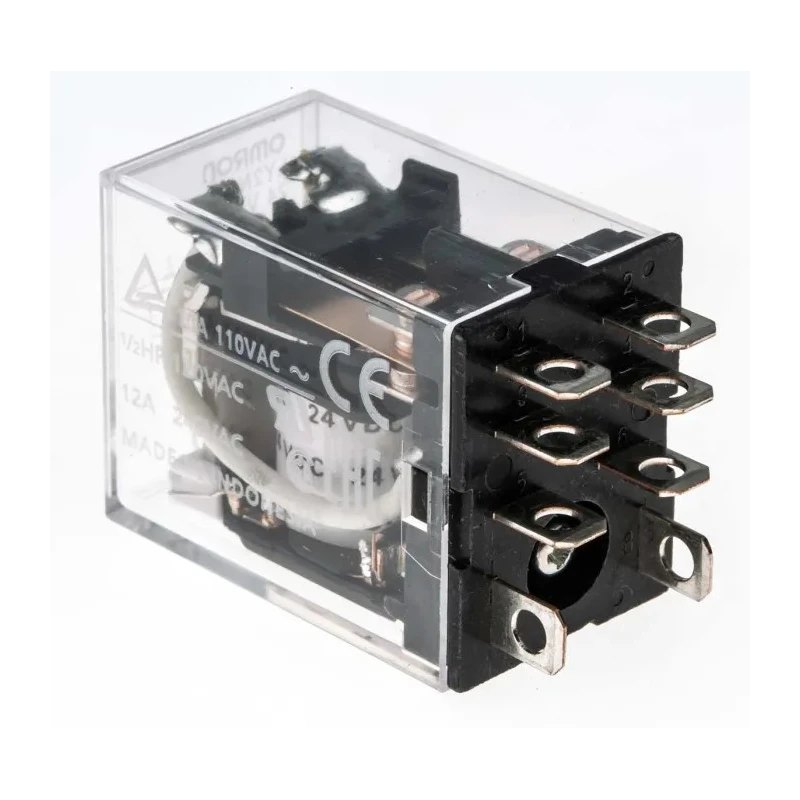

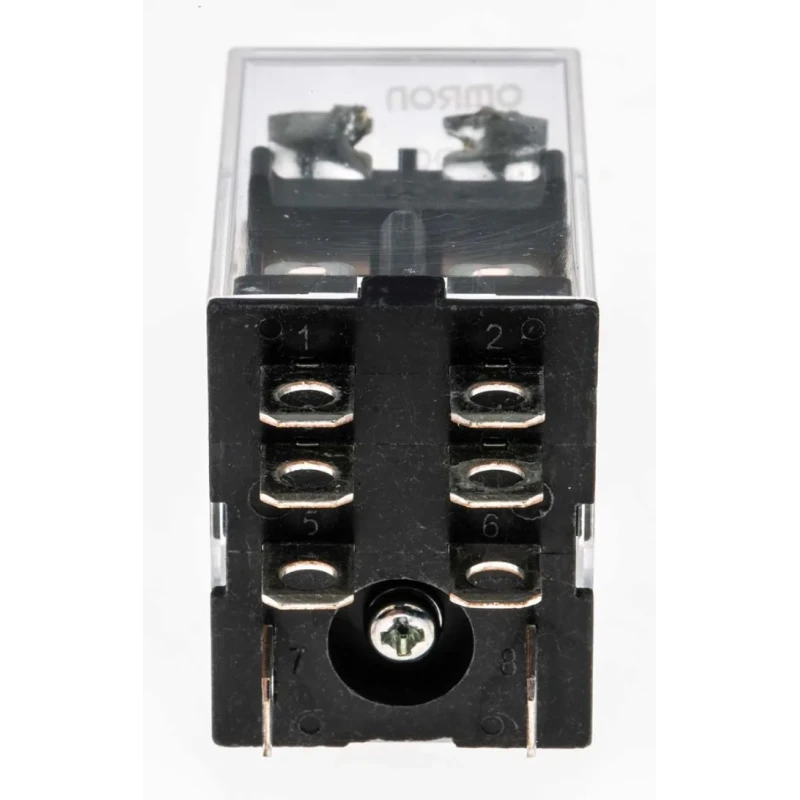

Omron Power Relay, 24V DC Coil Voltage, 10A Switching Current, DPDT Contact Configuration LY2N 24VDC
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Omron |
| Height | 28mm |
| Length | 21.5mm |
| Model | LY2N 24VDC |
| Width | 36mm |
| Contact Material | Silver Alloy |
| Series | LY2N |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -25°C |
| Switching Current | 10A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ |
| Standards/Approvals | CSA, CE |
| Coil Resistance | 650Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 900mW |
| Switching Power | 240W |
Key Features
- DPDT (Double Pole Double Throw) contact configuration ensures versatile switching capabilities.
- Rated coil voltage of 24V DC for efficient power operation.
- 10A switching current capacity suitable for high power needs.
- Silver alloy contacts deliver enhanced conductivity and durability.
- PCB pin terminals allow secure and easy installation.
- Operating temperature range from -25°C to 55°C supports diverse environments.
- Compact dimensions of 28mm height, 36mm width, and 21.5mm length for space-saving design.
- Complies with CSA and CE standards, ensuring safety and quality.
Product Description
Omron LY2N 24VDC power relay features a 24V DC coil voltage and a 10A switching current with a DPDT contact configuration designed for general purpose electrical and automation applications.
This relay offers reliable and efficient operation using silver alloy contacts that ensure excellent conductivity and long service life. Its PCB pin terminals provide easy and secure mounting on printed circuit boards.
Designed to operate within temperatures ranging from -25°C to 55°C, this relay suits a variety of industrial environments. Compact in size with dimensions of 28mm height, 36mm width, and 21.5mm length, it fits well into constrained spaces.
The relay is compliant with CSA and CE standards, reflecting its quality and safety for industrial use. Coil resistance at 650Ω and coil power consumption of 900mW ensure efficient electrical performance.
Common applications include automation control systems, power distribution and management within electrical systems, motor control in industrial machinery, and circuit protection in mechanical devices.
DPDT configuration enables versatile switching for multiple circuits. 24V DC coil voltage supports standard control voltages. 10A switching current rating allows handling of moderate electrical loads. Silver alloy contacts provide durability and low contact resistance.
PCB pin terminals ease installation and replacement. Wide operating temperature range expands usability in different environments. Compact size benefits space-constrained device designs. CSA and CE approvals attest to quality and compliance.
Efficient coil power usage reduces energy consumption. This power relay is an essential component for industrial manufacturing, HVAC control systems, laboratory equipment, and various electrical distribution tasks. Explore the Omron range on EnvMart for more quality relays and electrical components.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 24V DC, designed for efficient power operation.
This relay has a maximum switching current capacity of 10A, suitable for handling moderate electrical loads.
It features a DPDT (Double Pole Double Throw) contact configuration, allowing for versatile switching capabilities.
The operating temperature range for this model is from -25°C to 55°C, making it suitable for diverse environments.
This relay has compact dimensions of 28mm in height, 36mm in width, and 21.5mm in length.
The contacts are made of silver alloy, which enhances conductivity and durability.
It uses PCB pin terminals, allowing for secure and easy installation on printed circuit boards.
This relay complies with CSA and CE standards, ensuring safety and quality for industrial use.
The coil resistance for the Omron LY2N is 650Ω, contributing to its efficient electrical performance.
The coil power consumption is 900mW, which supports efficient operation.
Common applications include automation control systems, power distribution, motor control in industrial machinery, and circuit protection.
The switching power rating for this model is 240W, accommodating various electrical tasks.
