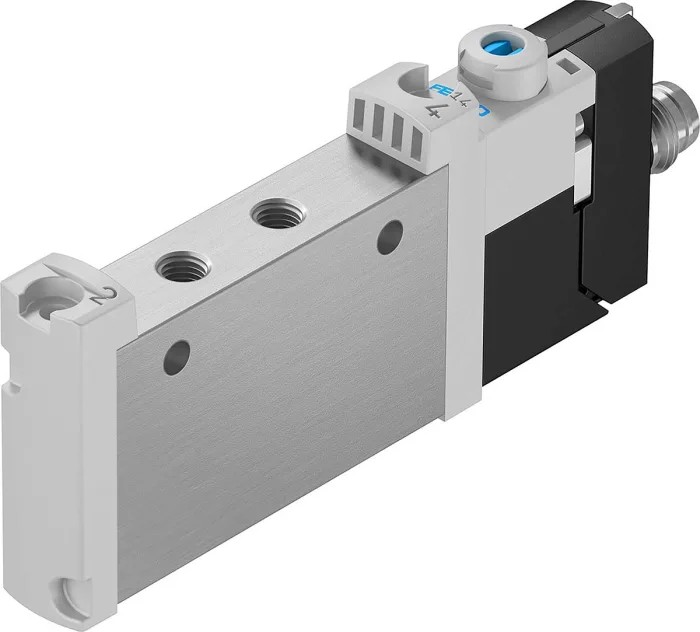

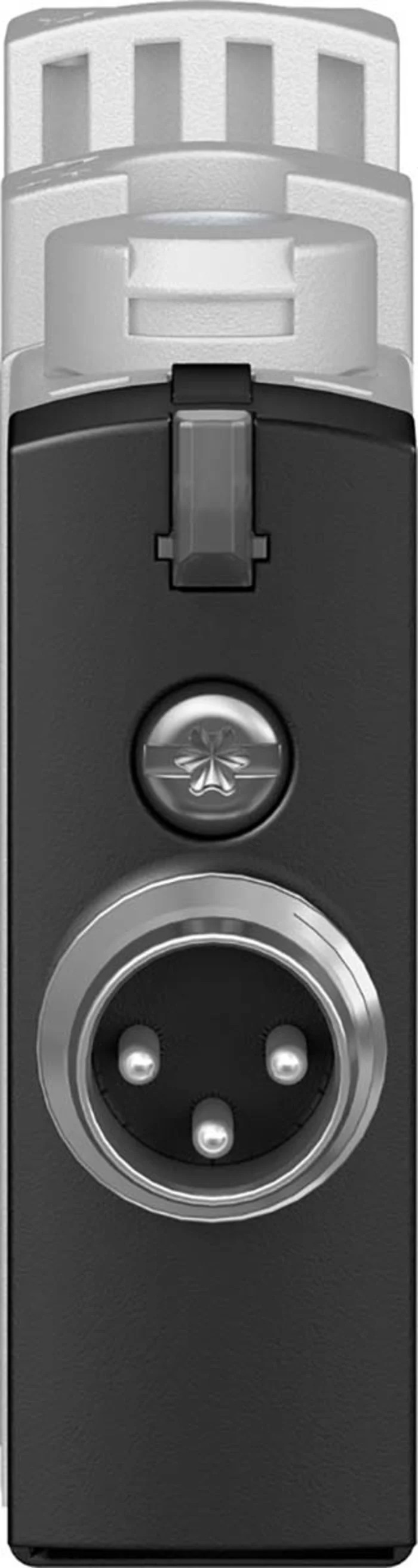

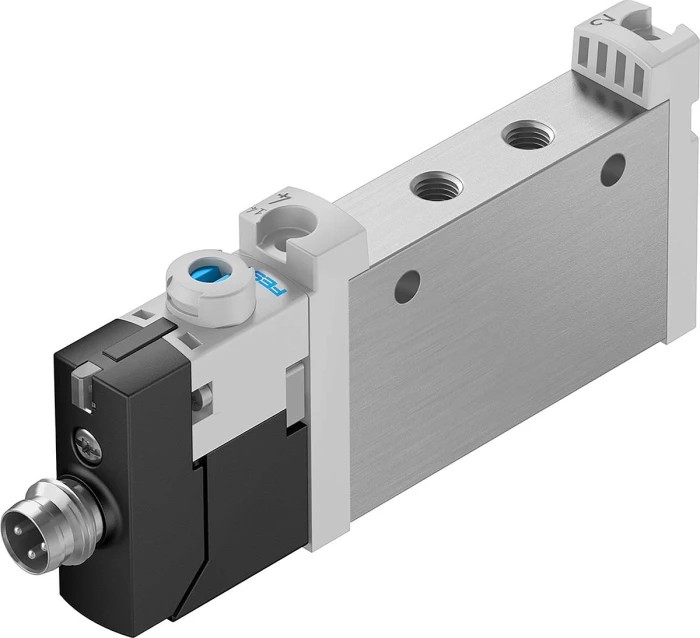

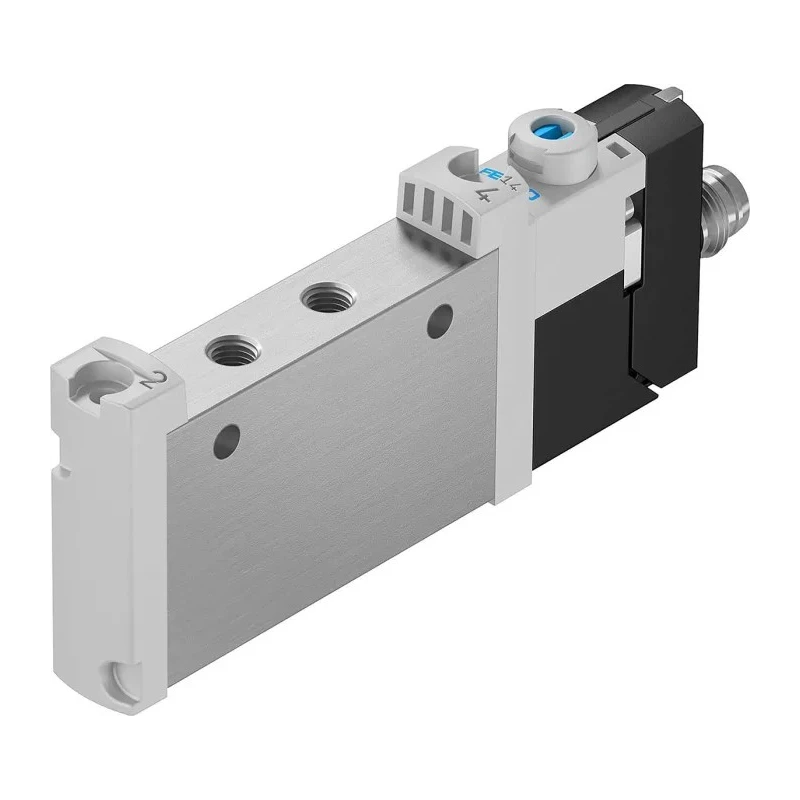

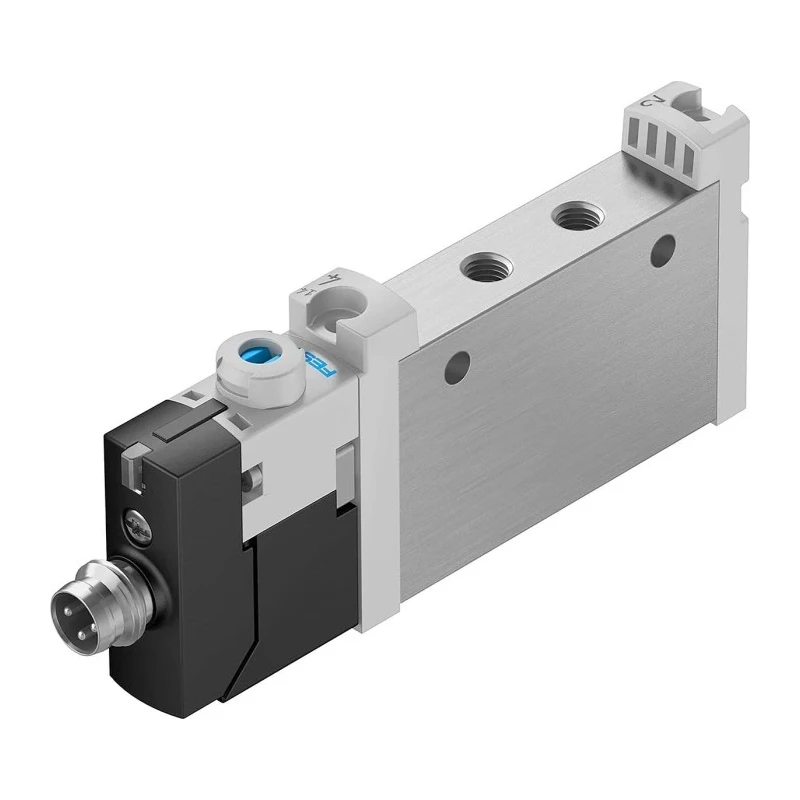

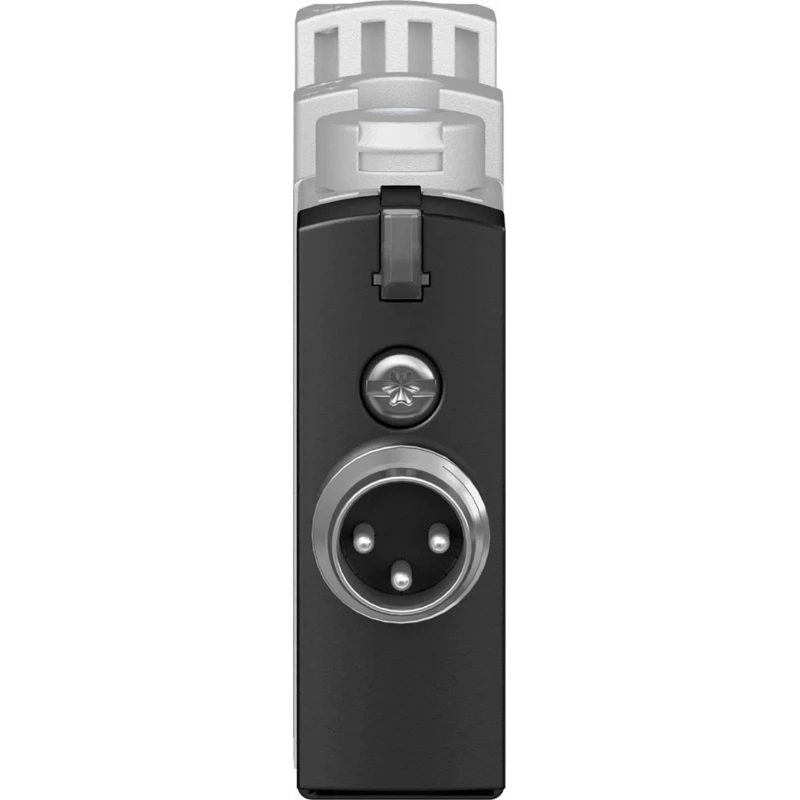

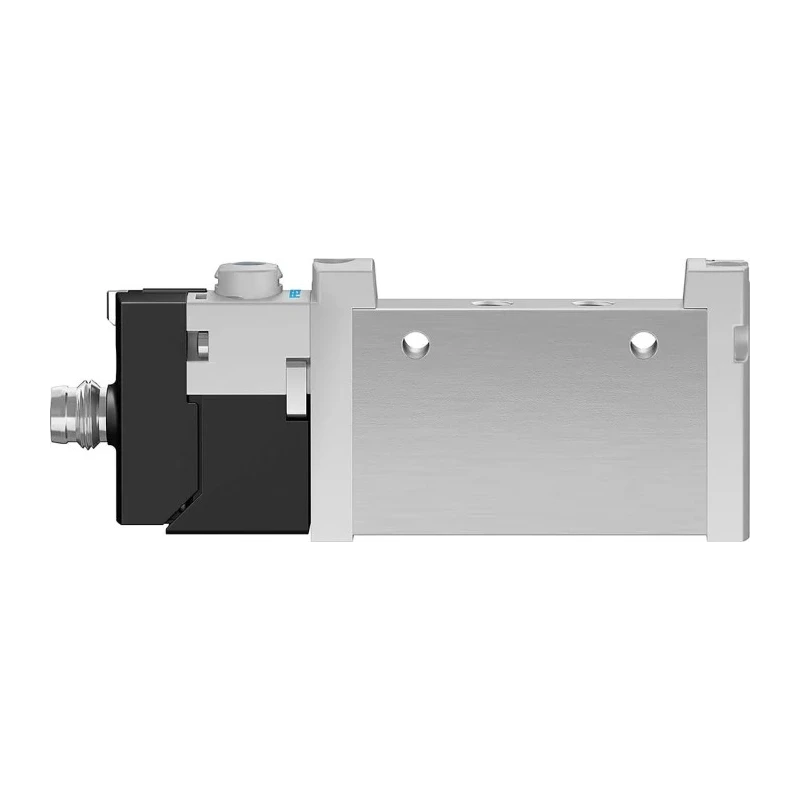

Festo 5/2 Way Monostable Solenoid Valve Aluminium Alloy Body 24V dc 1W VUVG-L10-M52-MT-M5-1R8L

Free Delivery in India | Lowest Global Shipping Charges

Festo 5/2 Way Monostable Solenoid Valve Aluminium Alloy Body 24V dc 1W VUVG-L10-M52-MT-M5-1R8L

Name: Festo 5/2 Way Monostable Solenoid Valve Aluminium Alloy Body 24V dc 1W VUVG-L10-M52-MT-M5-1R8L
Brand: FESTO
SKU: 251885
Price: 10380.44 INR
Availability: InStock



Category Pneumatic Solenoid Valve Brand FESTO Condition New

Specifications

Country of Origin	Germany
Voltage	24V dc
Brand	Festo
Body Material	Aluminium Alloy
Maximum Operating Pressure	8 bar
Model	VUVG-L10-M52-MT-M5-1R8L
Width	10mm
Mount Type	In-Line
Series	VUVG
Number Of Ports	5
Maximum Operating Temperature	60°C
Number of Positions	2
Port Size	M5
Seal Material	Nitrile Rubber (NBR)
Minimum Operating Temperature	-5°C
Actuation Type	Solenoid
Protection	IP 40/IP 65
Maximum Flow Rate	190L/min
Standards/Approvals	RoHS, cULus
Connection Thread Standard	Metric
Minimum Pilot Pressure	3bar
Valve Function	5/2
Electrical Connection Type	Manifold Block
Solenoid Type	Single
Port Gender	Male
Solenoid Power Consumption	1W

Key Features

Compact in-line design with M5 metric thread connections for versatile installation.
Operates at 24V DC with a solenoid power consumption of 1W for energy-efficient control.
Supports maximum operating pressure of 8 bar and maximum flow rate of 190 L/min.
Constructed from durable aluminium alloy with nitrile rubber (NBR) seals for reliability and longevity.
Functions as a 5/2 valve with 2 positions, suitable for pneumatic applications requiring directional control.
Wide operating temperature range from -5°C to 60°C ensuring performance in diverse environments.
Equipped with manifold block electrical connection type for easy system integration.
Protection rating IP40/IP65 for robust use in industrial settings.

Product Description

Festo VUVG-L10-M52-MT-M5-1R8L is a 5/2 way monostable solenoid valve designed for precise pneumatic control applications. Featuring an aluminium alloy body and a compact in-line configuration, this valve delivers robust performance with a maximum operating pressure of 8 bar and maximum flow rate of 190 L/min, powered by a 24V DC solenoid consuming just 1 watt.

This valve operates with a piston spool and sealing cartridge design to ensure efficient and leak-free switching. Its M5 metric thread enables straightforward connection to pneumatic tubing, with manifold block type electrical connection facilitating easy integration into pneumatic control systems.

Designed for industrial uses such as manufacturing automation, fluid power control, and pneumatic machinery, the valve operates reliably over a temperature range of -5°C to 60°C and is rated IP40/IP65 for protection against environmental factors. The built-in seal material is nitrile rubber (NBR), chosen for its durability and compatibility with compressed air systems.

The VUVG series solenoid valves from Festo are known for their compact design, high energy density, and versatility allowing substitution or combination with sub-base valves and manifold rails. The 5/2 valve function with 2 positions supports monostable operation and fast cycle times, reducing downtime in pneumatic circuits.

The valve complies with RoHS directives and carries the cULus approvals, ensuring it meets stringent international safety and environmental standards. Manufactured in Germany, it benefits from high quality and precision engineering.

Compact in-line valve design with M5 pneumatic connections. Operates at 24V DC with low power consumption of 1 W. Maximum operating pressure of 8 bar and flow rate of 190 L/min. Durable aluminium alloy body with nitrile rubber (NBR) seals.

Manifold block type electrical connection for easy installation. Wide temperature range of -5°C to 60°C with robust IP40/IP65 protection. Complies with RoHS and cULus standards for safety and environmental care. Suitable for pneumatic control in industrial automation, fluid power, and manufacturing.
