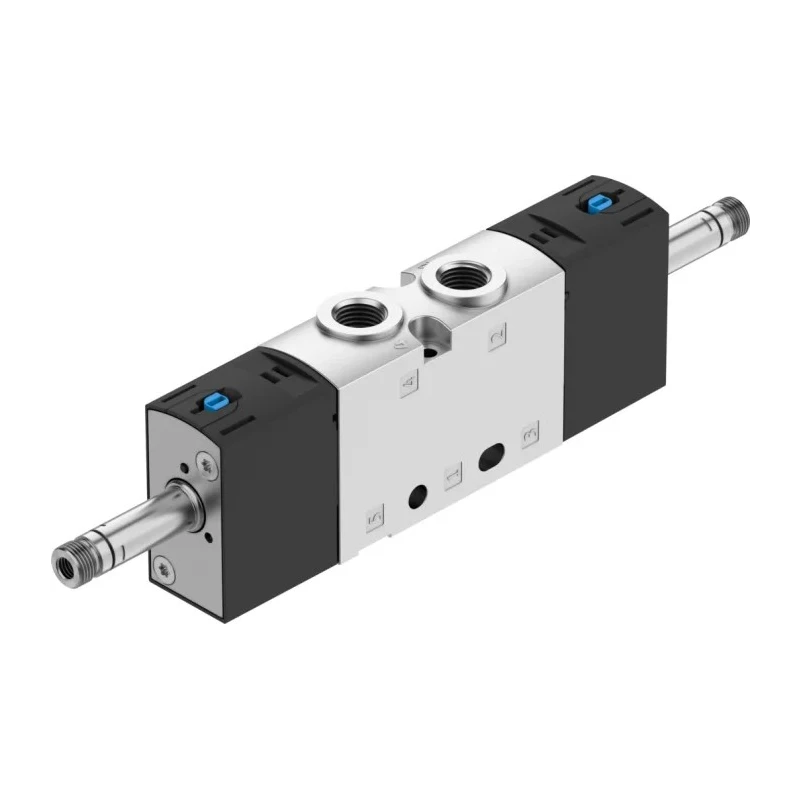

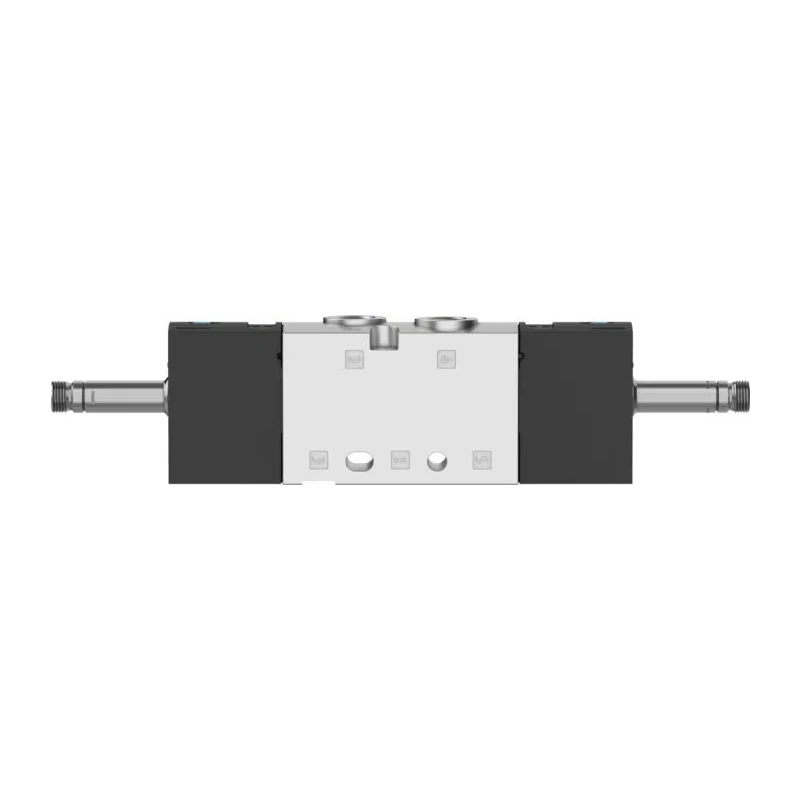

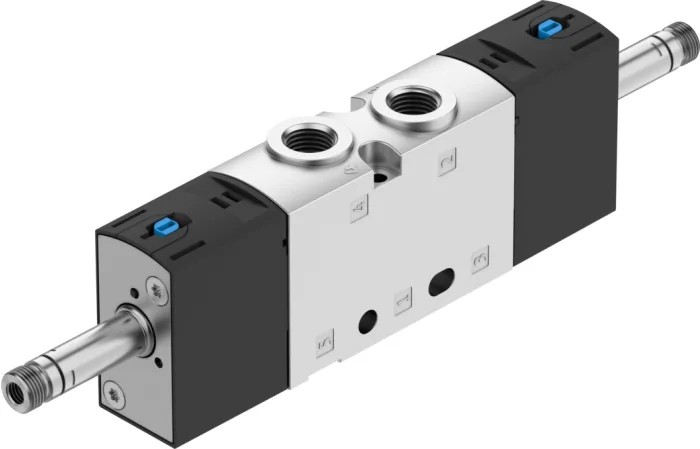

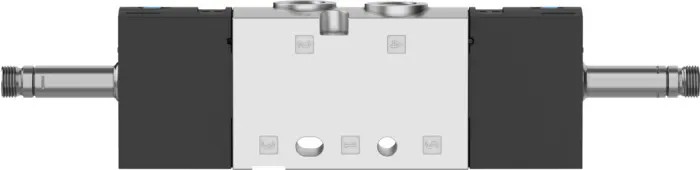

Festo Pneumatic Solenoid Valve 5 Port 5/2 Function Electric Actuation G 1/8 Port Size Die Cast VUVS-L20-B52-D-G18-F7

Free Delivery in India | Lowest Global Shipping Charges

Festo Pneumatic Solenoid Valve 5 Port 5/2 Function Electric Actuation G 1/8 Port Size Die Cast VUVS-L20-B52-D-G18-F7

Name: Festo Pneumatic Solenoid Valve 5 Port 5/2 Function Electric Actuation G 1/8 Port Size Die Cast VUVS-L20-B52-D-G18-F7
Brand: FESTO
SKU: 251869
Price: 10788.34 INR
Availability: InStock



Category Pneumatic Solenoid Valve Brand FESTO Condition New

Specifications

Country of Origin	China
Brand	Festo
Body Material	Die Cast Aluminium
Maximum Operating Pressure	10 bar
Model	VUVS-L20-B52-D-G18-F7
Width	21mm
Mount Type	In-Line
Series	VUVS
Number Of Ports	5
Maximum Operating Temperature	60°C
Number of Positions	2
Port Size	1/8 in
Seal Material	Nitrile Rubber (NBR)
Minimum Operating Temperature	-10°C
Actuation Type	Electric
Maximum Flow Rate	700L/min
Standards/Approvals	cULus, RoHS
Connection Thread Standard	G 1/8
Minimum Pilot Pressure	1.5bar
Valve Function	5/2
Solenoid Type	Single
Port Gender	Female
Festo Solenoid Pilot Valve - Pilot G 1/8 JMFH Series 8820Brand	Festo

Key Features

Features a 5-port, 5/2 valve function for versatile airflow control.
Incorporates electric actuation for rapid response and precise operation.
Durable die cast aluminium body ensures long-lasting performance and corrosion resistance.
Supports operating pressures from 1.5 bar to 10 bar for flexible application.
Designed with a G 1/8 female port connection and 21 mm width for compact installation.
Operates reliably within a temperature range of -10°C to +60°C.
Seal material made of nitrile rubber (NBR) provides effective sealing performance.
Suitable for manifold mounting to optimize space and piping layout.

Product Description

Festo VUVS-L20-B52-D-G18-F7 Pneumatic Solenoid Valve is a high-quality 5-port valve with 5/2 function and electric actuation, designed for industrial pneumatic automation applications. It features a G 1/8 female threaded port connection and a robust die cast aluminium body construction.

The valve operates effectively over a pressure range of 1.5 bar to 10 bar and temperature range from -10°C to +60°C, making it suitable for diverse and demanding industrial environments. The nitrile rubber (NBR) seals ensure reliable sealing to prevent leakage and maintain system integrity.

Its electric actuation provides fast and precise switching, enhancing system responsiveness in automated production lines. The compact 21 mm width and in-line mount type facilitate manifold mounting setup saving installation space and simplifying control system layouts.

The valve is certified with cULus and RoHS approvals, ensuring compliance with industry safety and environmental standards, suitable for use in a wide range of sectors including manufacturing, packaging, machinery automation, and assembly lines.

Features a 5-port, 5/2 valve function for versatile airflow control. Incorporates electric actuation for rapid response and precise operation. Durable die cast aluminium body ensures long-lasting resistance to harsh conditions.

Supports operating pressures from 1.5 bar to 10 bar for flexible automation tasks. Operates reliably within a temperature range of -10°C to +60°C. Seal material made of nitrile rubber (NBR) provides effective sealing. Suitable for manifold mounting to optimize space efficiency.

Certified with cULus and RoHS approvals for safety and environmental compliance. Ideal for pneumatic cylinder control, automated machinery, packaging, and assembly systems. Explore EnvMart's extensive catalog of pneumatic valves to find compatible accessories and complementary automation components.
