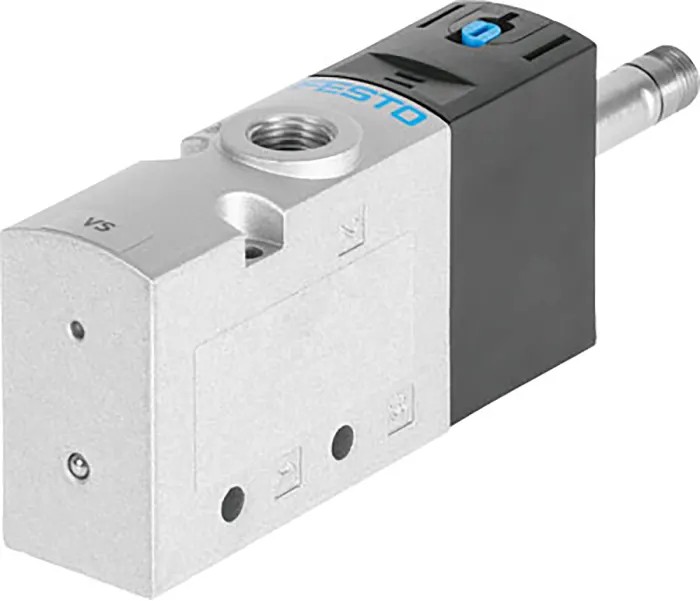

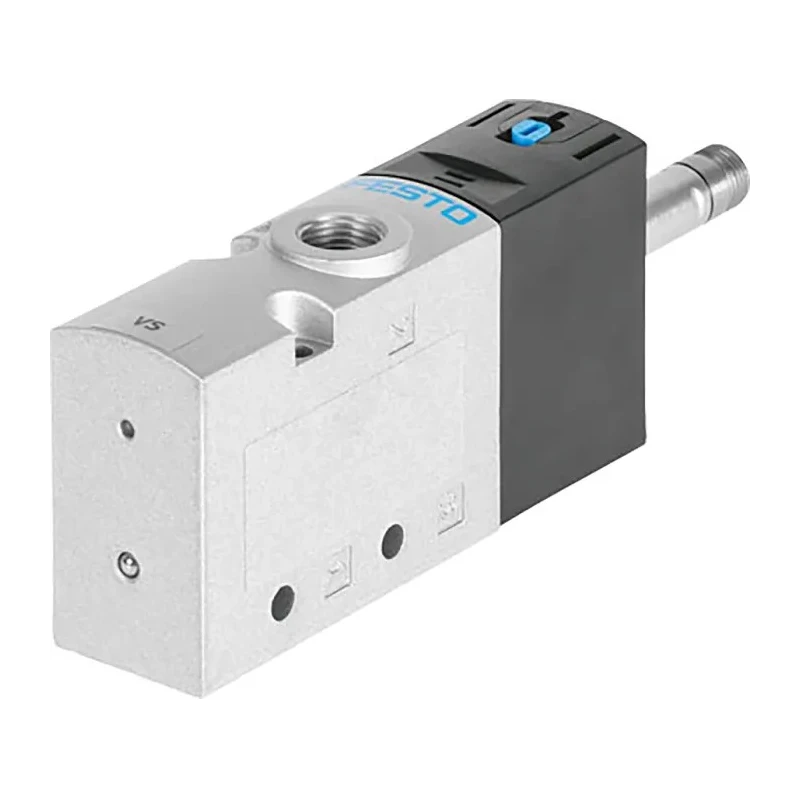

Festo Pneumatic Solenoid Valve 3/2 NC, 1/4 in Port Size, Single Solenoid, Die Cast Aluminium Body VUVS-L25-M32C-MD-G14-F8

Free Delivery in India | Lowest Global Shipping Charges

Festo Pneumatic Solenoid Valve 3/2 NC, 1/4 in Port Size, Single Solenoid, Die Cast Aluminium Body VUVS-L25-M32C-MD-G14-F8

Name: Festo Pneumatic Solenoid Valve 3/2 NC, 1/4 in Port Size, Single Solenoid, Die Cast Aluminium Body VUVS-L25-M32C-MD-G14-F8
Brand: FESTO
SKU: 251865
Price: 8745.68 INR
Availability: InStock



Category Pneumatic Solenoid Valve Brand FESTO Condition New

Specifications

Country of Origin	China
Brand	Festo
Body Material	Die Cast Aluminium
Maximum Operating Pressure	10 bar
Model	VUVS-L25-M32C-MD-G14-F8
Width	26.5mm
Mount Type	In-Line
Series	VUVS
Number Of Ports	3
Maximum Operating Temperature	60°C
Number of Positions	2
Port Size	1/4 in
Seal Material	Nitrile Rubber (NBR)
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid
Maximum Flow Rate	1000L/min
Standards/Approvals	cULus, RoHS
Connection Thread Standard	G
Minimum Pilot Pressure	2.5bar
Valve Function	3/2 NC
Solenoid Type	Single
Port Gender	Female

Key Features

This solenoid valve features a single solenoid actuation type for electrical control.
The valve body is made from die cast aluminium offering durability and corrosion resistance.
It supports a maximum operating pressure of 10 bar, suitable for a wide range of pneumatic systems.
Nitrile rubber (NBR) seals ensure leak-tightness and protect against dust and moisture ingress.
The valve can handle a maximum flow rate of 1000 L/min with quick switching times of 11 ms (on) and 40 ms (off).
Designed for in-line mounting with female port gender and standard G connection thread.
Suitable for use in water treatment plants, food production, and agricultural equipment.
The valve has a maximum operating temperature of 60°C and a minimum operating temperature of -10°C.

Product Description

Festo VUVS-L25-M32C-MD-G14-F8 Pneumatic Solenoid Valve is a 3/2 normally closed valve designed for precise and reliable control of compressed air flow in industrial pneumatic systems. It operates electrically via a single solenoid actuator and features a robust die cast aluminium body that withstands corrosion and mechanical impacts.

The valve supports a port size of 1/4 inch with standard G connection threading, allowing for broad compatibility with existing pneumatic networks. It can operate over a pressure range from 2.5 to 10 bar, handling a maximum flow rate of 1000 L/min, ensuring versatile application in both light-duty and mid-duty environments.

Nitrile rubber (NBR) seals prevent leaks and shield the internal mechanism from contaminants such as dust and moisture, enhancing valve longevity and performance. With a maximum operating temperature of 60°C and minimum of -10°C, this valve can function reliably in various industrial conditions.

Switching times are rapid with 11 milliseconds for energizing and 40 milliseconds for de-energizing, providing effective response to control signals. The monostable valve design means it returns to its default closed position when de-energized, ideal for applications requiring intermittent air flow regulation.

Single solenoid actuation with fast response switching. Sturdy die cast aluminium body resistant to corrosion and impact. Standard G1/4 port size with female connections for compatibility. Maximum operating pressure up to 10 bar for flexible usage.

Nitrile rubber seals enhance sealing and protection against pollutants. Compact and lightweight design optimized for mounting rail installations. Wide temperature range from -10°C to 60°C for versatile industrial environments.

Applications include water treatment, food production, and agricultural machinery.

Overall, the Festo VUVS-L25-M32C-MD-G14-F8 valve is a dependable, efficient component in pneumatic control systems, suited for demanding industrial, agricultural, and commercial environments that require accurate airflow control.

Explore more pneumatic valves and solenoid valves to find components that match your specifications and operational needs with EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum operating pressure of this solenoid valve is 10 bar.

This model can handle a maximum flow rate of 1000 L/min.

The valve features a port size of 1/4 inch with female connections.

The valve body is made from die cast aluminium, and it features nitrile rubber (NBR) seals.

It can operate within a temperature range of -10°C to 60°C.

This valve operates with a single solenoid actuation type, which means it is electrically controlled and returns to its default closed position when de-energized.

The valve has quick switching times of 11 milliseconds for on and 40 milliseconds for off.

The valve uses a standard G connection thread for compatibility with existing pneumatic systems.

The minimum pilot pressure for this valve is 2.5 bar.

This valve is suitable for applications in water treatment plants, food production, and agricultural equipment.

This valve is compliant with cULus and RoHS standards.

It is designed for in-line mounting, making it easy to integrate into existing systems.
