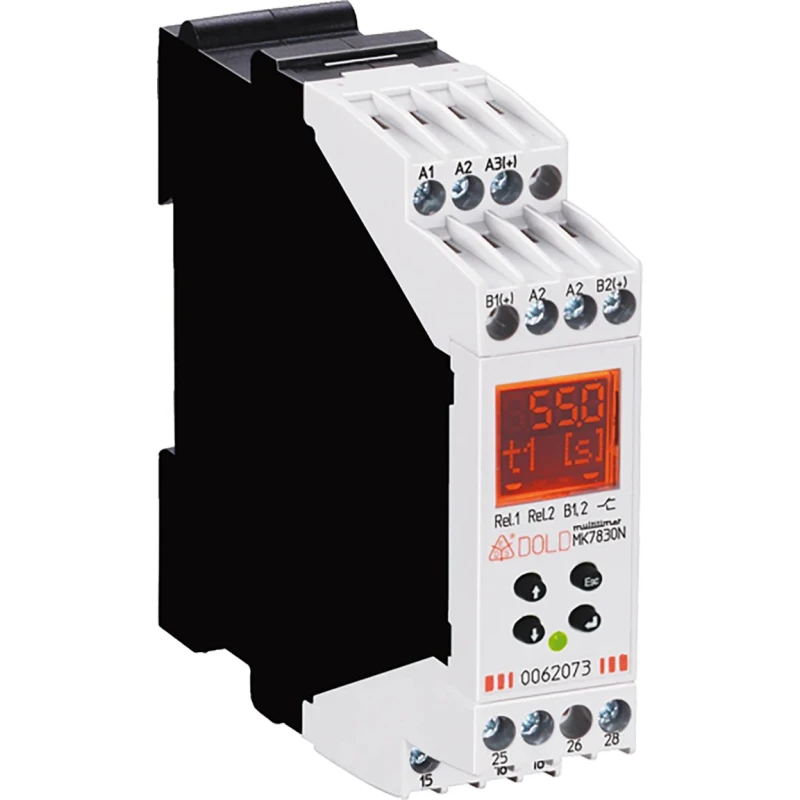

Dold Monitoring Relay DPDT DIN Rail Mount MK7830N.82PS AC/DC24V + AC230V 0.02s to MK7830N.82PS AC/DC24V + AC230V 0,02s-9999h
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Dold |
| Height | 104mm |
| Length | 99mm |
| Model | MK7830N.82PS AC/DC24V + AC230V 0,02s-9999h |
| IP Rating | IP40, IP20 |
| Width | 22.5mm |
| Mount Type | DIN Rail |
| Series | MK7830N |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Time Delay | 0.02 s to 9999h |
| Minimum Operating Temperature | +55°C |
| Terminal type | Screw |
| Standards/Approvals | CE, RoHS |
Key Features
- Features 2 changeover contacts with DPDT configuration.
- Mounts easily on DIN Rail for compact installation.
- Time delay adjustable from 0.02 seconds up to 9999 hours.
- Operates across AC/DC 24V and AC230V voltages.
- LED indicators available for operational status monitoring.
- Equipped with screw terminal type for secure wiring.
- Robust IP40 and IP20 rated enclosure ensures protection.
- Compact size with dimensions 99mm length, 104mm height, and 22.5mm width.
Product Description
Dold MK7830N.82PS is a high-precision Monitoring Relay featuring DPDT contact configuration and DIN Rail mounting capability. It supports AC/DC 24V as well as AC230V supply voltages and offers a wide time delay range from 0.02 seconds to 9999 hours, making it adaptable for diverse timing applications.
This multifunction timer allows individual adjustment of functions for each output relay, including off, instantaneous, on-delay, fleeting on make, delayed pulse, cyclic timer, off-delay, pulse forming, and fleeting on break functions.
The product is housed in a robust enclosure with IP40 and IP20 protection ratings, ensuring durability and operational reliability in industrial environments. It is equipped with screw terminals to provide secure electrical connections and LED indicators for easy status visualization.
With compact dimensions (99mm length, 104mm height, 22.5mm width), the relay fits efficiently within control panels and DIN Rail assemblies. This relay is CE and RoHS compliant and is suitable for use in automation, manufacturing, HVAC control systems, and electrical panel monitoring.
Its design supports easy device exchange via pluggable terminal blocks, compatible with screw or cage clamp terminals. The Dold MK7830N.82PS relay is manufactured in Germany, ensuring high-quality engineering standards.
Industrial applications include automotive control, manufacturing process monitoring, and building automation. This relay provides reliable timing and monitoring functions necessary for advanced industrial electrical control systems.
Features 2 changeover contacts with DPDT configuration. Mounts easily on DIN Rail for compact installation. Time delay adjustable from 0.02 seconds up to 9999 hours. Operates across AC/DC 24V and AC230V voltages. LED indicators available for operational status monitoring.
Equipped with screw terminal type for secure wiring. Robust IP40 and IP20 rated enclosure ensures protection. Compact size with dimensions 99mm length, 104mm height, and 22.5mm width. Suitable for industrial automation, electrical control panels, and monitoring systems.
Explore Dold monitoring and control relays within EnvMart's comprehensive product catalog for reliable and quality electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The time delay of this model is adjustable from 0.02 seconds up to 9999 hours, allowing for versatile timing applications.
It has compact dimensions of 99mm in length, 104mm in height, and 22.5mm in width, making it suitable for DIN Rail installations.
This model features a DPDT (Double Pole Double Throw) contact configuration, which allows for versatile switching capabilities.
It operates across AC/DC 24V and AC230V supply voltages, making it adaptable for various electrical systems.
The relay has an IP40 and IP20 rating, providing protection against solid objects and limited moisture ingress.
It is designed for easy mounting on DIN Rail, facilitating compact installation within control panels.
This model is equipped with screw terminals, ensuring secure wiring connections for reliable operation.
The maximum operating temperature is 55°C, and the minimum operating temperature is +55°C, indicating its suitability for various environments.
It is compliant with CE and RoHS standards, ensuring it meets essential safety and environmental regulations.
This relay is suitable for use in automation, manufacturing, HVAC control systems, and electrical panel monitoring.
It includes LED indicators that provide easy visualization of operational status, enhancing monitoring capabilities.
This relay is manufactured in Germany, ensuring adherence to high engineering standards.
