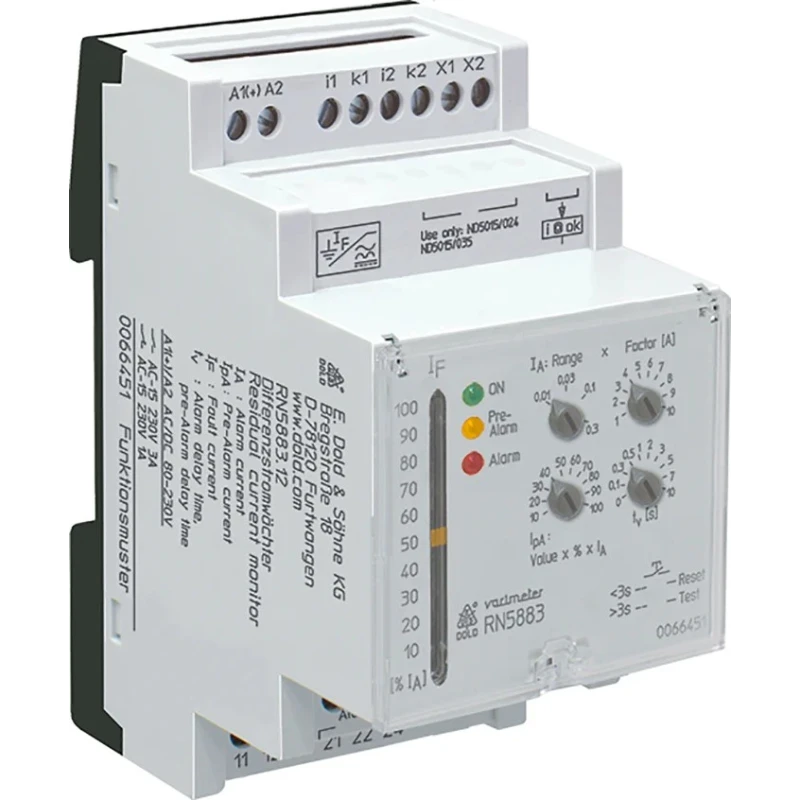

Dold Monitoring Relay 2 Phase DPDT DIN Rail 10mA to 3A 230 V AC RN5883.12/61 AC/DC24-80V 10-3000mA 0-10s

The Dold RN5883.12/61 AC/DC24-80V 10-3000mA 0-10s Monitoring Relay is designed for precise detection of residual currents in 2-phase electrical installations, providing reliable protection and system monitoring. Featuring a double pole double throw (DPDT) contact configuration and DIN rail mounting, it is suitable for use in both AC and DC systems with supply voltages up to 230 V AC and 24-80 V AC/DC.

This relay effectively detects earth faults in grounded voltage systems with a minimum sensing current range of 10 mA up to a maximum of 3 A. The device includes an adjustable switching delay from 0 to 10 seconds, allowing it to be tailored to specific application needs.

Safety and operational convenience are enhanced by manual reset capabilities combined with alarm and pre-warning signals. LED indicators provide clear visual feedback on operation status, fault pre-warning, and alarms. Additionally, the relay includes a test function and an LED chain to indicate fault currents, with optional analogue output and broken wire detection features.

Compact and robust, this monitoring relay has a width of 52.5 mm, height of 90 mm, and length of 71 mm, with screw terminals that ensure secure and reliable connections. The device is protected against tampering by a sealable transparent cover over the setting switches.

Compliance with international standards including RoHS, cUL, CCC, CE, and UL ensures the RN5883.12/61 meets stringent safety and environmental requirements. This product is ideal for preventive fire and system protection in industrial, manufacturing, electrical automation, and commercial applications where early fault detection enhances plant availability and safety.

The product is manufactured in Germany, reflecting high-quality engineering and durability. Explore the wide range of Monitoring Relays at EnvMart for your specialized industrial and electrical automation needs. Designed to detect earth faults in grounded voltage systems.

Adjustable switching delay from 0 to 10 seconds. Manual reset with alarm and pre-warning functions. LED indicators for operation, pre-alarm, and alarm states. Suitable for AC/DC supply voltages from 24 to 80 V and current sensing from 10 mA to 3 A.

Compact DIN rail mounting with secure screw terminal connections. Seal able transparent cover to prevent manipulation of settings. Meets international safety and environmental standards (RoHS, cUL, CCC, CE, UL).
